Gigabyte UD750GM PG5 v2 750W ATX PSU Power Supply 80+ Gold >90% Black Flat Cables Single +12V Rail Japanese >100K Hrs

Gigabyte UD750GM PG5 750W ATX PSU Power Supply 80+ Gold >90% Black Flat Cables Single +12V Rail Japanese >100K Hrs (NEW)


KEY FEATURE
Ultra Durable
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified

SPECIFICATIONS

Model
GP-UD750GM PG5

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
12-6A

Input Frequency
60-50 Hz

Output Capacity
750W

Dimension
150 x 140 x 86mm

Fan Type
120mm Hydraulic Bearing(HYB)fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP


Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat, All black

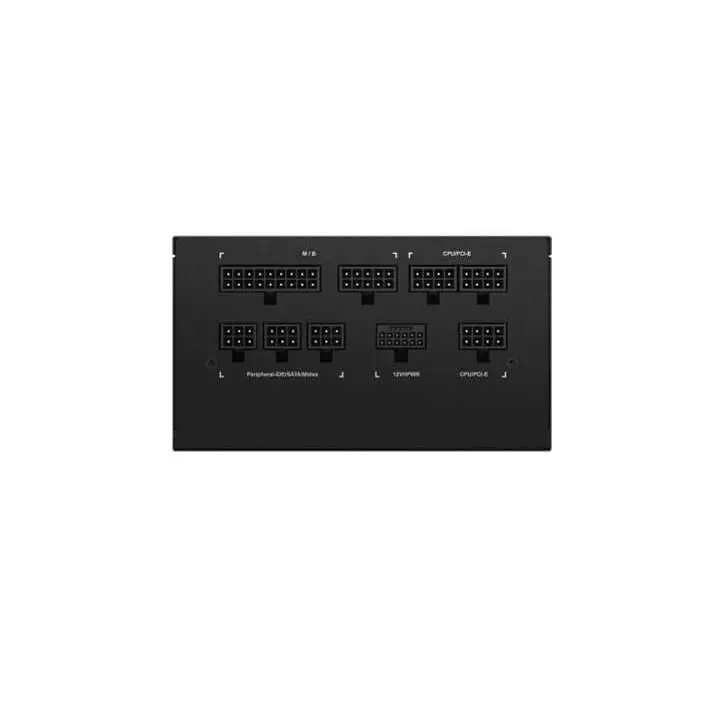

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
