Description

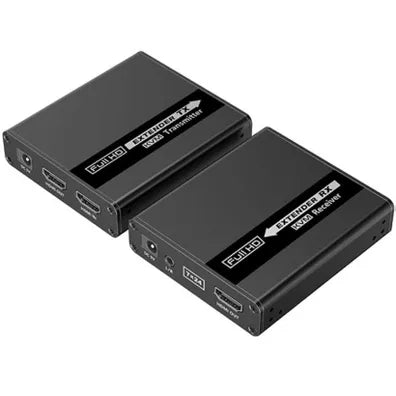

The KVM Console Extender Over Cat6/6A 70m with HDMI® Loop-Through is an advanced solution for transmitting 1080p AV signals and USB data for keyboard and mouse control over long distances. By using a single CAT6 or higher cable, this extender overcomes standard HDMI distance limitations, providing a stable and cost-effective setup for traffic control centres, medical institutions, and professional video editing suites. It features automatic parameter adjustment to match different network cables, ensuring the best possible display performance with zero latency.

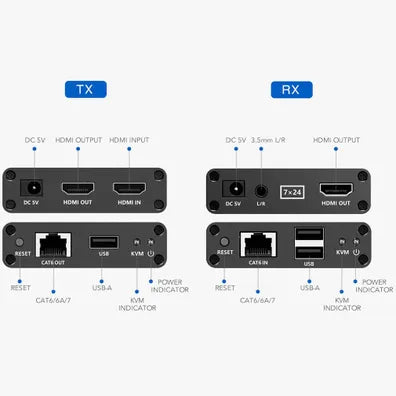

This versatile system supports remote control for PCs, KVMs, and servers, making it an essential tool for real-time monitoring and management in advertising, conference systems, and home theatres. The transmitter unit includes an HDMI loop-out port, allowing for a local display alongside the remote receiver. Integrated 3.5mm L/R jacks provide convenient audio output for headsets or speakers at the receiver end, enhancing the user experience in various environments.
Designed for reliability in demanding applications, the units are equipped with built-in lightning, surge, and ESD protection to safeguard your hardware against electrical interference. The point-to-point extender design ensures a direct, high-quality connection up to 70m. With EDID passthrough support, the system maintains consistent communication between the source and the display, ensuring the correct resolution and settings are always applied for a seamless plug-and-play experience.
IMPORTANT INSTALLATION NOTES
- Power Requirement: This system requires a power supply at both the Transmitter and Receiver ends. Ensure power outlets are available at both locations.
- Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
- For maximum signal stability: and 4K performance approaching the max rated distance, we strongly recommend using
