UBIQUITI  |  SKU: UNVR

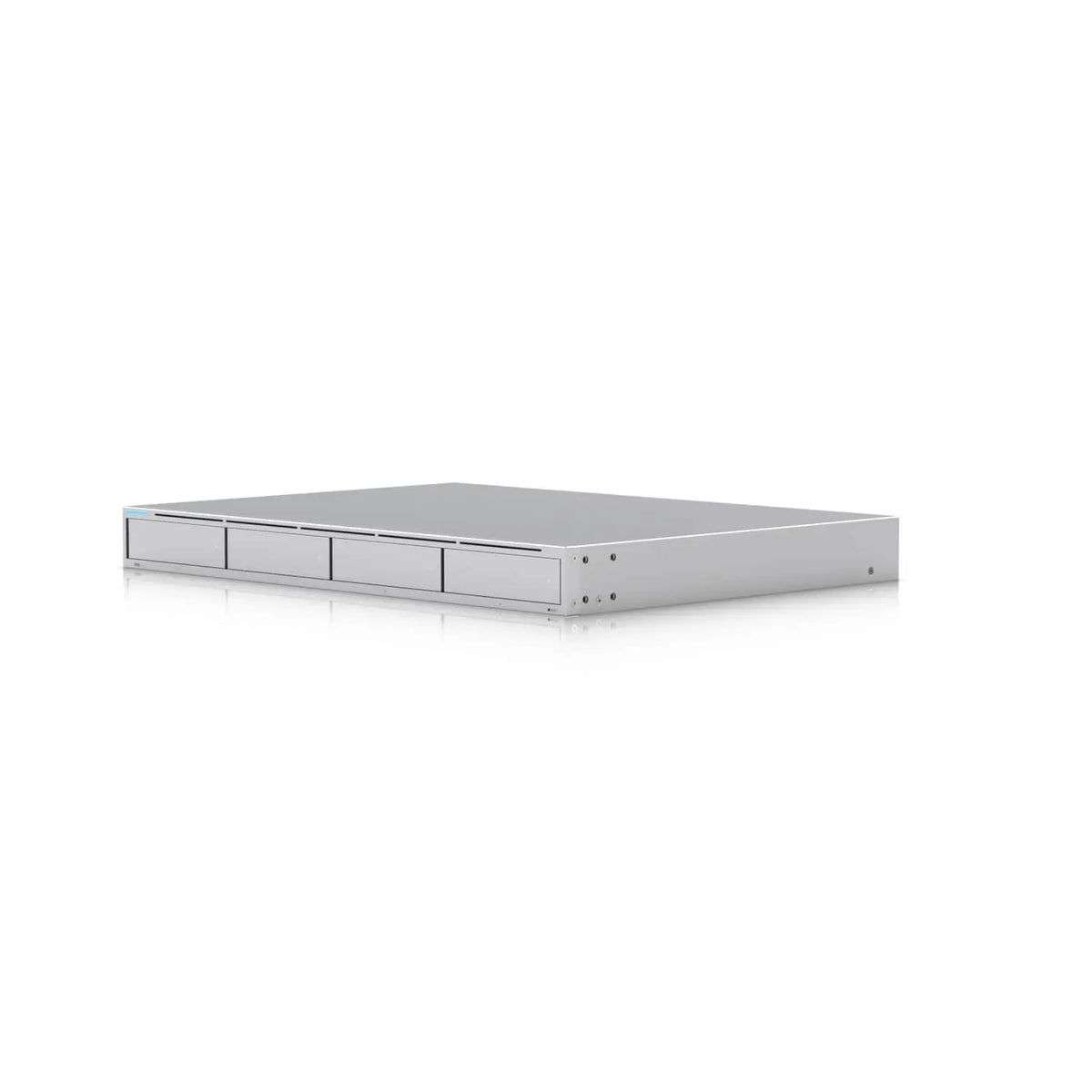

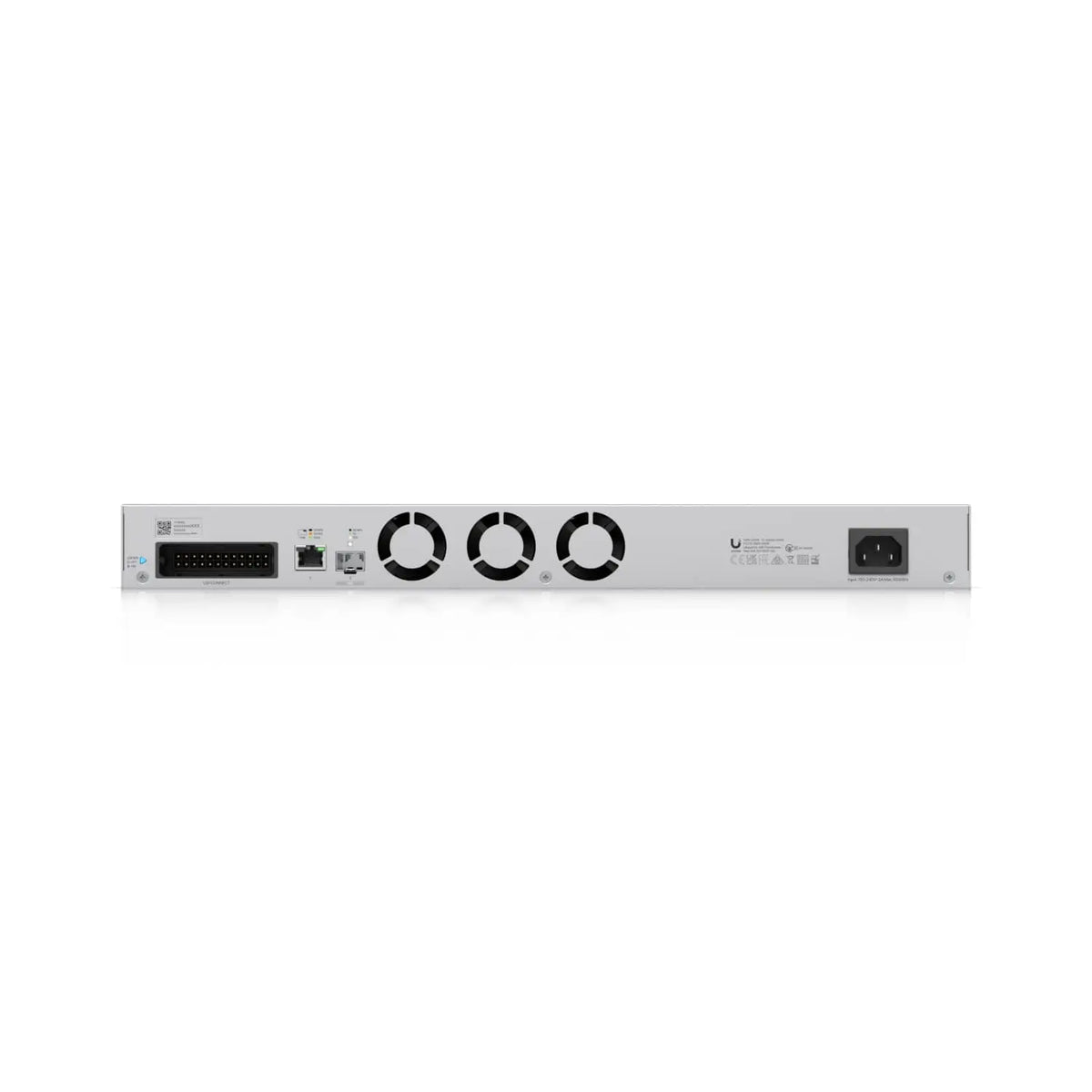

Ubiquiti UniFi Protect Network Video Recorder, 4x 3.5" HD Bays, Up to 30 Days of Storage, Unifi Protect Pre Installed, RPS Compatible

$699.00

Pickup available at PC MART

Usually ready in 24 hours
Features:
  • (4) 2.5"/3.5" HDD bays
  • (1) 10G SFP+ port
  • (1) GbE RJ45 port
  • 1U-sized, rack-mountable console (kit included)
  • Pre-installed UniFi Protect application
  • Automated RAID 1 or RAID 5 HDD configuration
  • Connect a SmartPower Redundant Power System to create an uninterruptible network
  • Allows you to easily scale your deployment by connecting additional UniFi devices
Mechanical
Dimensions

442.4 x 325 x 43.7 mm

Weight

Without Rackmount Brackets: 5.11 kg
With Rackmount Brackets: 5.20 kg

Enclosure Material

SGCC Steel

Hardware
Processor

Quad-Core ARM® Cortex®-A57 at 1.7 GHz

System Memory

4 GB

On-Board Flash Storage

8 GB

Max. Power Consumption

100W

Max. Power Budget for Drives

75W

Power Method

(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 10.43A

Power Supply

AC/DC, Internal, 120W

Networking Interfaces

(1) 10/100/1000 Mbps RJ45 Ethernet
(1) 1/10 Gbps SFP+ Ethernet

Management Interface

Ethernet In-Band Management

ESD/EMP Protection

Air: ± 12kV, Contact: ± 8kV

Operating Temperature

-5 to 40° C

Operating Humidity

5 - 95% Noncondensing

Certifications

FCC, CE, IC

LEDs
System

(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue/White: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

Ethernet

Green: 1000 Mbps, Amber: 10/100 Mbps

SFP+

White: 10 Gbps, Green: 1 Gbps

HDD

Amber: Disk Error, White: Disk Detected

RPS

Blue: Ready
