Description
Features:

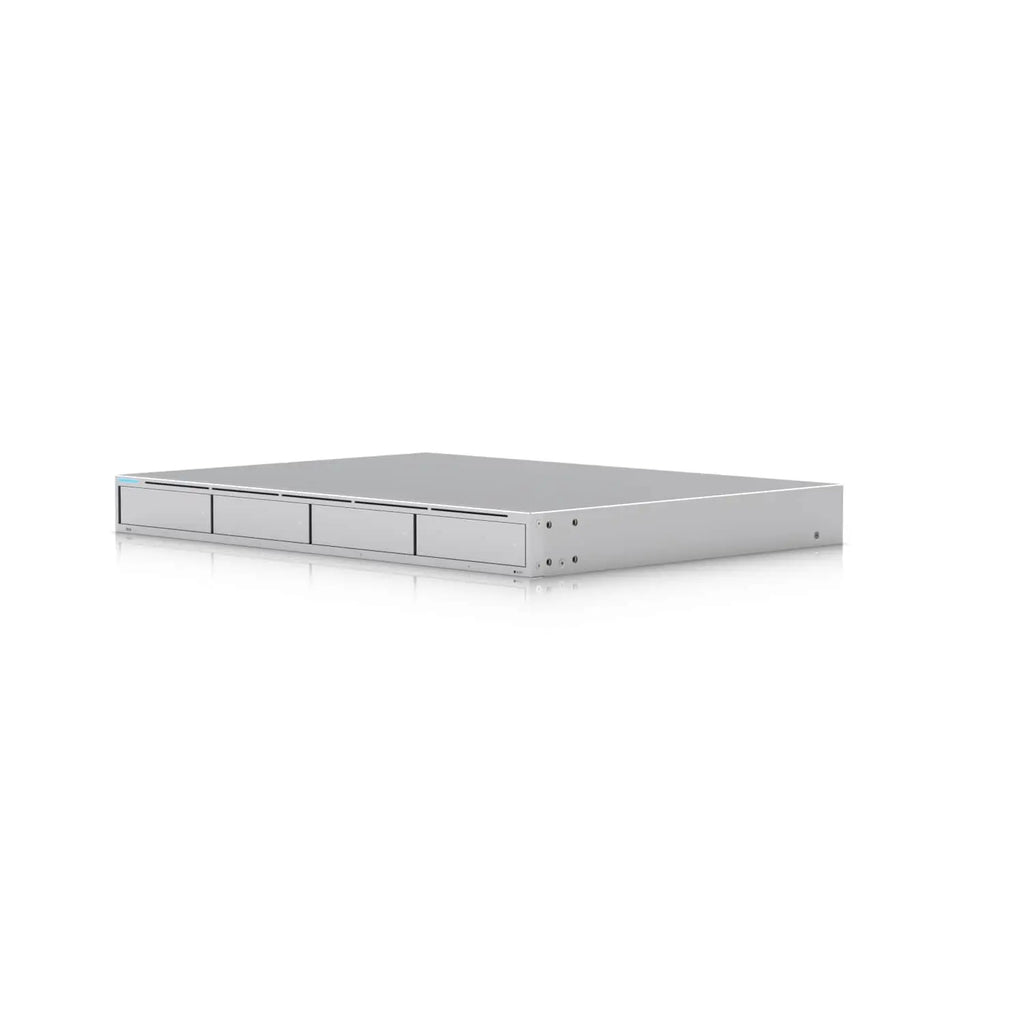

- (4) 2.5"/3.5" HDD bays
- (1) 10G SFP+ port
- (1) GbE RJ45 port
- 1U-sized, rack-mountable console (kit included)
- Pre-installed UniFi Protect application
- Automated RAID 1 or RAID 5 HDD configuration
- Connect a SmartPower Redundant Power System to create an uninterruptible network
- Allows you to easily scale your deployment by connecting additional UniFi devices
Mechanical
Dimensions
442.4 x 325 x 43.7 mm
Weight
Without Rackmount Brackets: 5.11 kg
With Rackmount Brackets: 5.20 kg
Enclosure Material
SGCC Steel
Hardware
Processor
Quad-Core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-Board Flash Storage
8 GB
Max. Power Consumption
100W
Max. Power Budget for Drives
75W
Power Method
(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 10.43A
Power Supply
AC/DC, Internal, 120W
Networking Interfaces
(1) 10/100/1000 Mbps RJ45 Ethernet
(1) 1/10 Gbps SFP+ Ethernet
Management Interface
Ethernet In-Band Management
ESD/EMP Protection
Air: ± 12kV, Contact: ± 8kV
Operating Temperature
-5 to 40° C
Operating Humidity
5 - 95% Noncondensing
Certifications
FCC, CE, IC
LEDs
System
(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue/White: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
Green: 1000 Mbps, Amber: 10/100 Mbps
SFP+
White: 10 Gbps, Green: 1 Gbps
HDD
Amber: Disk Error, White: Disk Detected
RPS
Blue: Ready
