UBIQUITI | SKU:
UDB-Switch

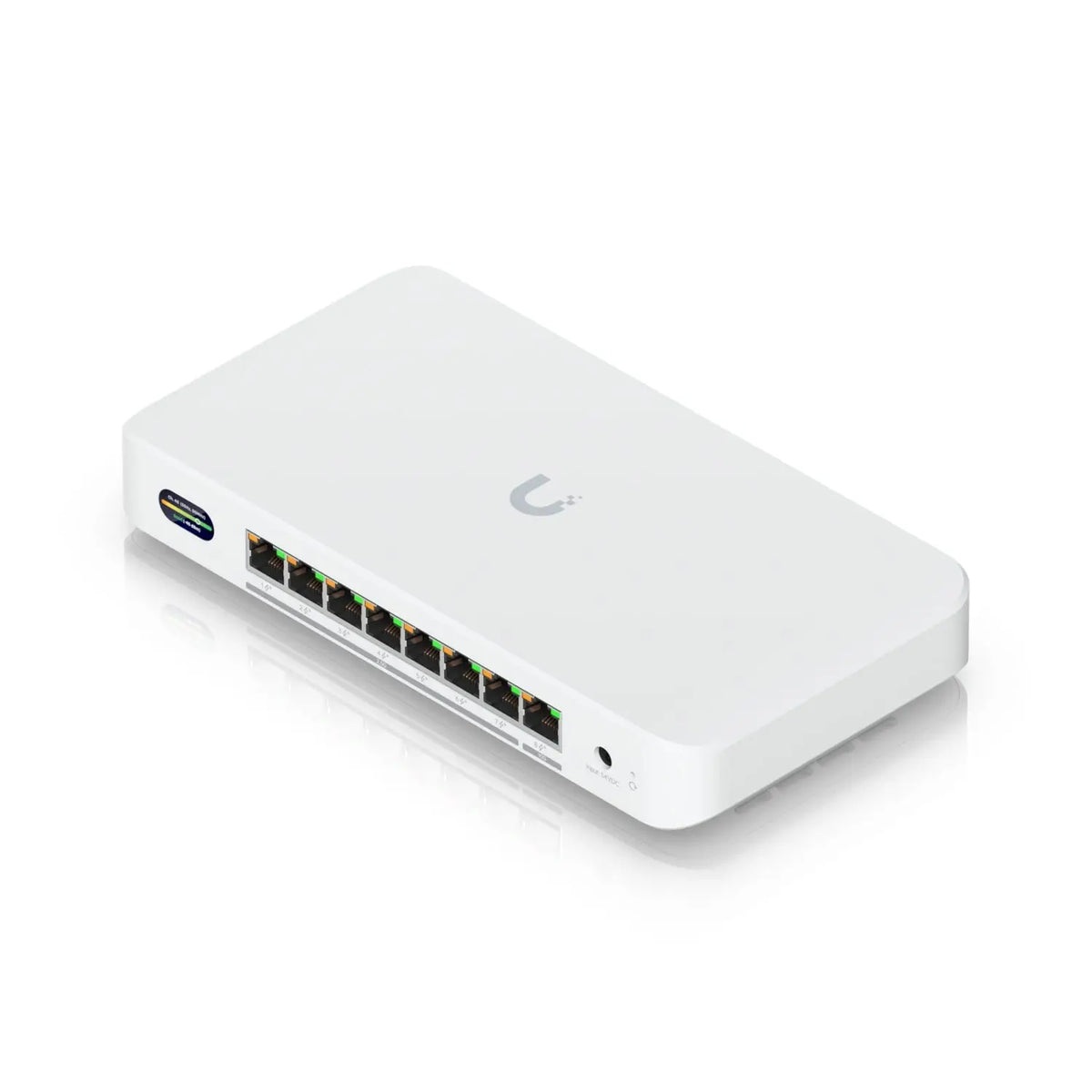

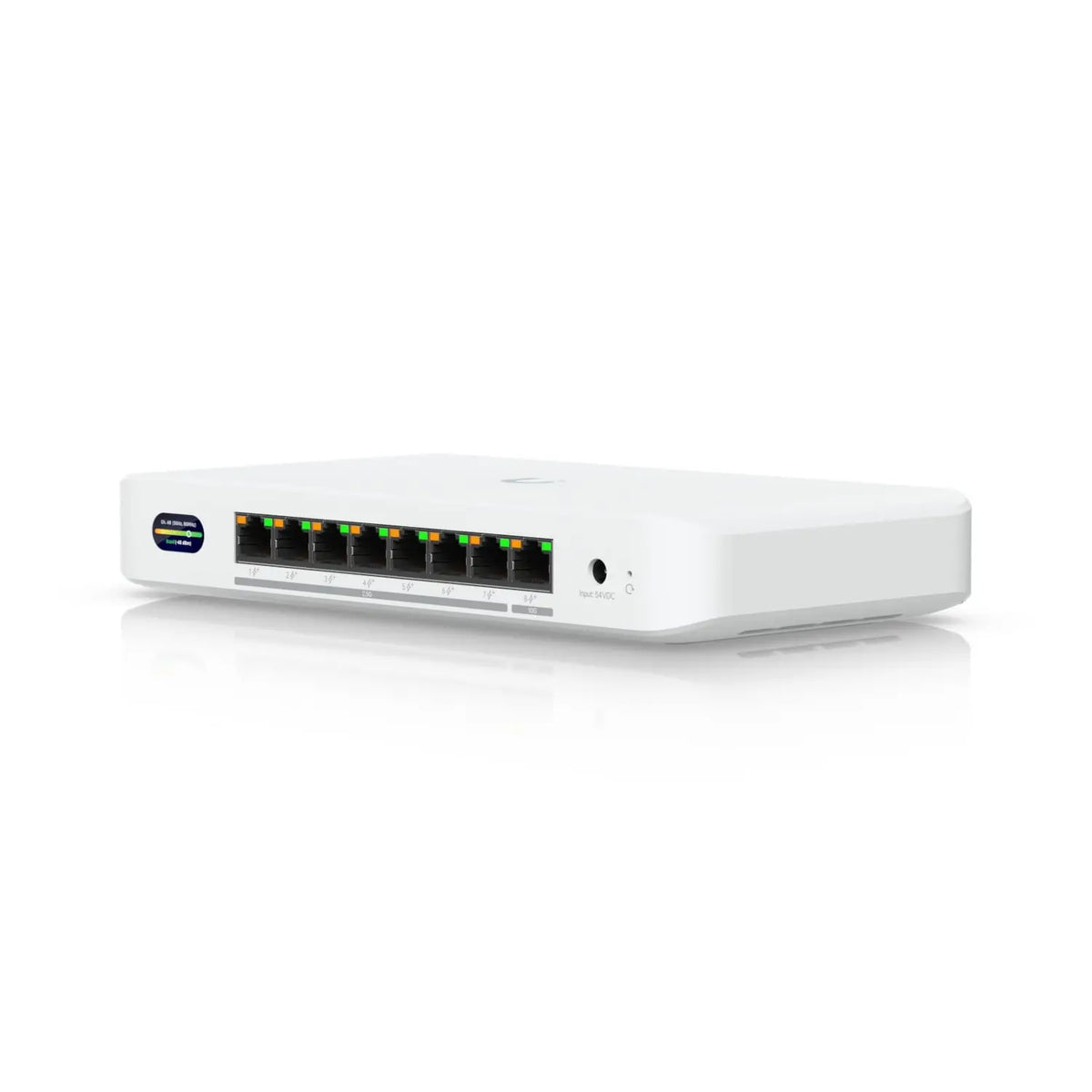

Ubiquiti Device Bridge Switch, Compact PoE+ Switch* (1) 10 GbE Port, (7) 2.5 GbE Ports, 6 GHz, WiFi 7 Integration, Seamless, High-Capacity,UniFi WiFi
Regular price
$659.00
Unit price
Ubiquiti Device Bridge Switch, Compact PoE+ Switch* (1) 10 GbE Port, (7) 2.5 GbE Ports, 6 GHz, WiFi 7 Integration, Seamless, High-Capacity,UniFi WiFi is backordered and will ship as soon as it is back in stock.
Pickup available at PC MART
Usually ready in 24 hours
Ubiquiti Device Bridge Switch, Compact PoE+ Switch* (1) 10 GbE Port...
Regular price
$659.00
Unit price
Ubiquiti Device Bridge Switch, Compact PoE+ Switch* (1) 10 GbE Port, (7) 2.5 GbE Ports, 6 GHz, WiFi 7 Integration, Seamless, High-Capacity,UniFi WiFi is backordered and will ship as soon as it is back in stock.
Deployment & Features
Overview
Dimensions
212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
WiFi Standard
WiFi 7
Spatial Streams
4
Mounting Locations
Desktop, wall
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Performance
MIMO
6 GHz: 2 x 2
5 GHz: 2 x 2
5 GHz: 2 x 2
Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
5 GHz: 4.3 Gbps (BW240)
Antenna Gain
6 GHz: 8 dBi
5 GHz: 8 dBi
5 GHz: 8 dBi
Max. TX Power
6 GHz: 23 dBm
5 GHz: 26 dBm
5 GHz: 26 dBm
Max. Conducted TX Power
26 dBm (Combined)
Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0-MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0-MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0-MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0-MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA3 SAE (Always On)
Hardware
Max. Power Consumption
25 W (Excluding PoE output)
Supported Voltage Range
42.5-57 V DC
Networking Interface
(1) 10 GbE RJ45 port
(7) 2.5 GbE RJ45 ports
(7) 2.5 GbE RJ45 ports
PoE Interface
(8) PoE+ ports
Max. PoE Wattage per Port
30 W
Total PoE Availability
60 W AC adapter input: 35 W
210 W AC adapter input: 185 W*
210 W AC adapter input: 185 W*
*210W adapter (sold separately).
Antennas
(1) Internal
Management
Ethernet, WiFi
Channel Bandwidth
20/40/80/160/240/320 MHz
Weight
Device: 548 g (1.21 lb)
With mount: 563 g (1.24 lb)
With mount: 563 g (1.24 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LCM Display
0.96" status display
Button
(1) Factory-reset
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Operating Frequency
Worldwide:
5150-5875 MHz
5945-7125 MHz
5150-5875 MHz
5945-7125 MHz
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network: Version 10.0.156 or later
