UBIQUITI  |  SKU: CC-9011251-WW

Ubiquiti U7 Pro outdoor, IP67 WiFi 7 AP, 2.5 GbE Uplink,300+ Connect Devices, Directional Super Antenna, 465 m² Coverage, Articulation Mounting Bracket

$599.00

Pickup available at PC MART

Usually ready in 24 hours

  • U7 Pro Outdoor

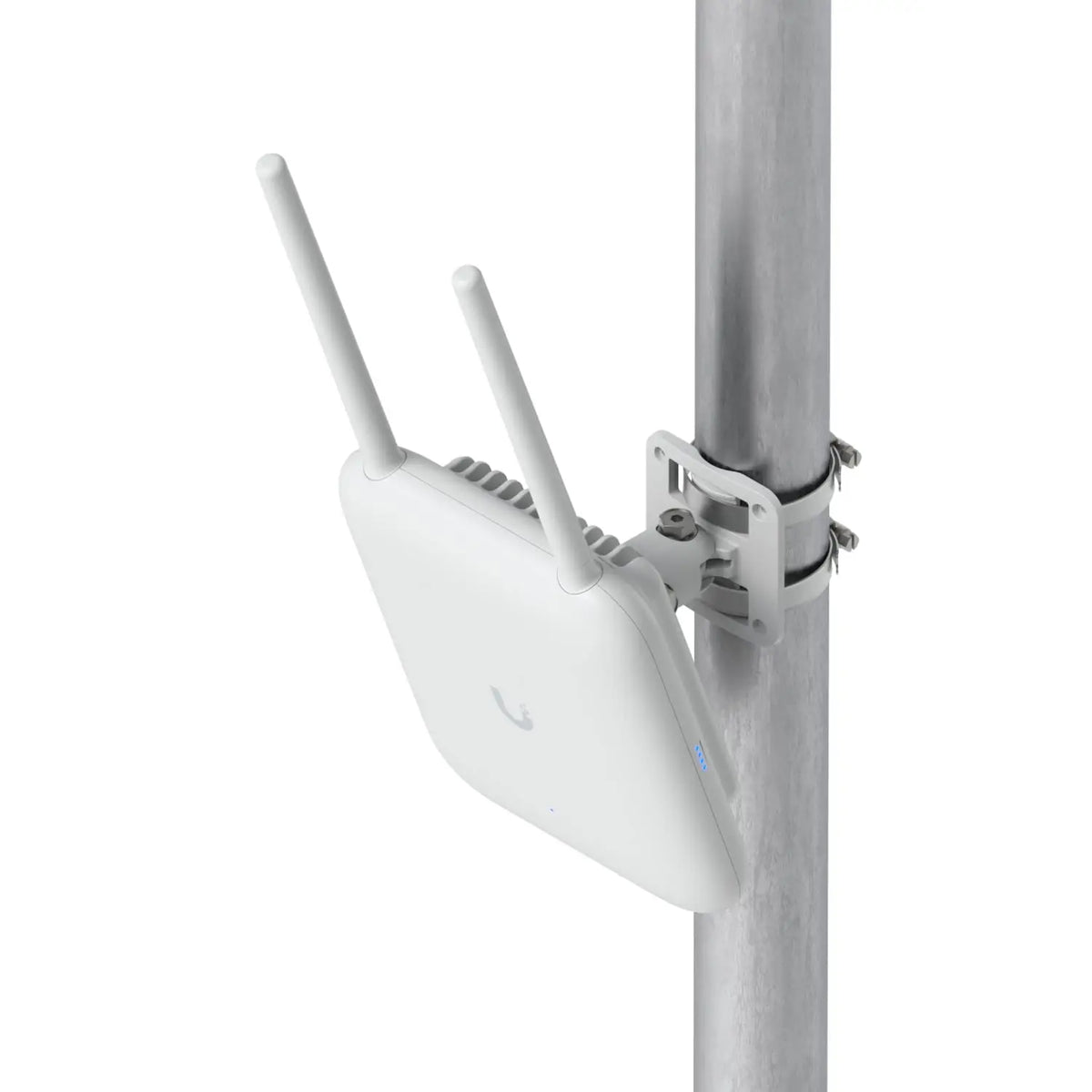

    All-weather IP67 WiFi 7 AP, integrated directional super antenna, and articulation mounting bracket.

    WiFi 7
    Up to 465 m² (5,000 ft²) Directional Coverage
    Up to 300+ Connected Devices
    Integrated Directional Super Antenna
    Included External Omni Antennas
    2.5 GbE PoE+ Uplink

    Technical Specs
    Overview
    Dimensions
    Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
    With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
    WiFi Standard
    WiFi 7
    Coverage Area
    465 m² (5,000 ft²)
    Max. Client Count
    300+
    Uplink
    2.5 GbE
    Mounting

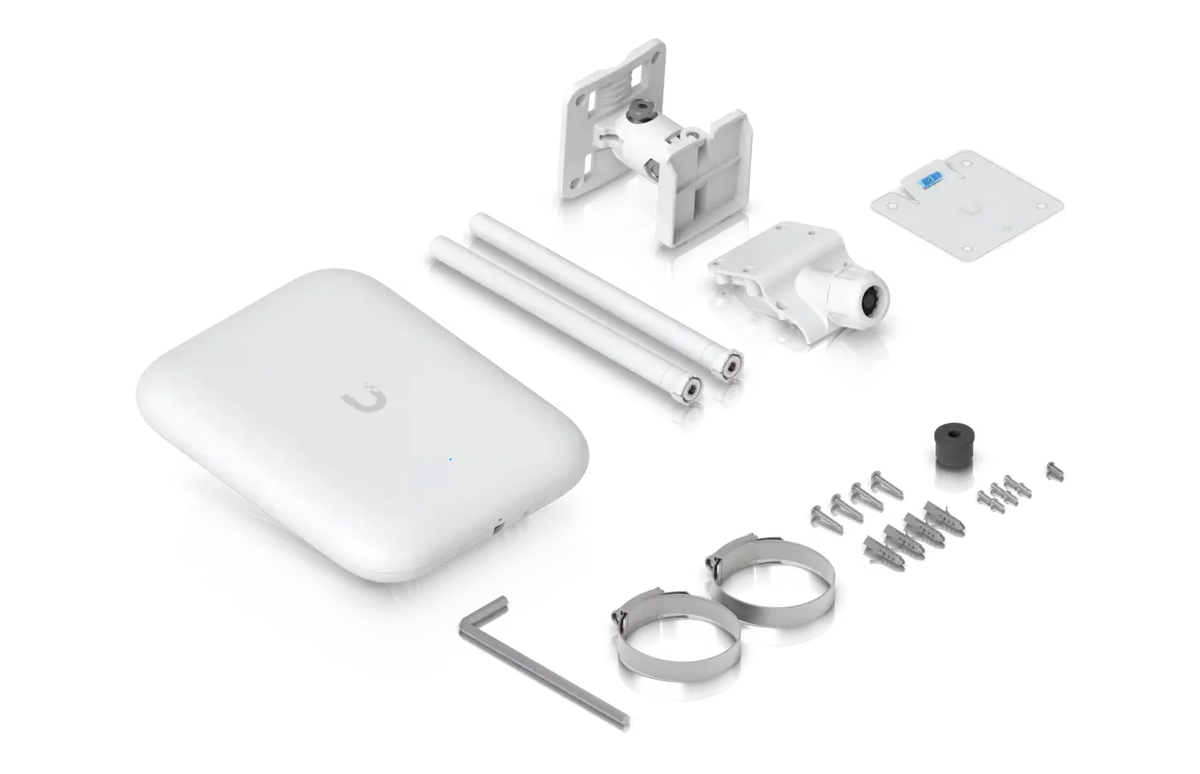

    Wall, Pole (Mounts Included)
    Weatherproofing
    IPX6
    IP67 (With cable-gland door kit)
    Power Method
    PoE+
    Performance
    MIMO
    5 GHz: 2 x 2 (DL/UL MU-MIMO)
    2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
    Max. Data Rate
    5 GHz: 4.3 Gbps (BW240)
    2.4 GHz: 688 Mbps (BW40)
    Antenna Gain
    5 GHz: Directional internal: 11 dBi, External omni: 8 dBi
    2.4 GHz: Directional internal: 8 dBi, External omni: 6 dBi
    Max. TX Power
    5 GHz: 26 dBm
    2.4 GHz: 23 dBm
    Max. BSSIDs
    8 per Radio
    Supported Data Rates
    802.11be (WiFi 7): 7.3 Mbps to 8.6 Gbps (MCS0-MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0-MCS11 NSS1/2/3/4, HE 20/40/80/160)
    802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    Features
    Wireless Meshing
    Yes
    Band Steering
    Yes
    802.11v BSS Transition Management
    Yes
    802.11r Fast Roaming
    Yes
    802.11k Radio Resource Management (RRM)
    Yes
    Advanced Radio Management
    Yes
    Passpoint (Hotspot 2.0)
    Yes
    Captive Hotspot Portal
    Custom Branding Landing Page: Yes
    Voucher Authentication: Yes
    Payment-Based Authentication: Yes
    External Portal Server Support: Yes
    Password Authentication: Yes
    Guest Network Isolation: Yes
    Private Pre-Shared Key (PPSK)
    Yes
    WiFi Speed Limiting
    Yes
    Client Device Isolation
    Yes
    WiFi Schedules
    Yes
    RADIUS over TLS (RadSec)
    Yes
    Dynamic RADIUS-assigned VLAN
    Yes
    Hardware
    Max. Power Consumption
    21W
    Supported Voltage Range
    42.5–57V DC
    Networking Interface

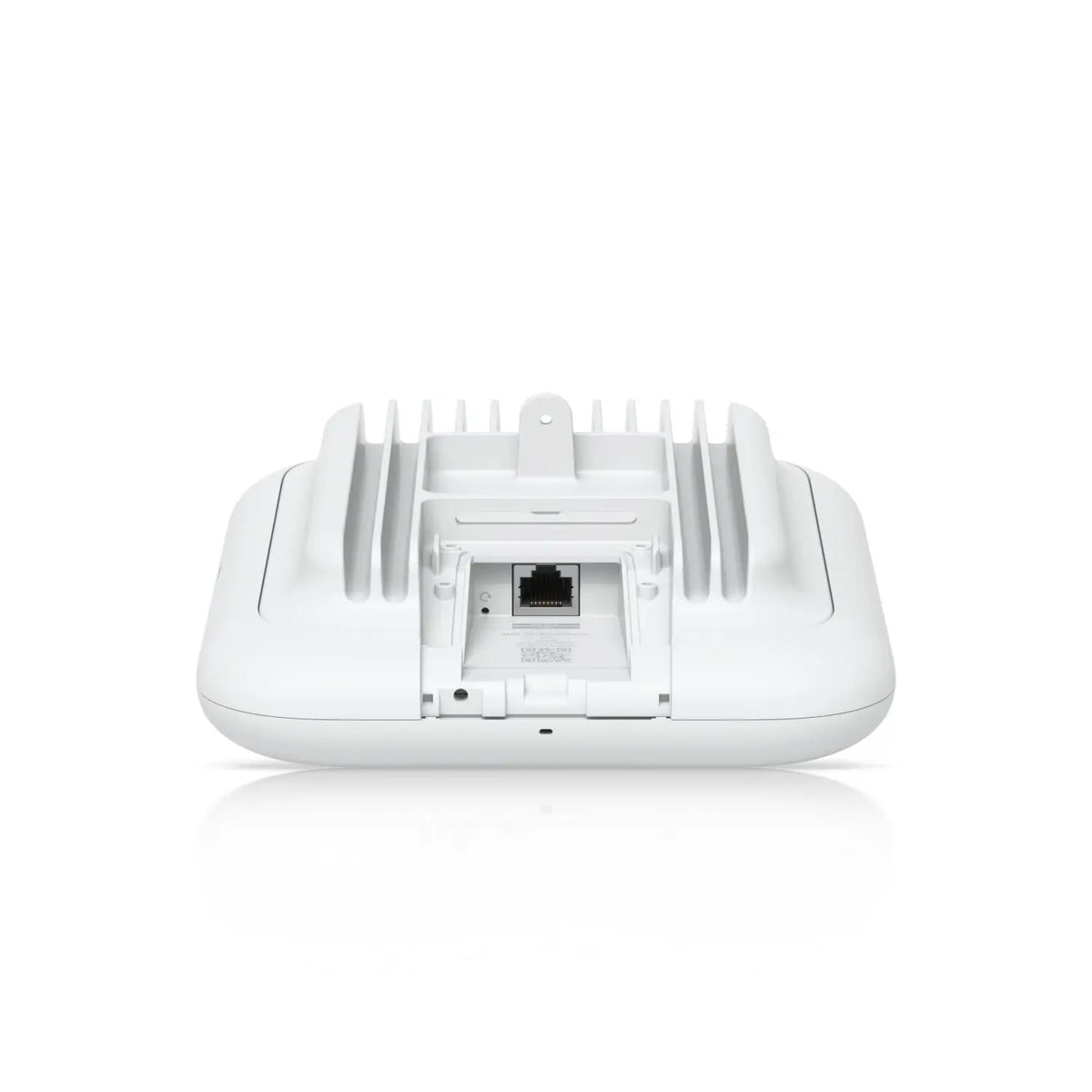

    (1) 1/2.5 GbE RJ45 port
    Weight
    Device: 1.2 kg (2.6 lb)
    With mount: 1.33 kg (2.9 lb)
    Wind Loading
    74.6 N at 200 km/h (16.8 lbf at 125 mph)
    Pole Mount Diameter
    1–2.5" (25–63.5 mm)
    Management
    Ethernet
    Enclosure Material
    UV-stabilised polycarbonate, aluminium alloy
    Mount Material
    UV-stabilised polycarbonate
    LEDs
    System:
    - (1) Power: White/Blue
    - (4) Mesh signal: Blue
    Certifications
    FCC, IC
    NDAA Compliant
    Yes
    Ambient Operating Temperature
    -30 to 60° C (-22 to 140° F)
    Ambient Operating Humidity
    5 to 95% non-condensing
    Software
    Application Requirements

    UniFi Network
    Version 9.0.114 and later
    UniFi OS
    iOS™ Version 10.20.2 and later
    Android™ Version 10.21.7 and later
