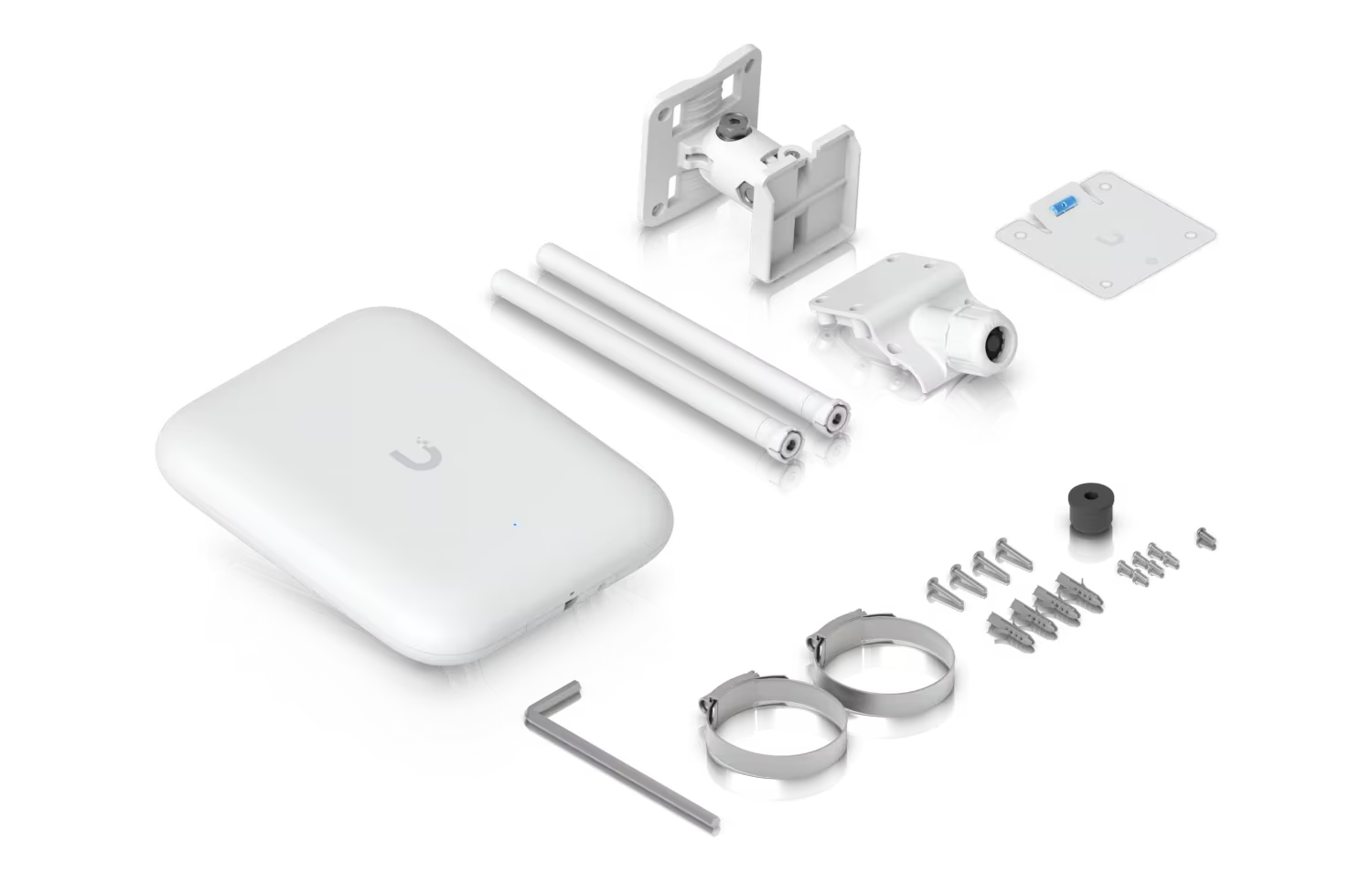

Ubiquiti U7 Pro, IP67 WiFi 7 AP, 2.5 GbE Uplink,300+ Connect Devices, Directional Super Antenna, 465 m² Coverage, Articulation Mounting Bracket

Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")

WiFi 7

465 m² (5,000 ft²)

300+

2.5 GbE

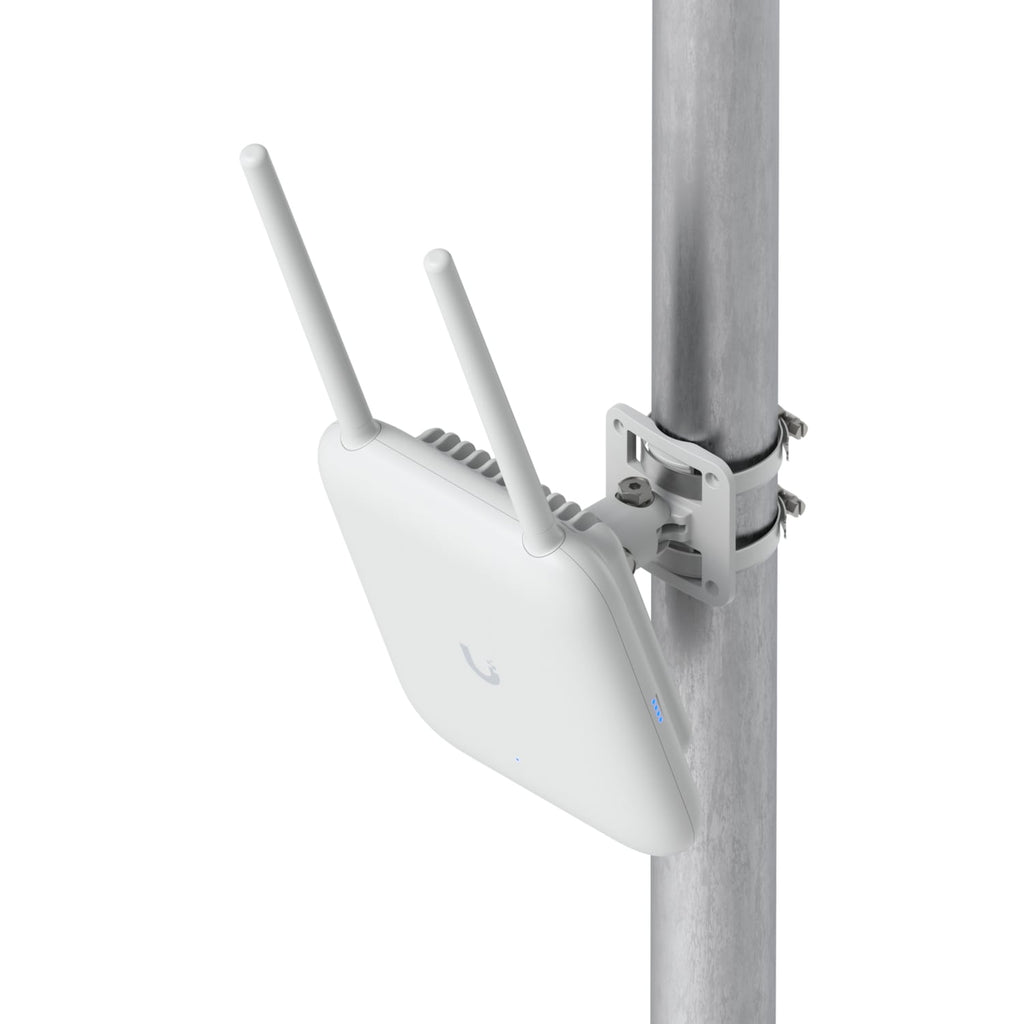

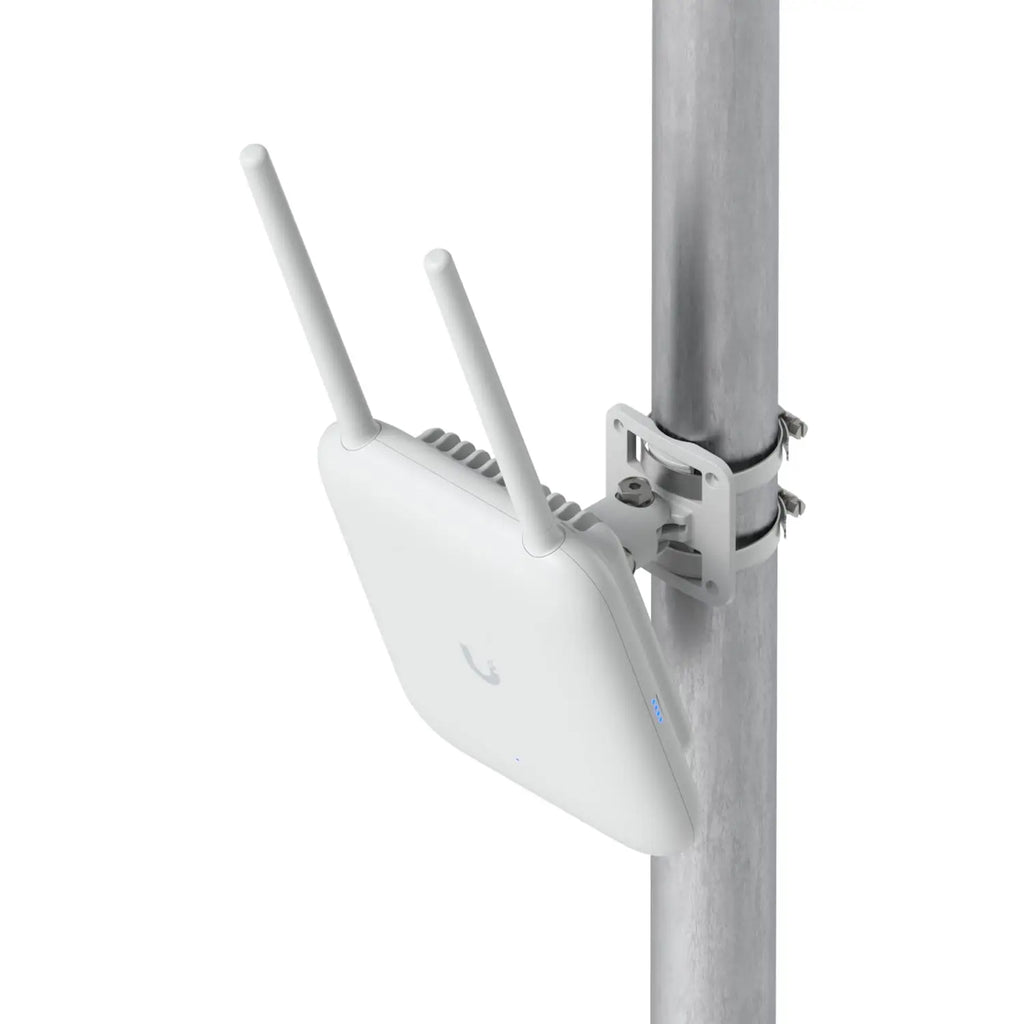

Wall, Pole (Mounts Included)

IPX6
IP67 (With cable-gland door kit)

PoE+

5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

5 GHz: Directional internal: 11 dBi, External omni: 8 dBi
2.4 GHz: Directional internal: 8 dBi, External omni: 6 dBi

5 GHz: 26 dBm
2.4 GHz: 23 dBm

8 per Radio

802.11be (WiFi 7): 7.3 Mbps to 8.6 Gbps (MCS0-MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0-MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Yes

Yes

Yes

Yes

Yes

Yes

21W

42.5–57V DC

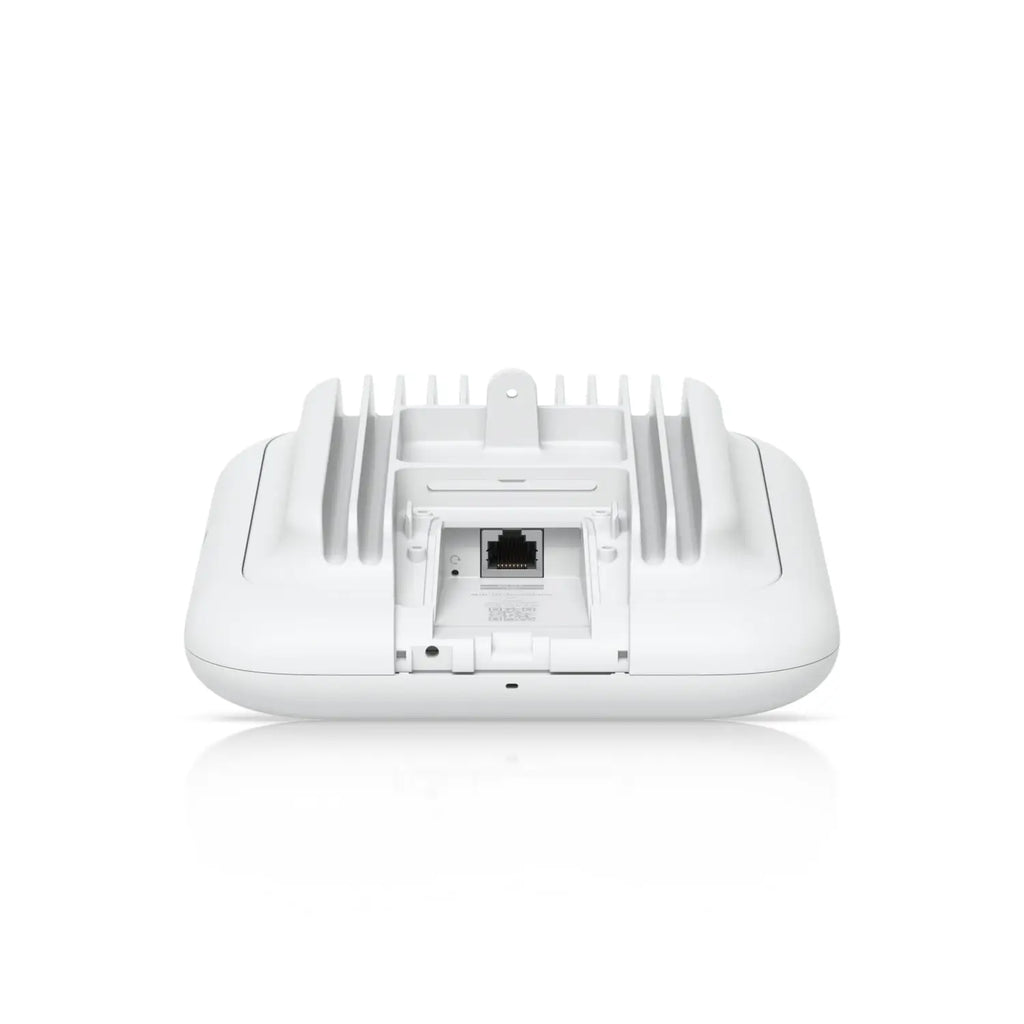

(1) 1/2.5 GbE RJ45 port

Device: 1.2 kg (2.6 lb)
With mount: 1.33 kg (2.9 lb)

74.6 N at 200 km/h (16.8 lbf at 125 mph)

1–2.5" (25–63.5 mm)

Ethernet

UV-stabilised polycarbonate, aluminium alloy

UV-stabilised polycarbonate

System:
- (1) Power: White/Blue
- (4) Mesh signal: Blue

FCC, IC

Yes

-30 to 60° C (-22 to 140° F)

5 to 95% non-condensing

Version 9.0.114 and later

iOS™ Version 10.20.2 and later
Android™ Version 10.21.7 and later
