4Cabling  |  SKU: 010.005.1020

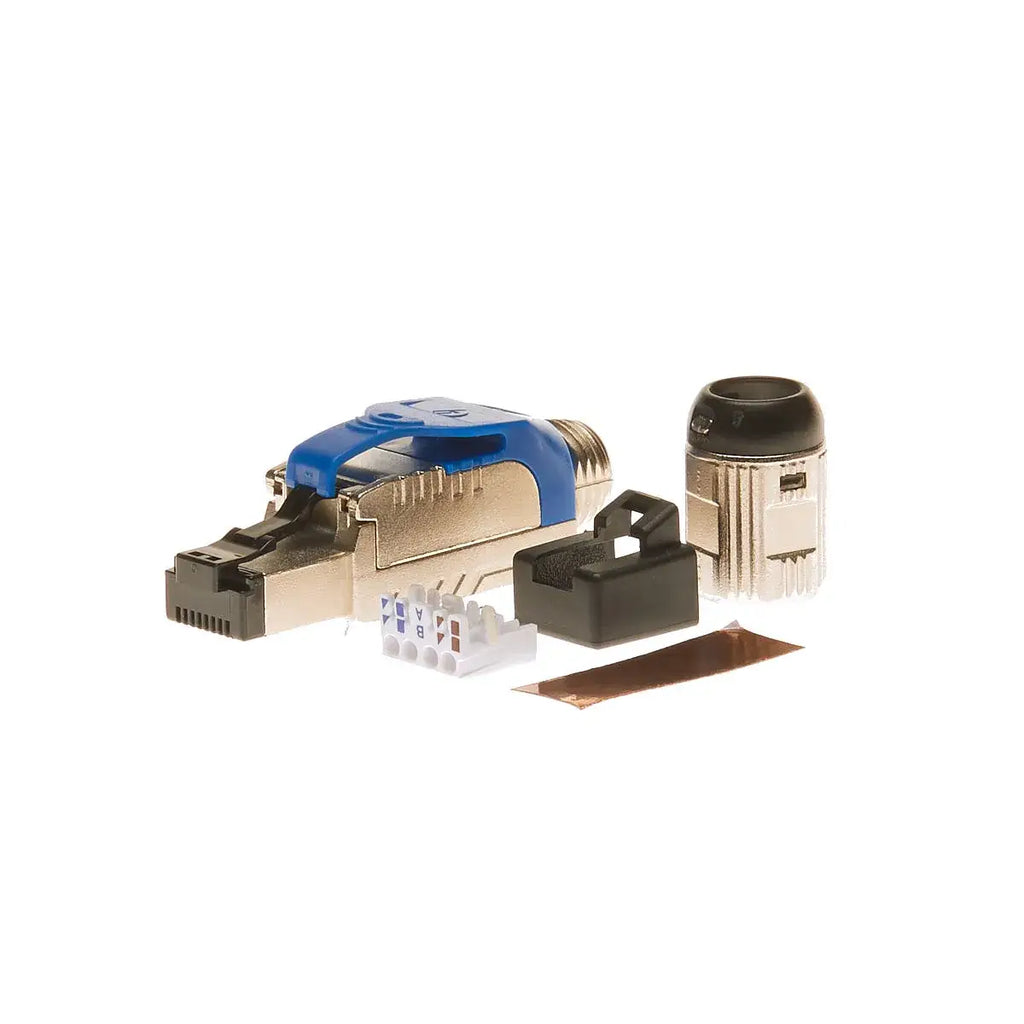

4Cabling CAT6A Shielded Field Termination Toolless Plug

$18.00

Pickup available at PC MART

Usually ready in 24 hours

FEATURES

  • Fully Shielded with Zinc Alloy housing to prevent crosstalk
  • Supports 23AWG - 26 AWG solid or stranded shielded CAT6A cable with an outside diameter between 6.0 and 7.5mm

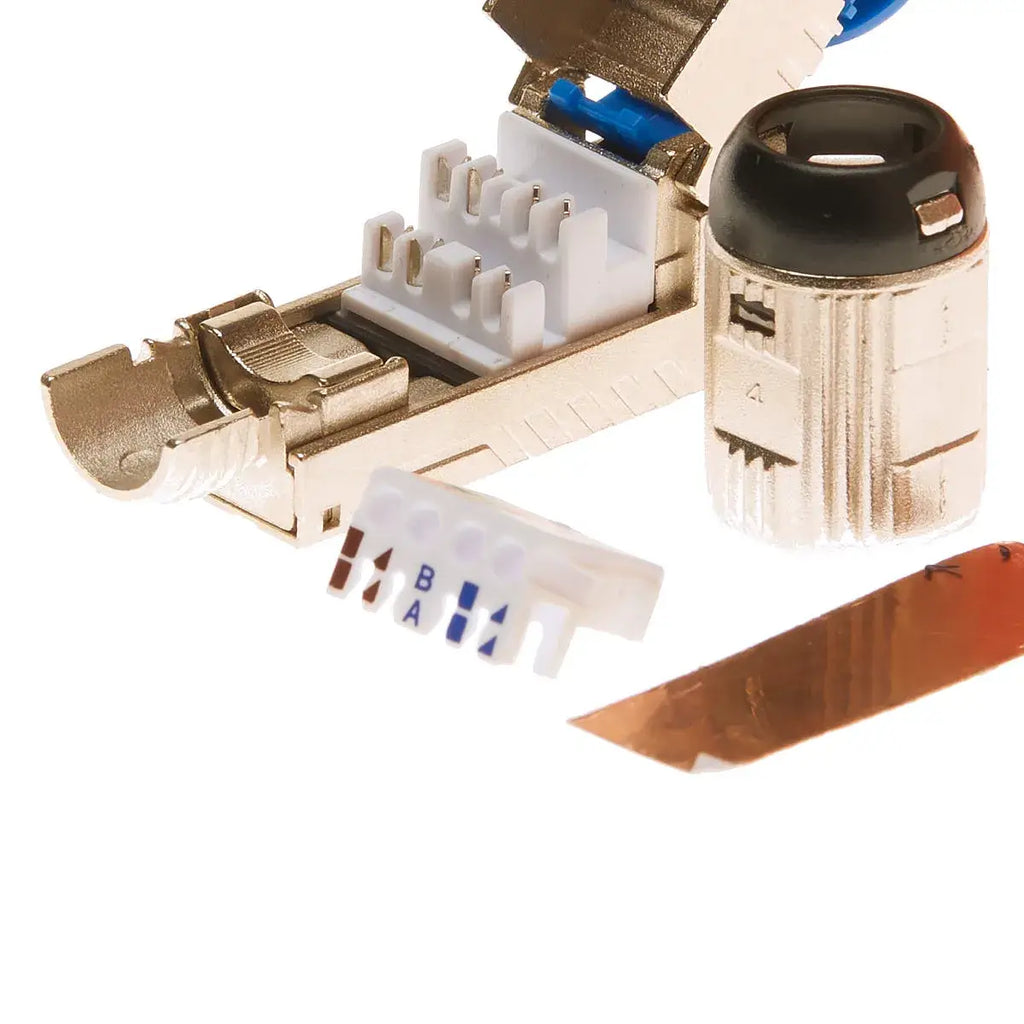

  • Open hinged design to simplify termination of shielded cable

MATERIAL

  • Extractor: PC, UL 94V-2
  • Housing: Zinc die-casting with Nickel plated
  • Housing: PC, UL 94V-2
  • Contact material: Phosphor bronze with 100 micro-inch nickel plated
  • Contact finish: Min. 50 micro-inch gold plated on surface contact area.
  • Cover: Zinc die-casting with Nickel plated
  • Wire management bar: PC, UL 94-V2
  • Housing: PC, UL 94-V2
  • Terminal: Titanium copper with tin plated
  • Grounding contact: Zinc die-casting with Nickel plated
  • Housing: Zinc die-casting with Nickel plated
  • SR: PC, UL 94V-2
  • CAP: PC, UL 94V-2
  • PCB: UL 94-V0
  • Dust cap: PE
  •  Foil tape: Copper

PERFORMANCE

  • T568A & T568B wiring
  • Insertion force: Max. 30N (IEC 60603-7-5)
  • Retention strength: 7.7kg between jack and plug
  • Operating temperature: -10°C to 60C (ISO/IEC 11801. ANSI/TIA 569 C.2)
  • 750 cycles min. (ISO/IEC 11801, ANSI/ TIA 568 C.2)
  • IDC: Suitable for 23-26AWG stranded and solid wire, min. 20 installation cycles
  • Suitable for cable jacket OD: 6.0-7.5mm
