Description

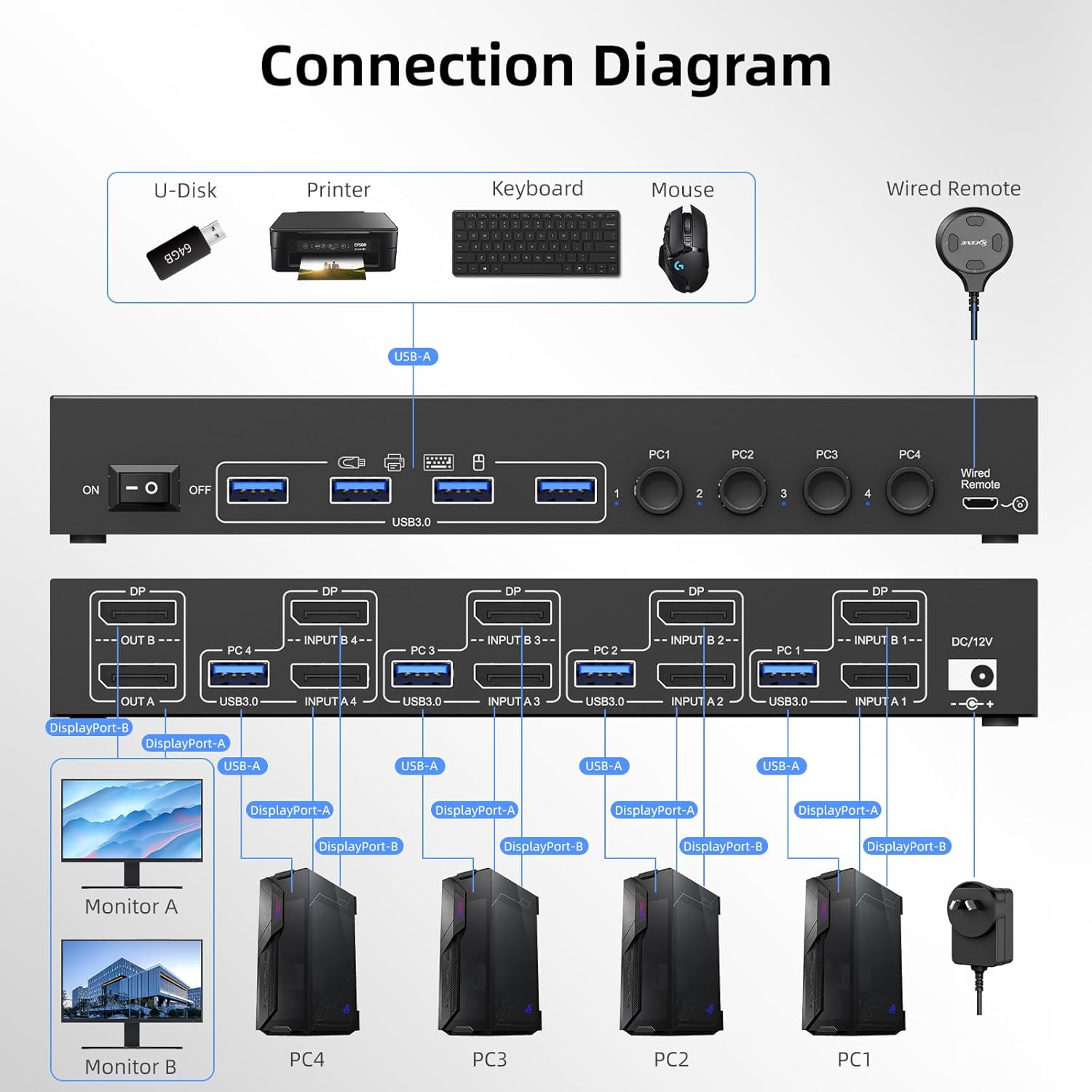

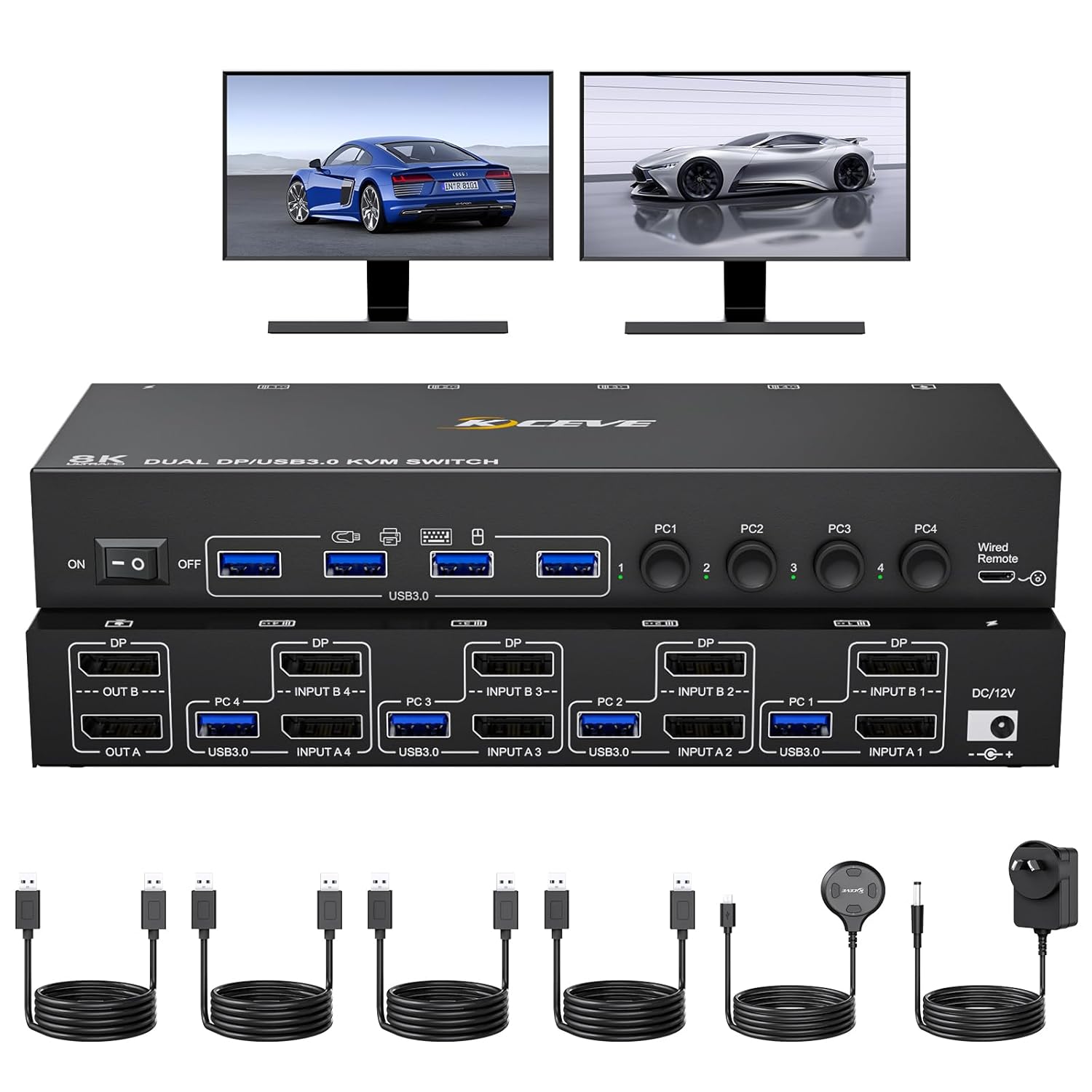

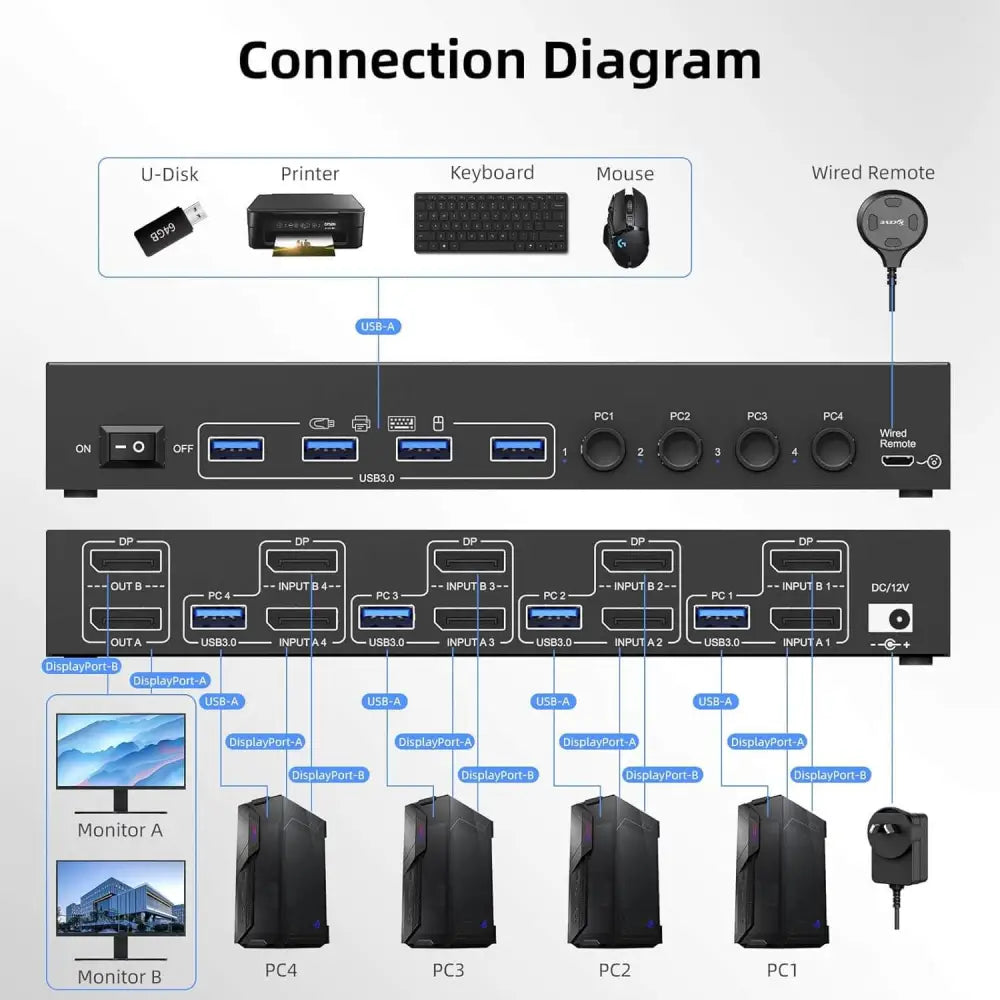

- 【2 Monitors 4 Computers Dual Displayport KVM Switch】 The 4 port dual monitor DP KVM switch allows to control 4 computers/laptops with one set of keyboard mouse and 2 monitors for mirrored or extended screens, making workspace tidier and more efficient.𝙉𝙤𝙩𝙚: To get 2 screens, please make sure 2 displayport cables are connected from each PC to the corresponding DP port on the KVM and each PC supports dual display.

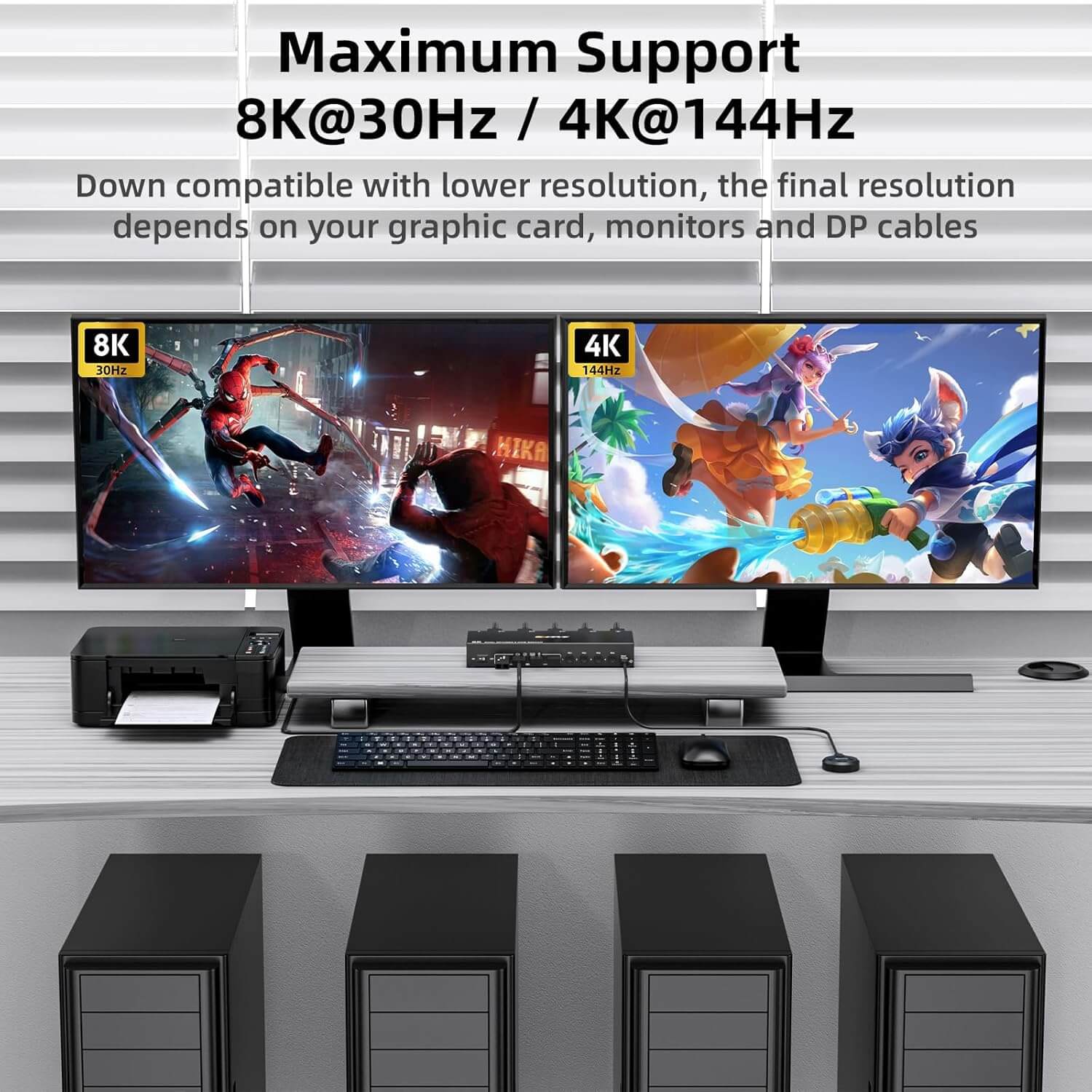

- 【Ultra HD 8K@30Hz/4K@144Hz Dual KVM Switcher 】The 4 in 2 out DP 1.4 KVM switches supports max resolution up to 8K@30Hz or high refresh rate 4K@144Hz, and also supports 3D and 1080P@60Hz or downward compatible with lower resolution.𝙉𝙤𝙩𝙚: To achieve 8K@30Hz or 4K@144Hz effect, all of your computer’s graphics card, monitors, DP cables and adapters need to support 8K@30Hz or 4K@144Hz. And the length of DP cable don’t exceed 1.5M.
- 【USB 3.0 Displayport 2 Monitor Keyboard Mouse Switcher 】The 8K Dual DP 1.4 KVM has 4 USB 3.0 ports which allows 4 computers to share keyboard, mouse, printer, scanner or other USB devices. USB 3.0 transfer speed up to 5Gbps, which is 10 times faster than USB 2.0(only 480Mbps).𝙉𝙤𝙩𝙚: If the USB devices don’t work properly, please check if the USB cables are connected correctly from each PC to the KVM.

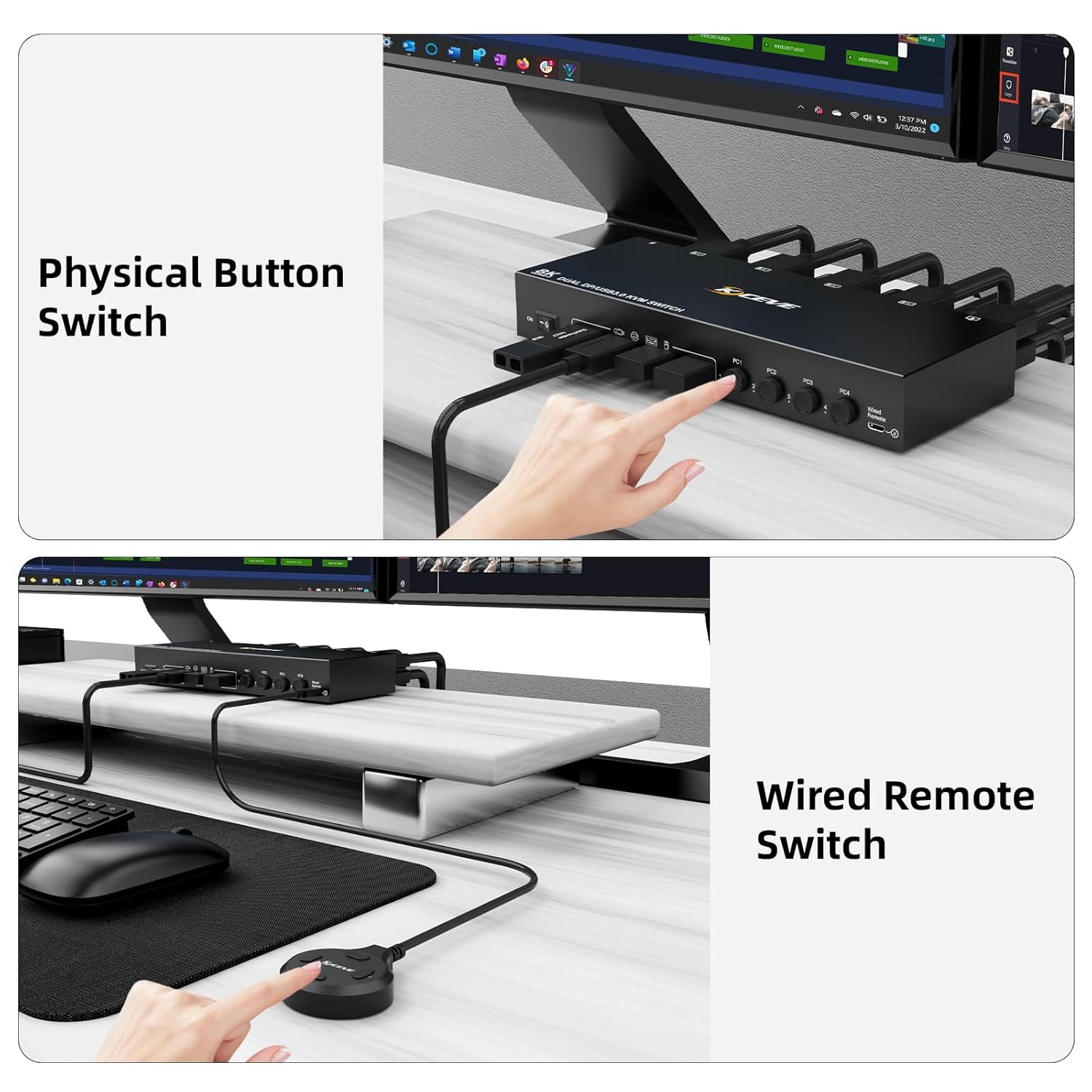

- 【2 Switching Ways & Wide Compatibility 】The dual displayport 1.4 KVM support panel button switching and wired remote control switching(including in the package), LED indicates the active computer. It is compatible with Windows/Vista/XP/Mac OS/Linux and Unix operating systems, plug and play, NO driver or complex software needed, easy to use.
- 【Separate 12V Power Port & Power Switch 】The dual monitor 4 port KVM switches is designed with 12V external power supply port for high-power consumption USB devices, just supply external power for the KVM with the included 12V/1A power cable, the performance of USB devices will be more stable and reliable. The 4 computers dual monitor KVM also has a separate power switch. When you want to power off the switch, you could one-click here without unplugging and reconnecting everything.

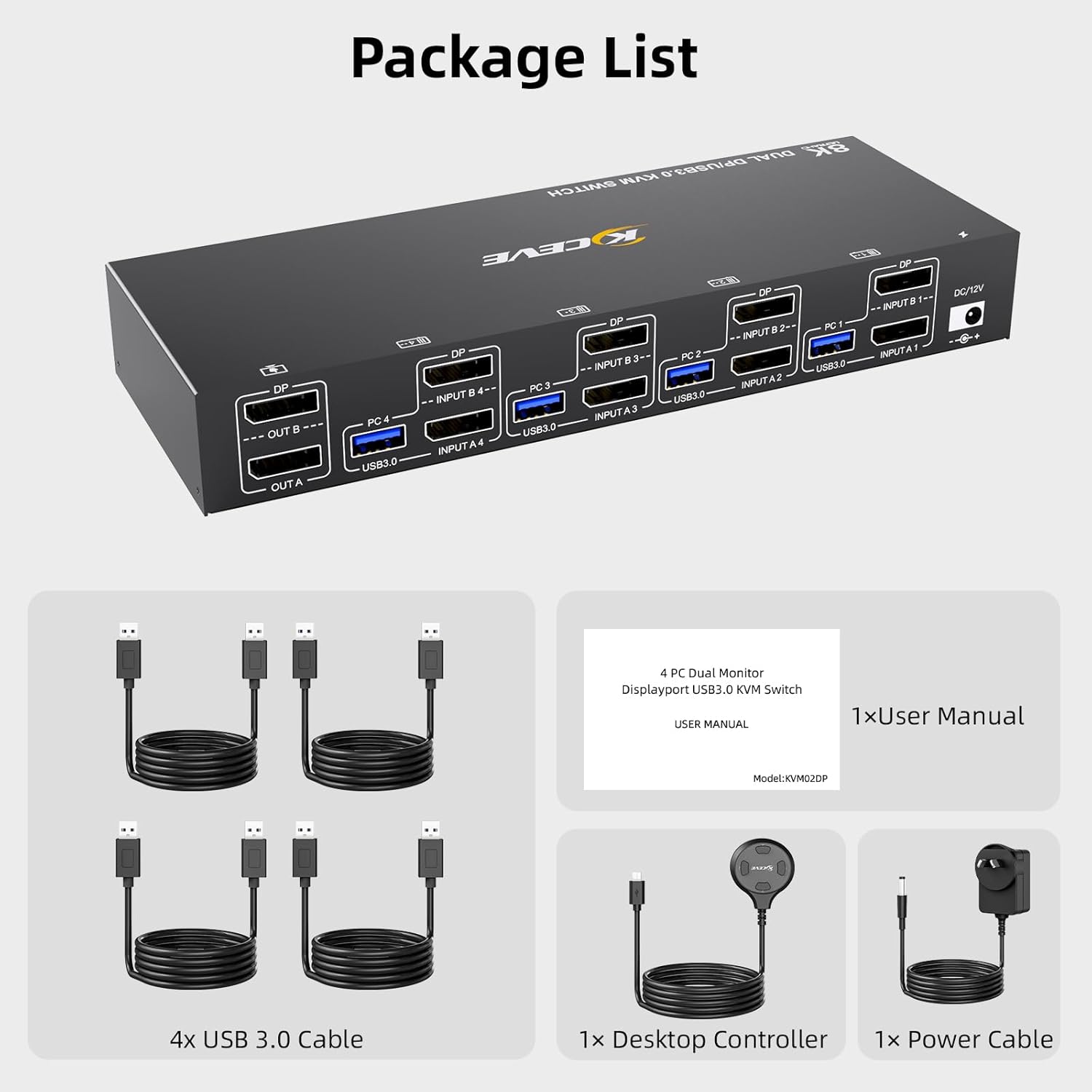

- 【Important Note About the Dual Displayport KVM】⑴ DP cable are not included in the package, please prepare total 10 DP cables by yourself. ⑵ After connecting the computers to the monitors through KVM, please press “Windows+P” to choose the output mode in the pop-up window on the screen. ⑶ This 8K USB 3.0 Displayport KVM switcher doesn’t support EDID lock screen function.
