Description
Specification
|
Microcontroller |
ATmega328 |
|
Architecture |
AVR |
|
Operating Voltage |
5 V |
|
Flash Memory |
32 KB of which 2 KB used by bootloader |
|
SRAM |
2 KB |
|
Clock Speed |
16 MHz |
|
Analog IN Pins |
8 |
|
EEPROM |
1 KB |
|
DC Current per I/O Pins |
20 mA (I/O Pins) |
|
Input Voltage |
7-12V |
|
Digital I/O Pins |
22 (6 of which are PWM) |
|
PWM Output |
6 |
|
Power Consumption |
19 mA |
|
PCB Size |
18 x 45 mm |
|
Weight |
7 g |
Package List

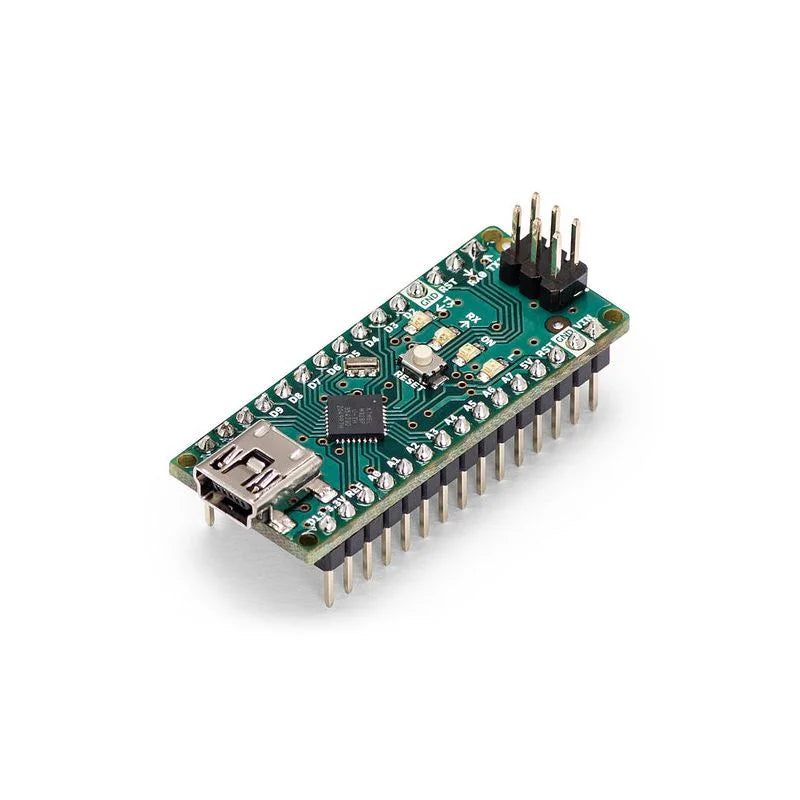

- 1x Arduino Nano
