Astrotek USB-C Dock 12-in-1 Multiport Docking Station with 2xHDMI 4K 1xVGA 1xGLAN 3xUSB3.0 1xUSB2.0 TF/SD Card Reader 3.5mm Audio USB-C PD ~100W
12 in 1 Docking Station Dual Monitor ,Triple Display USB C Adapter to 2xHDMI 4K, VGA, Ethernet, 4xUSB Ports, SD/TF Card Reader for MacBook and Window
Make sure that the host USB-C port on the device complies with the USB 3.1 specification or the USB-C port is Thunderbolt 3.
To use the HDMI output port, the host USB-C port from your device must support DisplayPort Alt Mode..
3.5mm Audio needs to be used with HDMI or VGA.
Some computer systems need to manually install the network card driver to connect to the Internet
When VGA Port is connected, each monitor will be limited to a maximum resolution of 1920 x 1080@60Hz

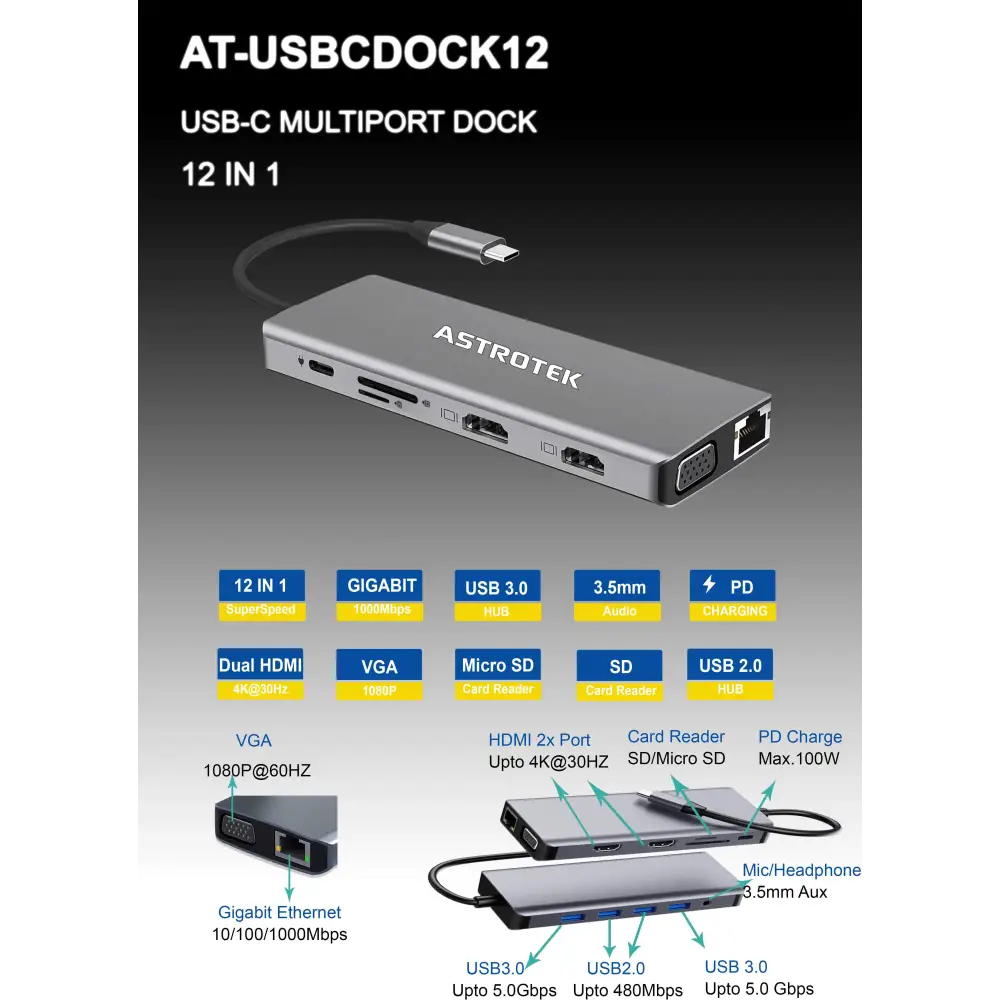

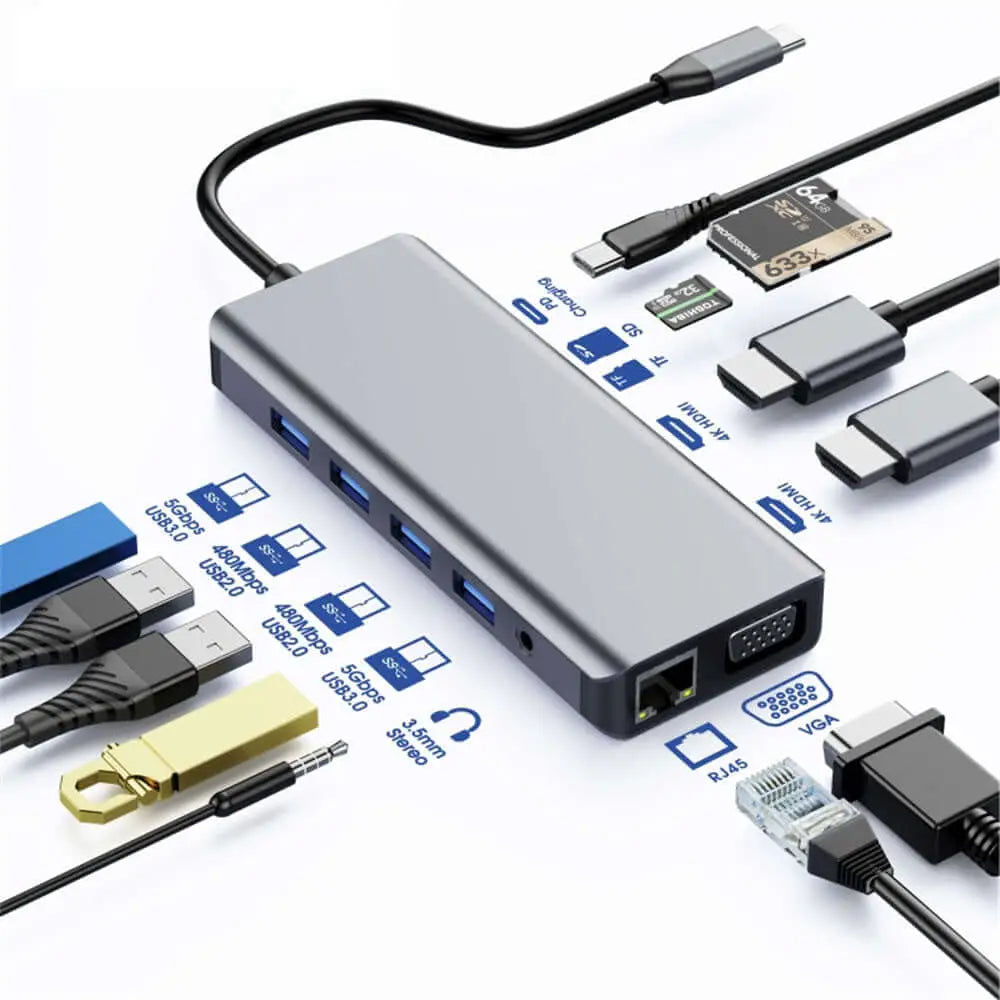

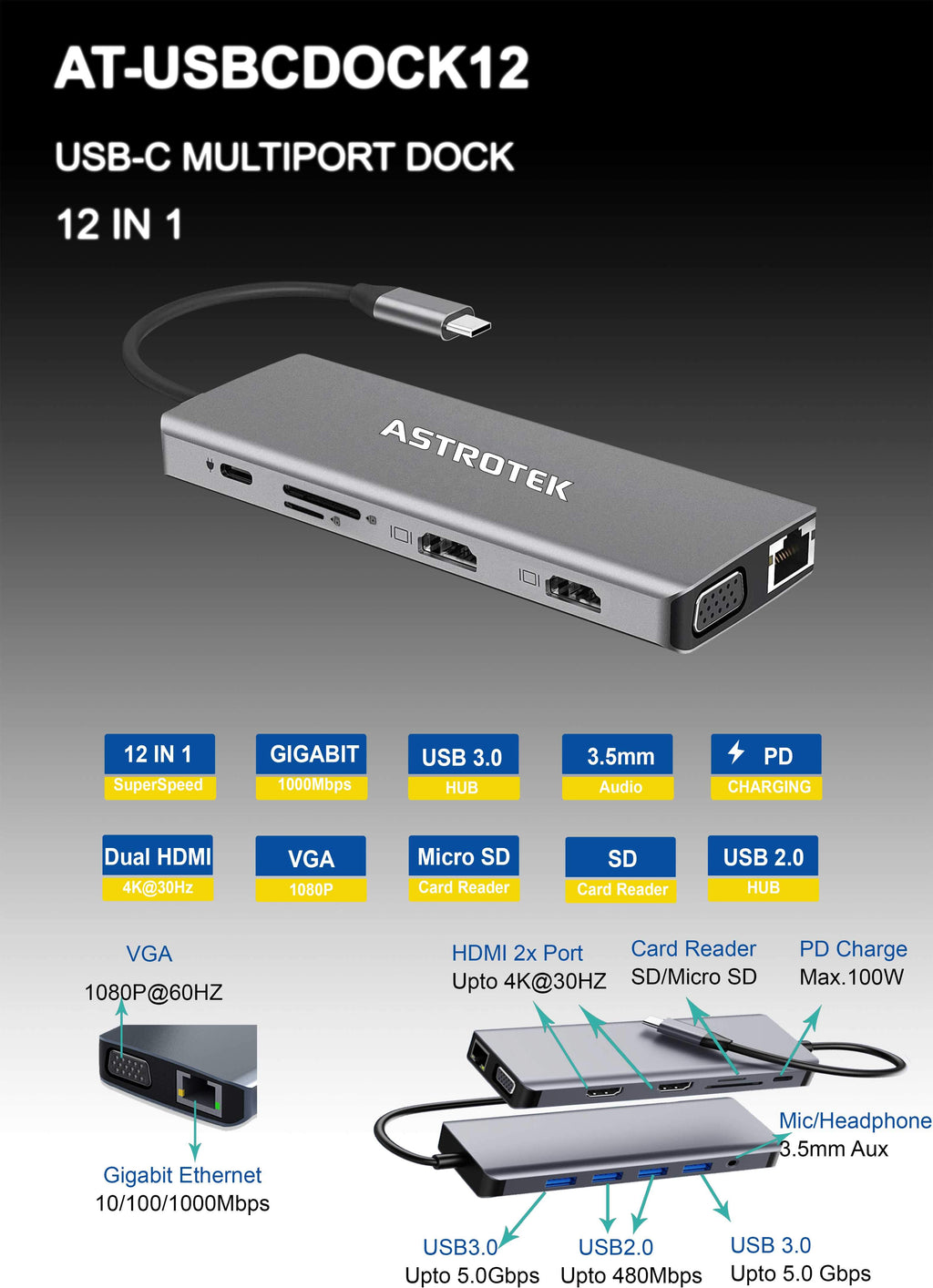

User Interface
Input USB-C x 1
Output
HDMI 4K x 2
VGA 1080P x 1
USB 3.0 Type A x 4
SD CARD x 1
TF CARD x 1
Ethernet 1000Mhz x 1
3.5mm Audio x 1
USB C Power delivery 87W x 1
Resolution
Single Monitor: 1*4K@30Hz(3840x2160) (HDMI)
Single Monitor: 1*1080P@60Hz(1920x1080) (VGA)
Dual Monitors: 2*1080P@60Hz (HDMI + HDMI)/ (HDMI + VGA)
Triple Monitors: 2*1080P@60Hz + 1*800x400@60Hz (HDMI + HDMI + VGA)
Physical Characteristics
Colour Space Gray
Length 15cm
System Requirement
USB-C Ports with DP alt Mode, Windows
Chromebook and Mac OS
Warranty 1 year
