| Product Specifications |
| Product Compatibility |
Fully compatible with standards-compliant telepresence and video systems |
| Software Compatibility |
Cisco TelePresence MX300 G2
Cisco TelePresence Software Version TC 7.0 or later |
| Components |
Fully integrated unit including:
- Codec
- Display
- Camera
- Integrated microphone and loudspeakers
- Cisco TelePresence Table Microphone 20 (two microphones are shipped with the MX300 G2)
- Cables including DVI-I-to-VGA cable, 3.5-mm jack audio cable, LAN cable, and power cable
|
| Display |

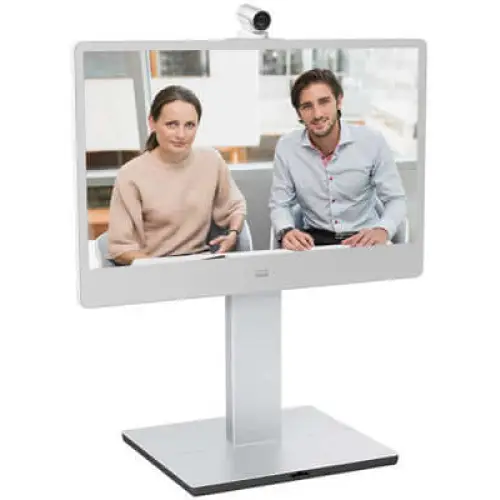

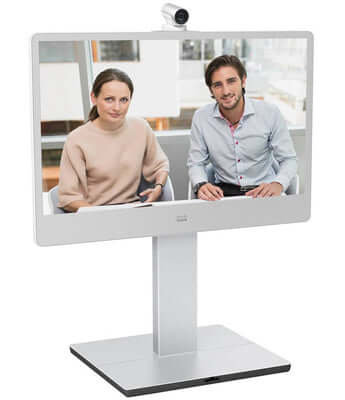

Cisco TelePresence MX300 G2:
- 55-in. (1.4m) LCD monitor
- Resolution: 1920 x 1080 (16:9)
- Contrast ratio: Typical 4000
- Viewing angle: +/-178 deg
- Response time: Typical 8 ms
- Brightness: Typical 450 cd/m2
|
| PC and second-source video input |
|
| Supported PC input resolutions |
SVGA (800 x 600) to 1080p (1920 x 1080) |
| Camera |
- 4x optical zoom (8x with digital*) • Motorized +15°/-25° tilt, +/-90° pan • 72° horizontal field of view • 43.5° vertical field of view • Resolutions: 1080p60 and 720p60 • F 1.7 • 1920 x 1080 pixels progressive @ 60 frames per second (fps) • Automatic or manual focus, brightness, and white balance • Far-end camera control • Focus distance 0.98 ft (0.3m) to infinity
|
| Audio system |
- Integrated full-range speaker and bass
- Integrated full-range microphone
- Support for two Cisco TelePresence Table Microphone 20
- RCA PC audio input
- RCA audio output
|
| User interface |
Cisco TelePresence Touch 10 interface
- Projected capacitive touch screen
- Resolution: 1280 x 800
|
| Language support |
English |
| Physical dimensions (H x L x D) |
Cisco TelePresence MX300 G2 main unit with:
- Floor stand: 59.8 x 50.3 x 37.3 in. (1518 x 1278 x 761 mm)
- Wall-mount: 37.3 x 50.3 x 8.5 in. (948 x 1278 x 180 mm)
- Wheel base: 63.2 x 50.3 x 29.7in. (1605 x 1287 x 755 mm)
|
| Weight |
Cisco TelePresence MX300 G2 main unit with (all weight without packaging):
- Floor stand: 108.7 lb (49.3kg)
- Wall-mount: 84.9 lb (38.5 kg)
- Wheel base: 96.1 lb (43.6kg)
- Main unit only: 77.2 lb (35 kg)
|
Physical dimensions and weight of packaging
(H x W x D) |
Cisco TelePresence MX300 G2:
- Main unit: 43 x 56 x 10in (1080 x 1430 x 260mm), 43.3kg
- Floor stand: 31 x 43 x 10in (800 x 1080 x 260mm), 19.4kg
- Floor stand, Back Cover: 56 x 9 x 5in 4lb, (1430 x 220 x 120mm, 2kg)
- Wall mount Packaging: 11 x 12 x 33in 9lb, (290 x 310 x 840mm, 4kg)
- Wheel base Packaging: 36 x 11 x 33in, 22ib, (920 x 270 x 830mm, 10kg)
|
| Power |
Autosensing power supply
100-240 VAC, 50-60 Hz
Rated: 300W maximum
Power consumption: 235W at maximum standardized configuration |
| Temperature range |
Operating temperature and humidity:
- Ambient temperature: 32 to 95°F (0 to 35°C)
- Relative humidity (RH): 10 to 90%
- Storage and transport temperature at RH 10-90% (noncondensing): -4 to 140°F (-20 to 60°C)
|
| Approvals and compliance |
- Directive 2006/95/EC (Low-Voltage Directive)-Standard EN 60950-1
- Directive 2004/108/EC (EMC Directive)-Standard EN 55022, Class A-Standard EN 55024-Standard EN 61000 3-2/-3-3
- Approved according to UL 60950-1 and CSA 60950-1-07
- Complies with FCC15B Class A
|
| Bandwidth |
H.323 and SIP up to 6 Mbps point-to-point |
| Minimum bandwidth for resolution and frame rate |
- 720p30 from 768 kbps
- 720p60 from 1152 kbps
- 1080p30 from 1472 kbps
- 1080p60 from 2560 kbps
|
| Video standards |
|
| Video features |
- Widescreen: 16:9
- Advanced screen layouts
- Intelligent video management
- Local auto layout
|
| Video inputs (two inputs) |
One HDMI and one DVI-I (analog and digital): Supported formats:
- 640 x 480
- 720 x 480
- 720 x 576
- 800 x 600
- 848 x 480
- 1024 x 768
- 1152 x 864
- 1280 x 720
- 1280 x 1024
- 1280 x 768
- 1280 x 800
- 1280 x 960
- 1360 x 768
- 1366 x 768
- 1400 x 1050
- 1440 x 900
- 1680 x 1050
- 1920 x 1080
Extended Display Identification Data (EDID)
|
| Video outputs (one output) |
One HDMI
- 1920 x 1080 @ 60 fps (1080p60)
- 1920 x 1080 @ 50 fps (1080p50)
- 1280 x 720 @ 60 fps (720p60)
- 1280 x 720 @ 50 fps (720p50)
- 1366 x 768 @ 60 fps (WXGA)
- 1360 x 768 @ 60 fps (WXGA)
- 1280 x 768 @ 60 fps (WXGA)
VESA Monitor Power Management
EDID
Live video resolutions (encode and decode):
- 176 x 144 @ 30 or 60 fps (QCIF) (decode only)
- 352 x 288 @ 30 or 60 fps (CIF)
- 512 x 288 @ 30 or 60 fps (w288p)
- 576 x 448 @ 30 or 60 fps (448p)
- 768 x 448 @ 30 or 60 fps (w448p)
- 704 x 576 @ 30 or 60 fps (4CIF)
- 1024 x 576 @ 30 or 60 fps (w576p)
- 640 x 480 @ 30 or 60 fps (VGA)
- 800 x 600 @ 30 or 60 fps (SVGA)
- 1024 x 768 @ 30 or 60 fps (XGA)
- 1280 x 768 @ 30 or 60 fps (WXGA)
- 1280 x 720 @ 30 or 60 fps (HD720p)
- 1920 x 1080 @ 30 or 60 fps (HD1080p)
|
| Live video resolutions (encode/decode) |
- 176 x 144@30 fps (QCIF)
- 352 x 288@30 fps (CIF)
- 512 x 288@30 fps (w288p)
- 576 x 448@30 fps (448p)
- 768 x 448@30 fps (w448p)
- 704 x 576@30 fps (4CIF)
- 1024 x 576@30 fps (w576p)
- 640 x 480@30 fps (VGA)
- 800 x 600@30 fps (SVGA)
- 1024 x 768@30 fps (XGA)
- 1280 x 1024@30 fps (SXGA)
- 1280 x 720@30 fps (720p30)
- 1280 x 768 @ 30 fps (WXGA)
- 1920 x 1080 @ 30 fps (1080p30)*
- 1440 x 900 @ 30 fps (WXGA+)*
- 1680 x 1050 @ 30 fps (WSXGA+)*
- 1600 x 1200 @ 30 fps (UXGA)*
- 512 x 288 @ 60 fps (w288p60)*
- 768 x 448 @ 60 fps (w448p60)*
- 1024 x 576 @ 60 fps (w576p60)*
- 1280 x 720 @ 60 fps (720p60)
* Requires premium resolution option
|
| Audio standards |
- G.711
- G.722
- G.722.1
- 64/128 kbps MPEG4 AAC-LD
|
| Audio features |
- CD-quality 20-kHz stereo
- Acoustic echo canceling
- Automatic Gain Control (AGC)
- Automatic noise reduction
- Active lip synchronization
|
| Dual stream |
- H.239 (H.323) dual stream
- Binary Floor Control Protocol (BFCP) (SIP) dual stream
- Support resolutions up to 1080p (1920 x 1080)
|
| Multipoint support |
- Four-way embedded SIP/H.323 multipoint reference MultiSite
- Cisco TelePresence MultiWay support [requires Cisco VCS and Cisco TelePresence Multipoint Control Unit (MCU)]
- Ability to natively join multipoint conferences hosted on Cisco TelePresence Multipoint Switch
|
| Multisite features (embedded multipoint) |
- Adaptive SIP/H.323 MultiSite; resolution up to 576p30
- Three-way resolution up to 720p30
- Four-way resolution up to 576p30
- Full individual audio and video transcoding
- Individual layouts in multisite continuous presence
- H.323/SIP and voice over IP (VoIP) in the same conference
- Support for presentation (H.239 and BFCP) from any participant at resolutions up to 1080p30/SXGA
- Best impression (automatic continuous presence layouts)
- H.264, encryption, and dual stream from any site
- IP Downspeeding
- Dial in and dial out
- Conference rates up to 6 Mbps
|
| Protocols |
|
| Network interfaces |
One LAN or Ethernet (RJ-45) 10/100/1000 Mbps for LAN |
| Other interfaces |
- Bluetooth for future applications
- RJ-45 for service
|
| IP network features |
- Domain Name System (DNS) lookup for service configuration
- Differentiated Services (QoS)
- IP adaptive bandwidth management (including flow control)
- Auto gatekeeper discovery
- Dynamic playout and lip-sync buffering
- H.245 DTMF tones in H.323
- Date and time support with Network Time Protocol (NTP)
- Packet loss-based down-speeding
- DNS-based Uniform Resource Identifier (URI) dialing
- TCP/IP
- Dynamic Host Configuration Protocol (DHCP)
- IEEE 802.1x network authentication
- IEEE 802.1q VLAN
- IEEE 802.1p (QoS and class of service [CoS])
- Cisco ClearPath
- Medianet: Mediatrace and metadata
|
| Firewall traversal |
- Cisco TelePresence Expressway Technology
- H.460.18 and H.460.19 Firewall Traversal
|
| Embedded encryption |
- H.323 and SIP point-to-point
- Standards-based: H.235v3 and Advanced Encryption Standard (AES)
- Automatic key generation and exchange
- Supported in dual stream
|
| Security features |
- Management via Secure HTTP (HTTPS) and Secure Shell (SSH) Protocol
- IP administration password
- Administrator Menu password
- Disable IP services
- Network settings protection
|
| Cisco TelePresence Multiway |
Multiway conferencing helps enable video endpoint users to introduce a third party into an existing call utilizing a Cisco TelePresence MCU |
| System management |
- Support for the Cisco TelePresence Management Suite (TMS) and Cisco TelePresence Multipoint Switch (with software release TC 5.0 or later)
- Total management through embedded Simple Network Management Protocol (SNMP), Telnet, SSH, XML, and Simple Object Access Protocol (SOAP)
- Remote software upload: Through web server, Secure Copy Protocol, HTTP, and HTTPS
|
| Directory services |
- Support for local directories (My Contacts)
- Corporate directory
- Unlimited entries using server directory supporting Lightweight Directory Access Protocol (LDAP) and H.350
- Unlimited number for corporate directory (available with Cisco TelePresence Management Suite)
- Local directory: 200 numbers
- Received calls
- Placed calls
- Missed calls with date and time
|
