Description

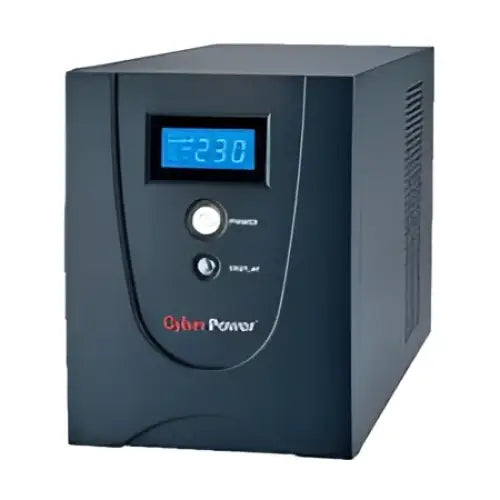

| Model | VALUE2200ELCD |
| Capacity (VA/Watts) | 2200VA / 1320W |
| Energy-Saving Technology | Yes |
| Input | |
| Frequency Range | 47 ~ 63 Hz (Auto Sensing) |
| Input Plug Type | IEC 320 C14 |
| Output | |
| UPS Outlets (Numbers) | (4) AU Outlets |
| On Battery Output Voltage | Simulated Sine Wave at 230Vac +/- 5% |
| On Battery Output Frequency | 50Hz / 60 Hz +/- 1% |
| Transfer Time (Typical) | 4ms |
| Overload Protection | On Utility: Fuse & Internal Current Limiting / On Battery: Internal Current Limiting |
| AVR | Yes |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| Physical | |
| Dimensions(H x W x D)(mm) | 180 x 140 x 326 |
| Weight(kg) | 14.5 |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery |
12V 9AH x 2 |
| Typical Recharge Time | 8 Hours |
| Runtimes | |
| Half-load / Full-load (mins) | 8 / 2 |
| Status Indicators | |
| Indicators | Power On / Using Battery |
| Audible Alarms | On Battery, Low Battery, Overload |
| Multi-Function LCD Readout | Yes |
| Communication | |
| Power Management Software | PowerPanel® Personal Edition |
| Management | |
| Self Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| Connectivity Ports | USB, Serial |
