Description
Quick Specifications
Manufacturer Specifications
| Technical specifications | 1600 USB |
| Rating (VA/W) | 1600VA/900W |
| Electrical Characteristics | |
| Technology | Line-interactive |
| Input nominal voltage | 220 - 240 V |
| Input voltage windows without using battery | 140 - 300 V |
| Output voltage | 230V |
| Input frequency range | 50 / 60 Hz (45 - 65 Hz working range) |
| Connection | |

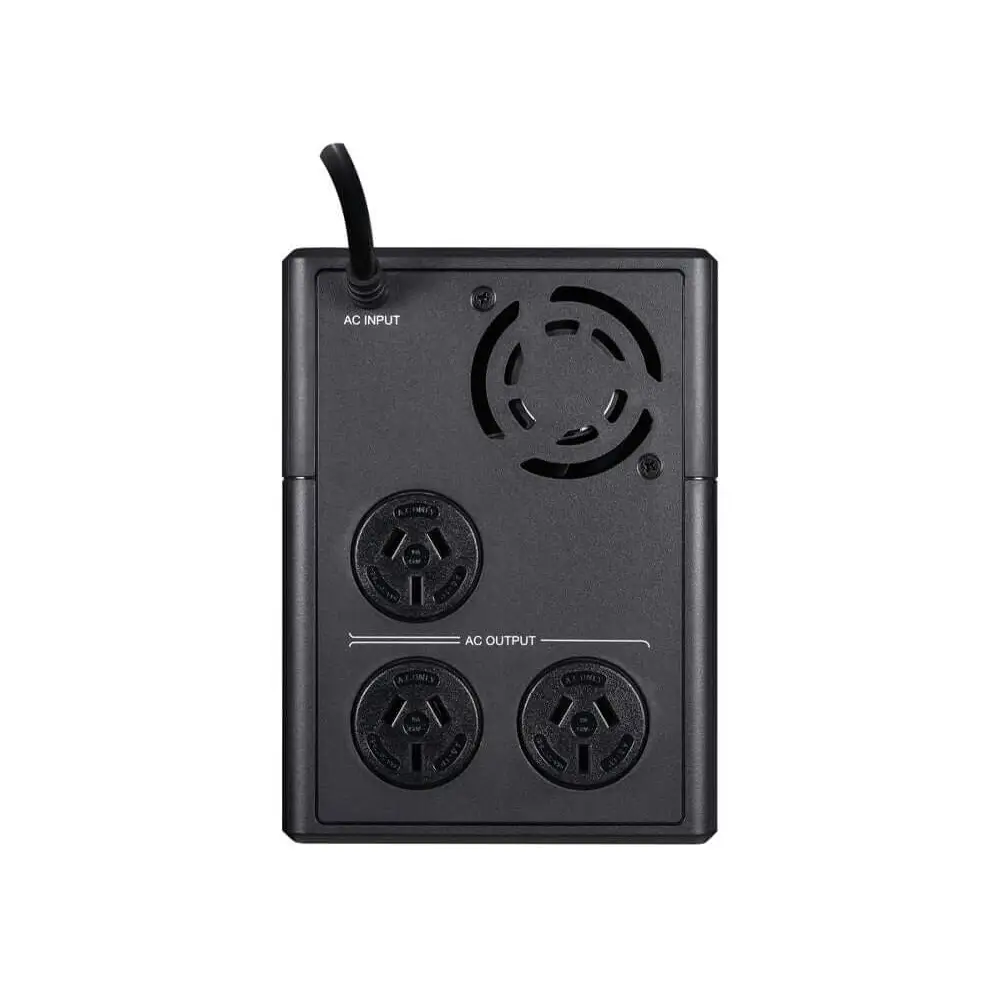

| Number of AUS outlets | 3 |
| Battery | |
| Typical backup time for 1 PC | 42 min |
| Typical backup time for 2 PC | 19 min |
| Typical backup time for 3 PC | 8 min |
| Typical backup time for 4 PC | n/a |
| Battery management | Constant battery recharge, cold start |
| Communication | |
| Communication port | 1 USB port |
| Eaton UPS Companion software | Available on eaton.com/downloads |
| Operating conditions, Standards and Approvals | |
| Operating temperature | 0 to 40°C |
| Noise level | <25dBA (line mode) |
| <40dBA (battery or AVR mode) | |
| Certifications | EN IEC 62040-1:2019 ; EN 62040-2:2006 ; IEC 62040-2: 2016, IEC 62040-3: 2021 ; CE ; C-tick |
| Dimensions D x H x W / Weight | |
| UPS Dimensions (mm) | 330x180x133 |
| UPS Weight (kg) | 9.3 |
| Customer Service & Support | |
| Warranty | 2 years |
