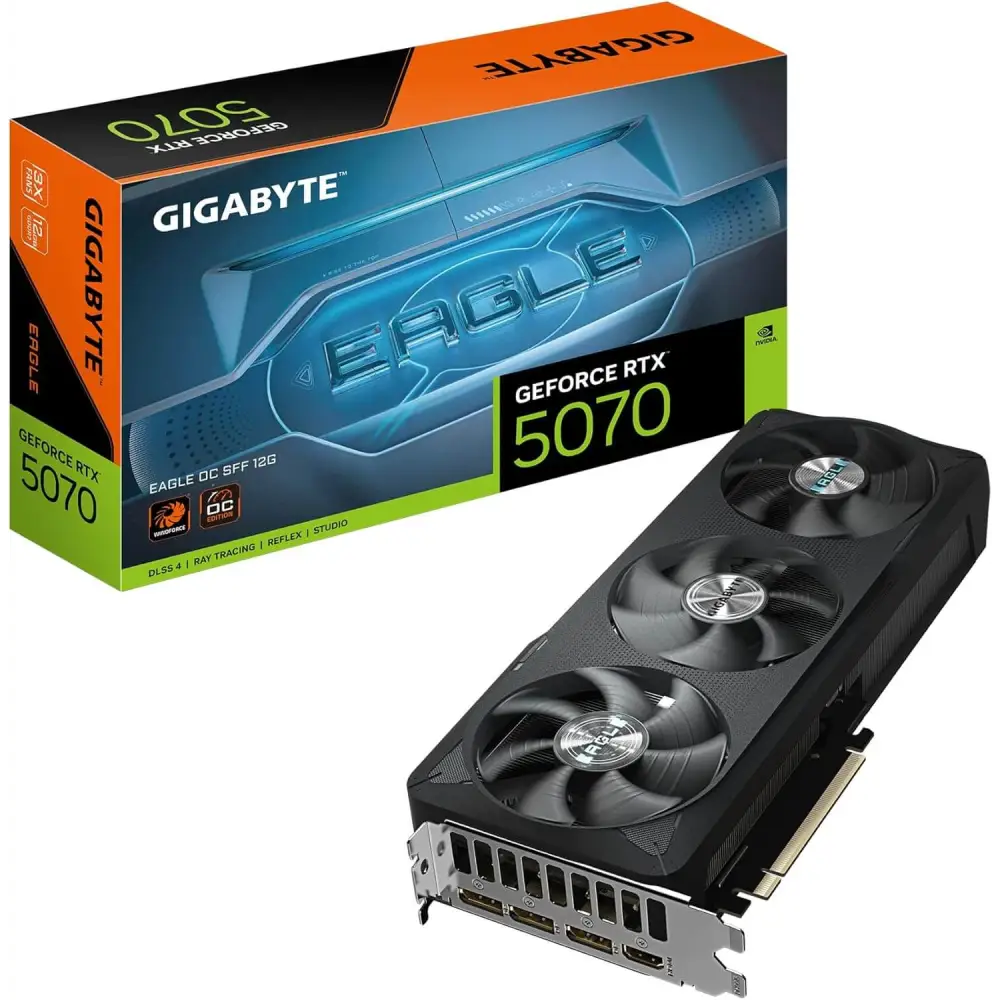

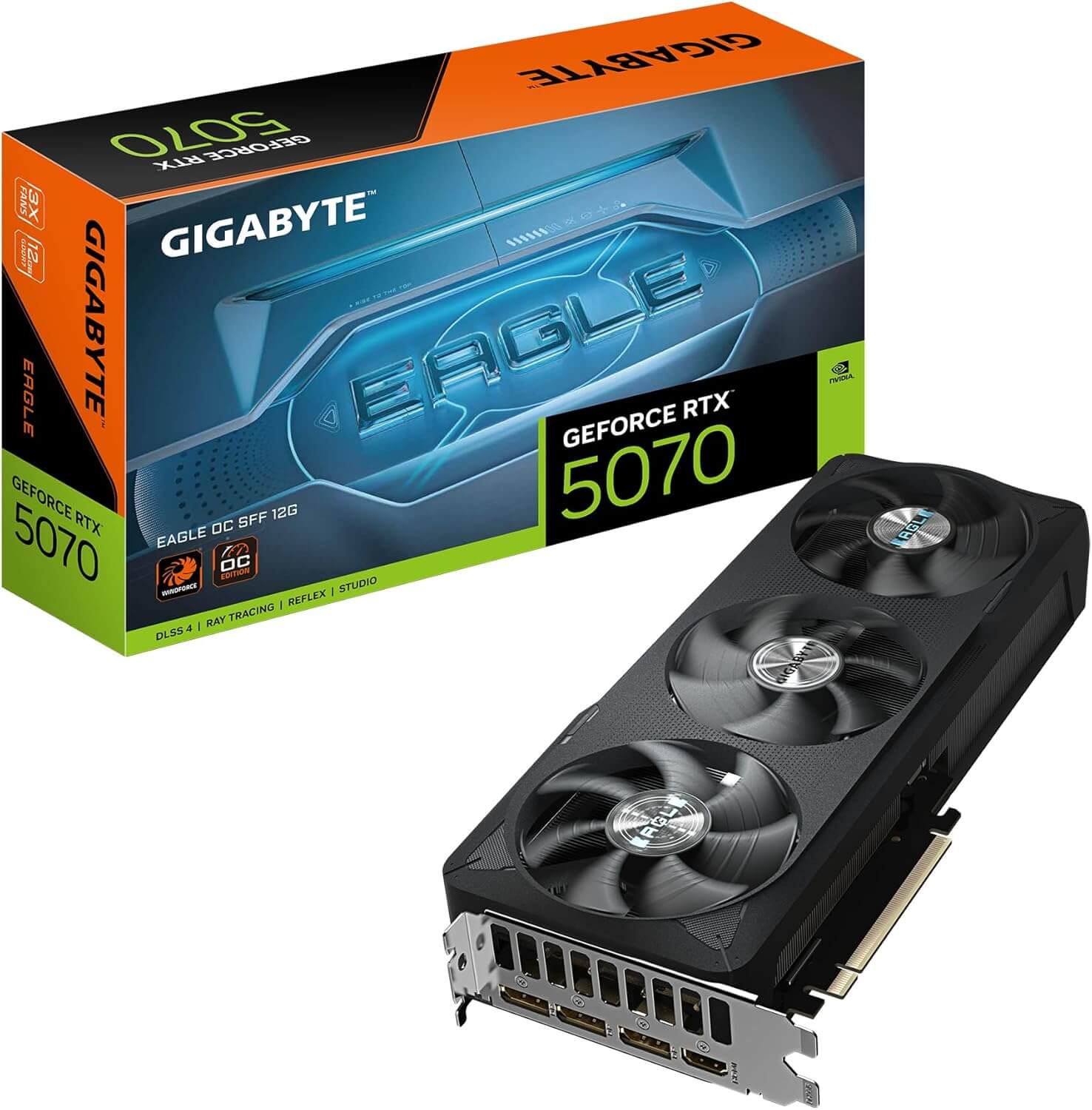

Gigabyte GeForce RTX 5070 Eagle OC SFF 12G Graphics Card (GV-N5070EAGLE OC-12GD)

Core Clock

2587 MHz (Reference card : 2512 MHz)

CUDA® Cores

6144

Memory Clock

28 Gbps

Memory Size

12 GB

Memory Type

GDDR7

Memory Bus

192 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=290 W=120 H=50 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

750W

Power Connectors

16 Pin*1

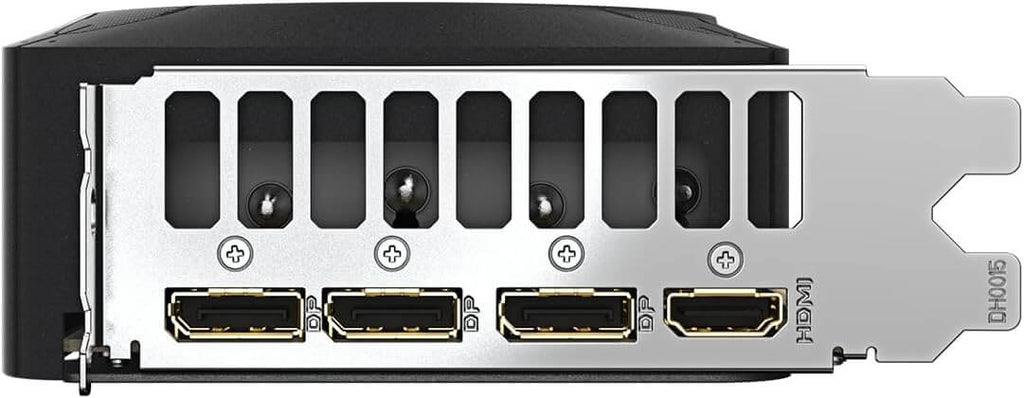

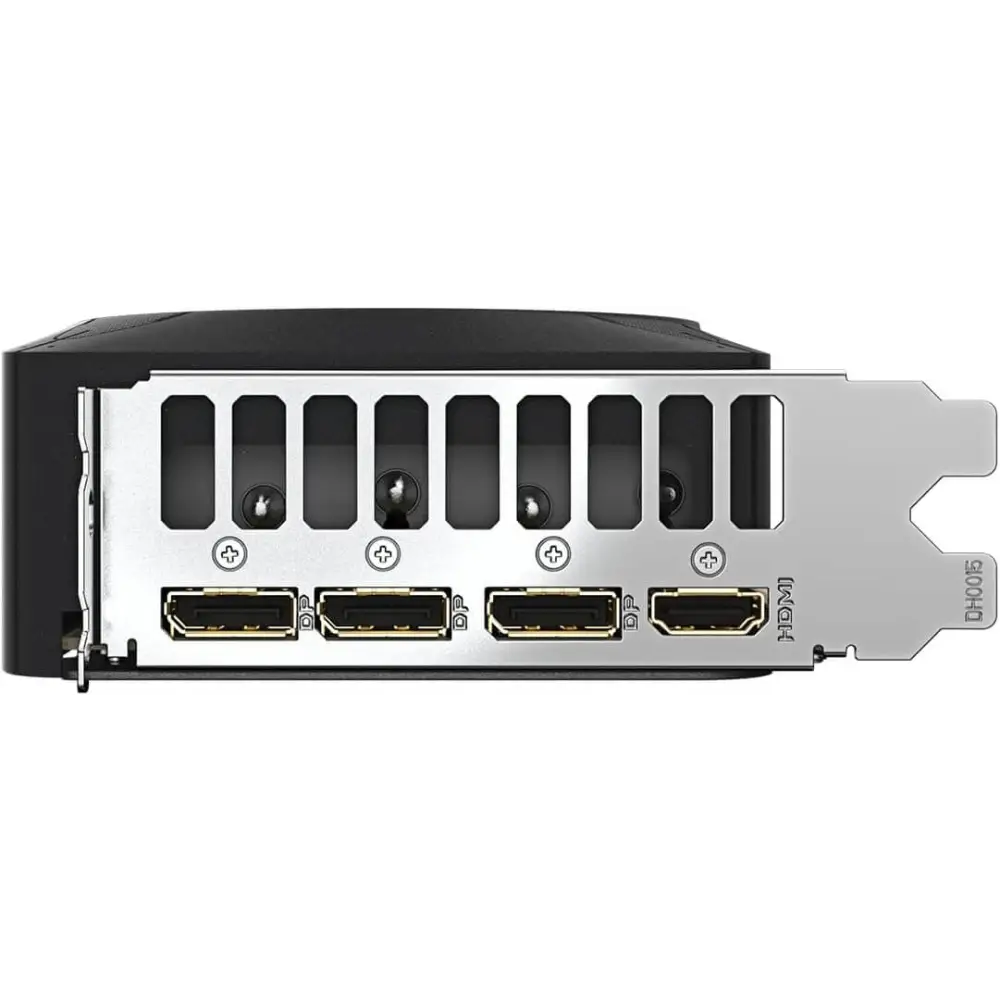

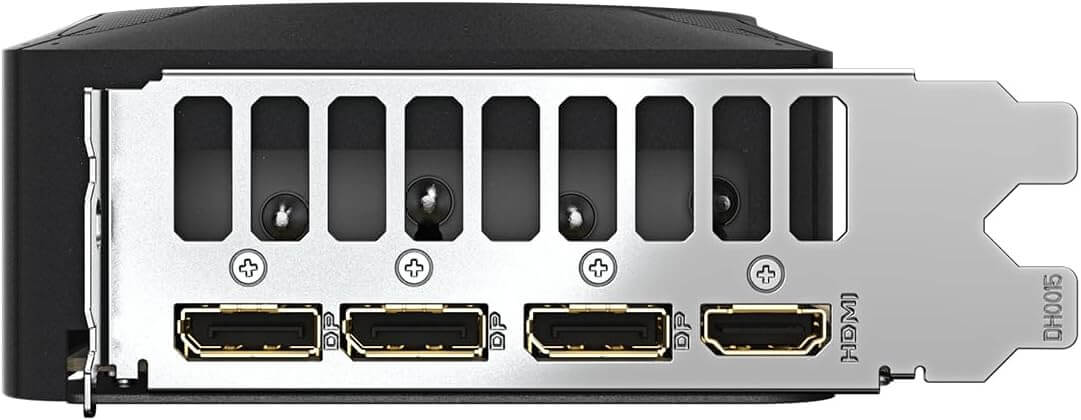

Output

DisplayPort 2.1b *3

HDMI 2.1b *1

Accessories

1. Quick guide

2. 1x 12V-2x6 to 2x PCIe 8pin adapter
