Description

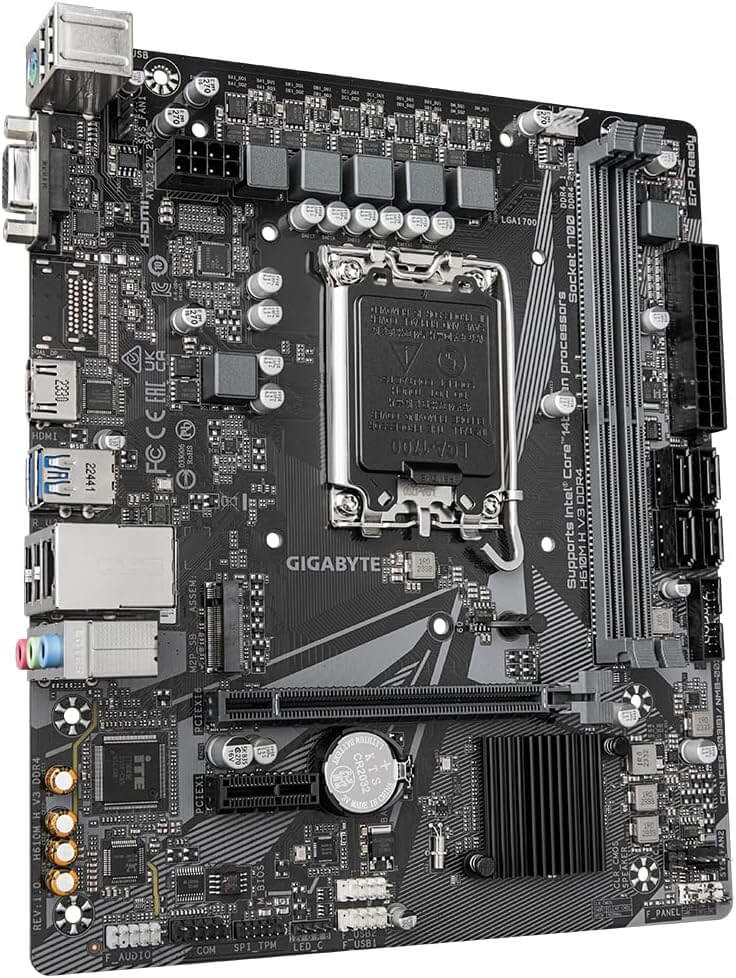

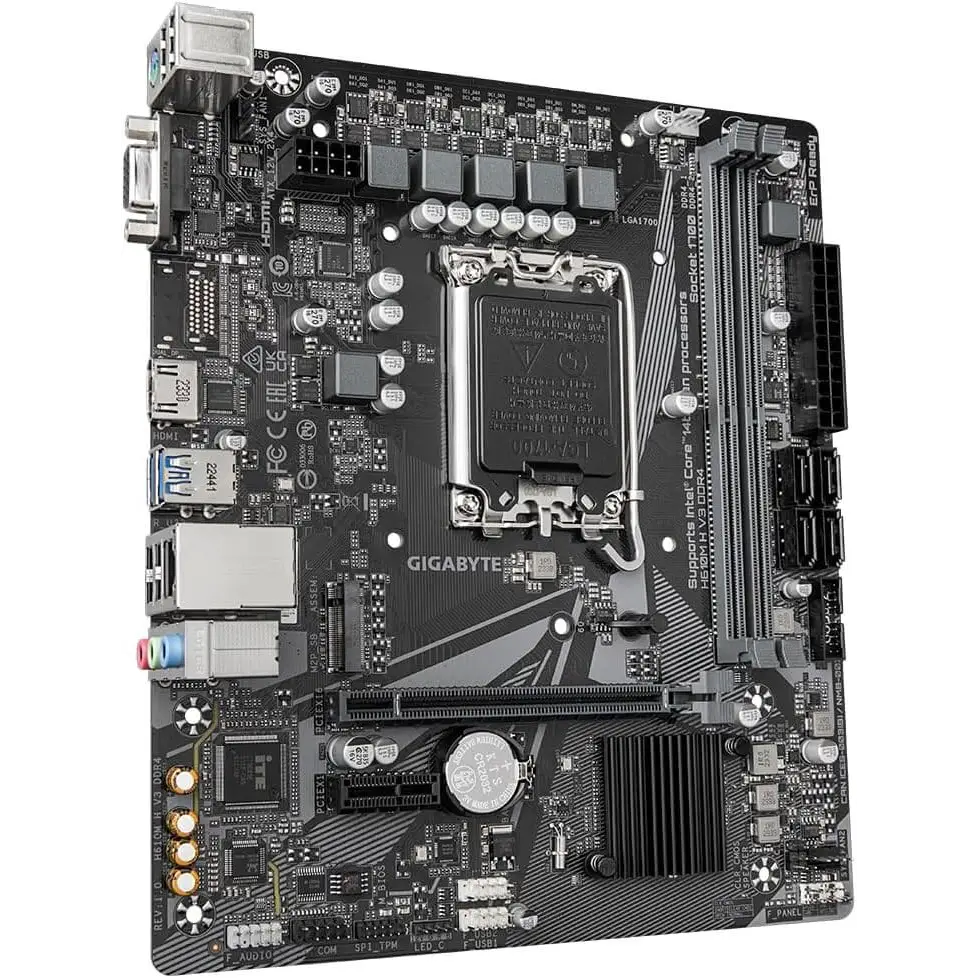

Gigabyte H610M S2H V2 DDR4 1.0 Intel LGA 1700 mATX Motherboard, 2x DDR4 ~64GB, 1x PCI x16=, 1x PCI=E x1, 1x M.2, 4x SATA, 2x USB3.2, 4x USB 2
FEATURES:
Supports 13th/12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
SPECIFICATIONS:
CPU
LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Onboard Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Expansion Slots:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
1 x M.2 connector
4 x SATA
USB:
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
