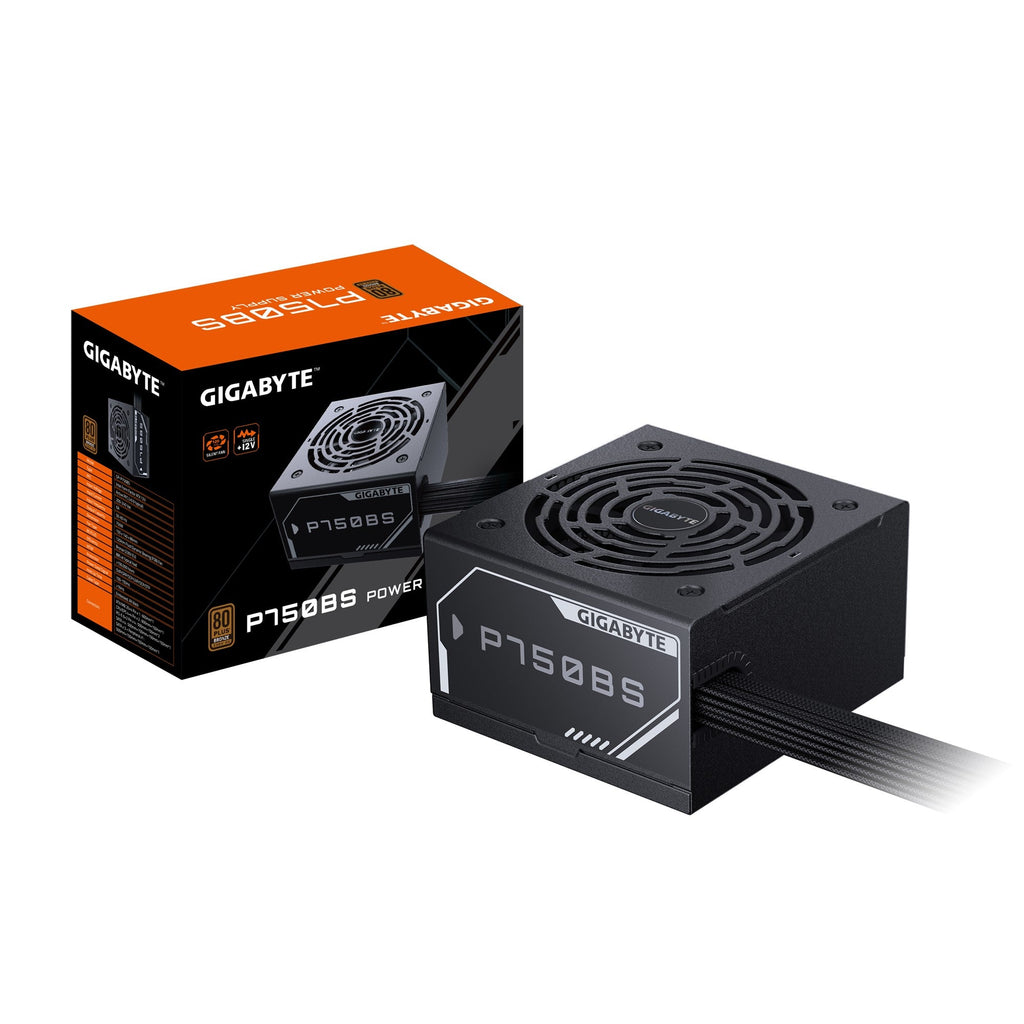

Gigabyte P750BS Power Supply, 750W, ATX12V, 80 PLUS Bronze Fan, Type 120mm Fluid Dynamic Bearing fan

Gigabyte P750BS Power Supply, 750W, ATX12V, 80 PLUS Bronze Fan, Type 120mm Fluid Dynamic Bearing fan >100,000 hours, 3 years warranty

Model GP-P750BS
Type Intel Form Factor ATX 12V
PFC Active PFC (>0.9 typical)
Input Voltage 200-240 Vac
Input Current 6A
Input Frequency 60-50 Hz
Output Capacity 750W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
80 Bronze (230V EU)
Efficiency 88% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-E 6+2 Pin x 4 : 500mm+150mm*2
SATA x 4 : 500mm+150mm+150mm+150mm*1
SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
