Description
Essentials

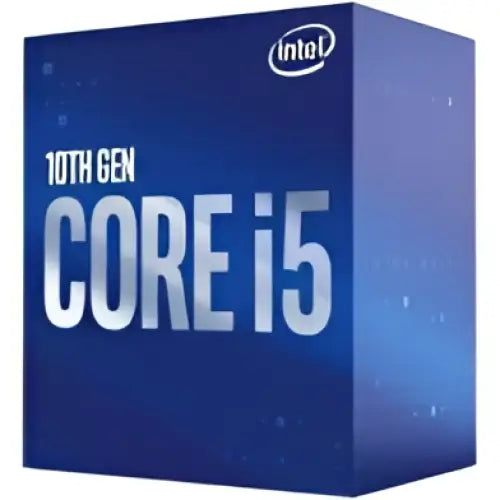

- Product Collection10th Generation Intel® Core™ i5 Processors
- Code NameProducts formerly Comet Lake
- Vertical SegmentDesktop
- Processor Numberi5-10400F
- StatusLaunched
- Launch DateQ2'20
- Lithography14 nm
- Use ConditionsPC/Client/Tablet
Performance Specifications
- # of Cores6
- # of Threads12
- Processor Base Frequency2.90 GHz
- Max Turbo Frequency4.30 GHz
- Cache12 MB Intel® Smart Cache
- Bus Speed8 GT/s
- Intel® Turbo Boost Technology 2.0 Frequency‡4.30 GHz
- TDP65 W
Supplemental Information
Memory Specifications
- Max Memory Size (dependent on memory type)128 GB
- Memory TypesDDR4-2666
- Max # of Memory Channels2
- Max Memory Bandwidth41.6 GB/s
- ECC Memory Supported ‡No
Processor Graphics
- Processor Graphics ‡DISCREET GRAPHICS REQUIRED
Expansion Options
- Scalability1S Only
- PCI Express Revision3.0
- PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4
- Max # of PCI Express Lanes16
Package Specifications
- Sockets SupportedFCLGA1200
- Max CPU Configuration1
- Thermal Solution SpecificationPCG 2015C
- TJUNCTION100°C
- Package Size37.5mm x 37.5mm
Advanced Technologies
- Intel® Optane™ Memory Supported ‡Yes
- Intel® Thermal Velocity BoostNo
- Intel® Turbo Boost Max Technology 3.0 ‡No
- Intel® Turbo Boost Technology ‡2.0
- Intel® vPro™ Platform Eligibility ‡No
- Intel® Hyper-Threading Technology ‡Yes
- Intel® Virtualization Technology (VT-x) ‡Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
- Intel® Transactional Synchronization ExtensionsNo
- Intel® 64 ‡Yes
- Instruction Set64-bit
- Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle StatesYes
- Enhanced Intel SpeedStep® TechnologyYes
- Thermal Monitoring TechnologiesYes
- Intel® Identity Protection Technology ‡Yes
- Intel® Stable Image Platform Program (SIPP)No
Security & Reliability
- Intel® AES New InstructionsYes
- Secure KeyYes
- Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME
- Intel® OS GuardYes
- Intel® Trusted Execution Technology ‡No
- Execute Disable Bit ‡Yes
- Intel® Boot GuardYes
-
