Description

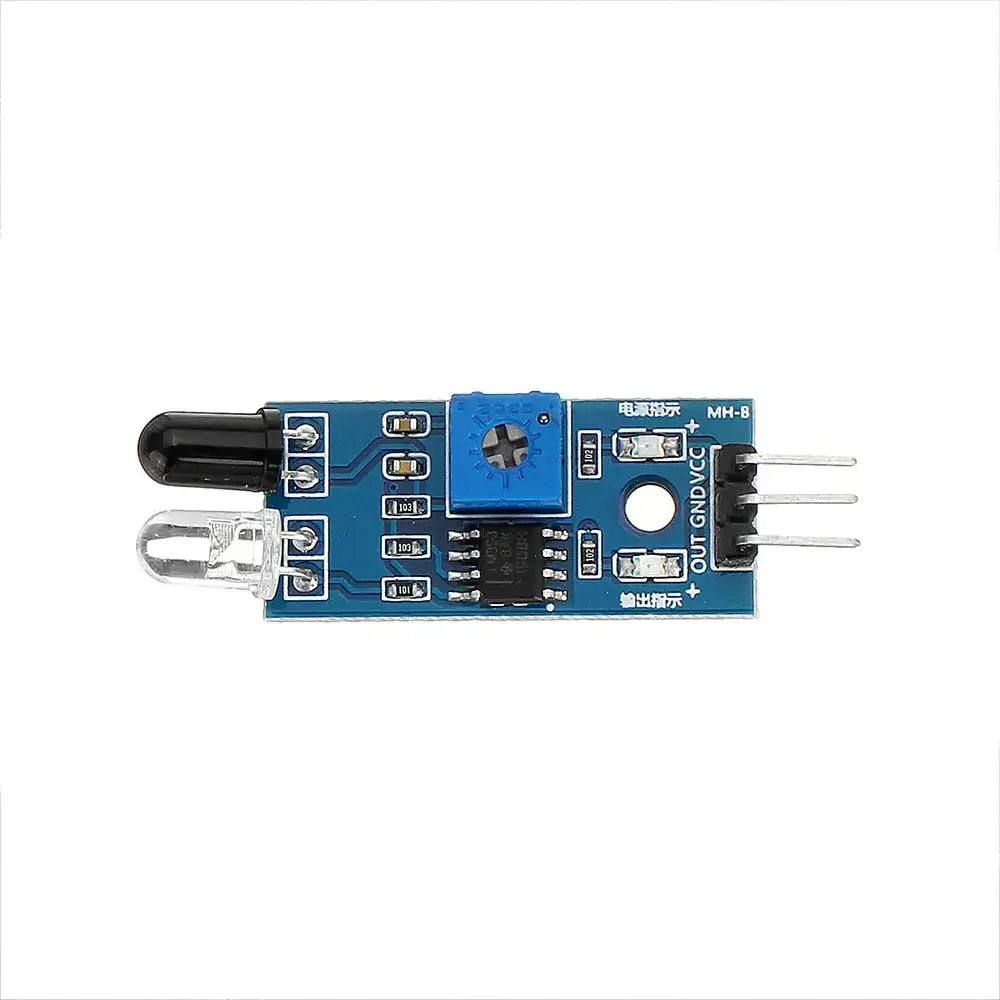

this IR sensor can detect obstacles in front of it. When an object is detected the green indicator light on the board will light up. There is a low-level output signal on the OUT port.
It has a detection range of 2-30 cm at an angle up to 35 degrees.
The detection distance can be changed by using the potentiometer. To increase rotate the dial clockwise.
Connect the OUT pin on the sensor module directly to you IO port.
It has a detection range of 2-30 cm at an angle up to 35 degrees.
The detection distance can be changed by using the potentiometer. To increase rotate the dial clockwise.
Connect the OUT pin on the sensor module directly to you IO port.
Connection: VCC-VCC; GND-GND; OUT-IO
Power: 3-5V
Size: 3.1CM * 1.5CM
Power: 3-5V
Size: 3.1CM * 1.5CM
Package Include:
1 x Infrared obstacle avoidance module
