Description

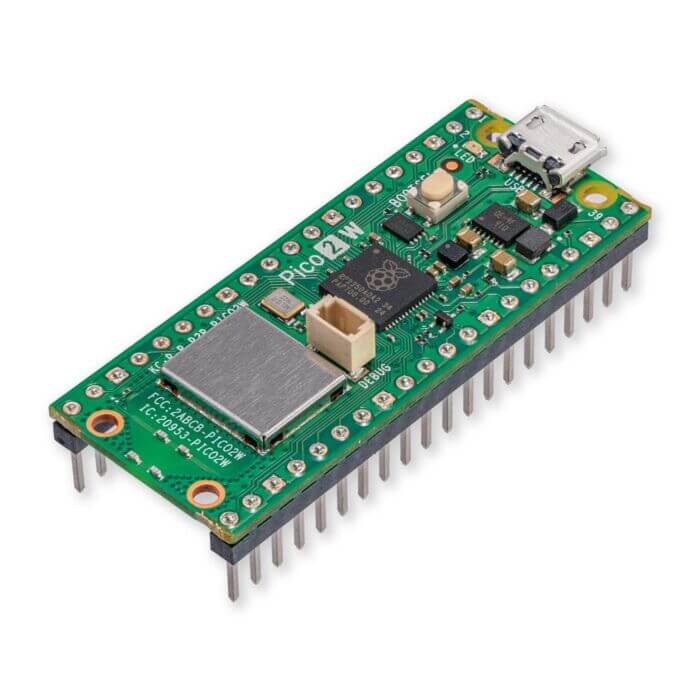

The Raspberry Pi Pico 2W with headers, ready to be used in solderless breadboards or with headers.
Make sure the USB cable you are using carries data like ours does.
The specs are the same as the original Pico 2W which include:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M-33 processor, flexible clock running up to 150 MHz
- Dual RISC-V Hazard3 cores
-
New Infineon CYW43439 wireless chip
- 2.4 GHz Wi-Fi 4 (802.11n)
- Bluetooth 5.2
- 520kB of SRAM, and 4MB of onboard Flash memory
- Castellated PCB allows soldering directly to carrier boards
- USB 1.1 Host and Device support
- Improved Low-power sleep and dormant modes
- Drag & drop programming using mass storage over USB
- 26 multi-function GPIO pins, including 3 that can be used for ADC
- 2× SPI, 2× I2C, 2× UART, 12-bit ADC, 16×controllable PWM channels
- In-built temperature sensor with independent ADC
- Accelerated floating point libraries on-chip
- 12× Programmable IO (PIO) state machines for custom peripheral support
- Input Voltage Range: 1.8V to 5.5V DC
- Form factor: 21 mm × 51 mm

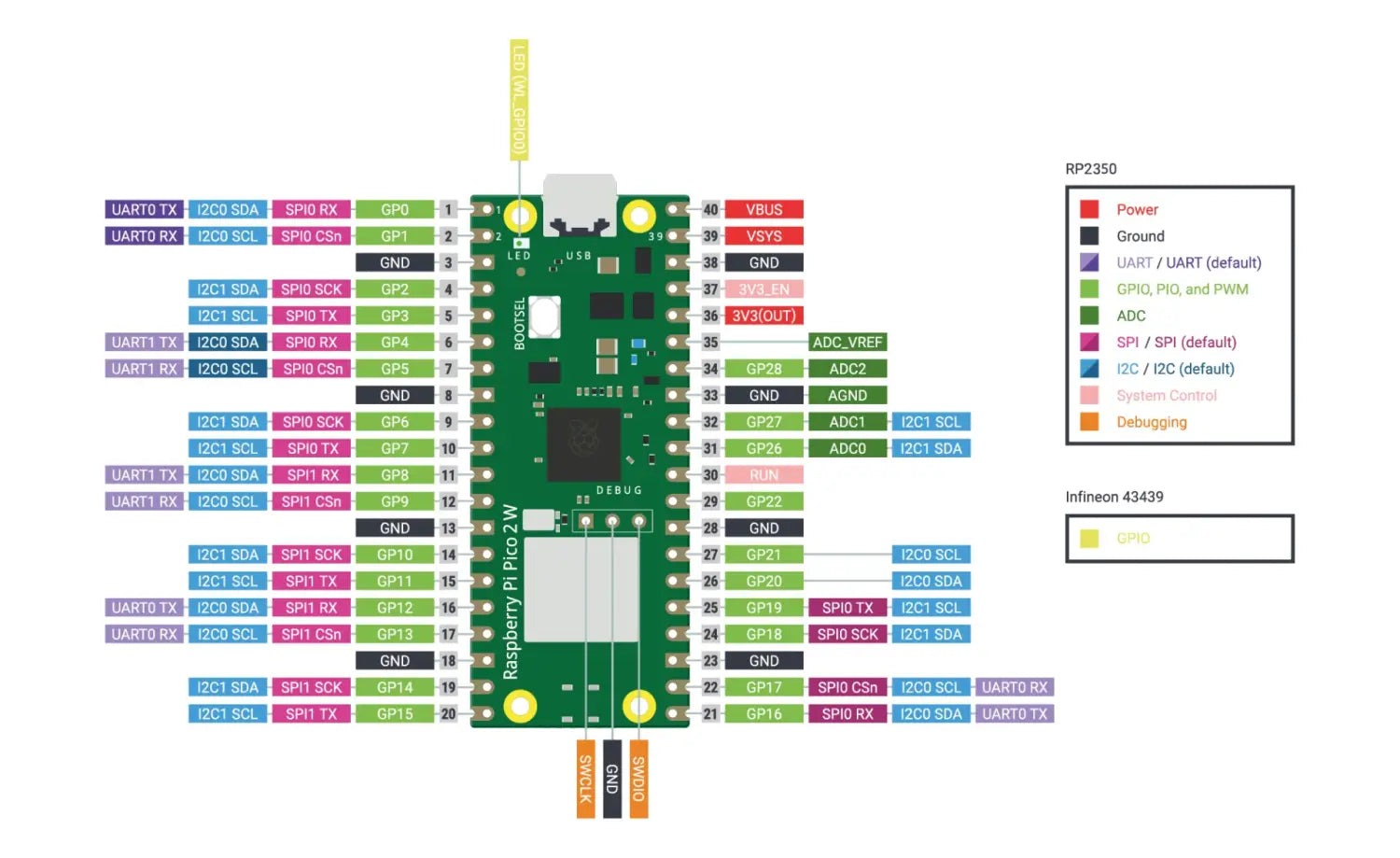

Pinout
