Description

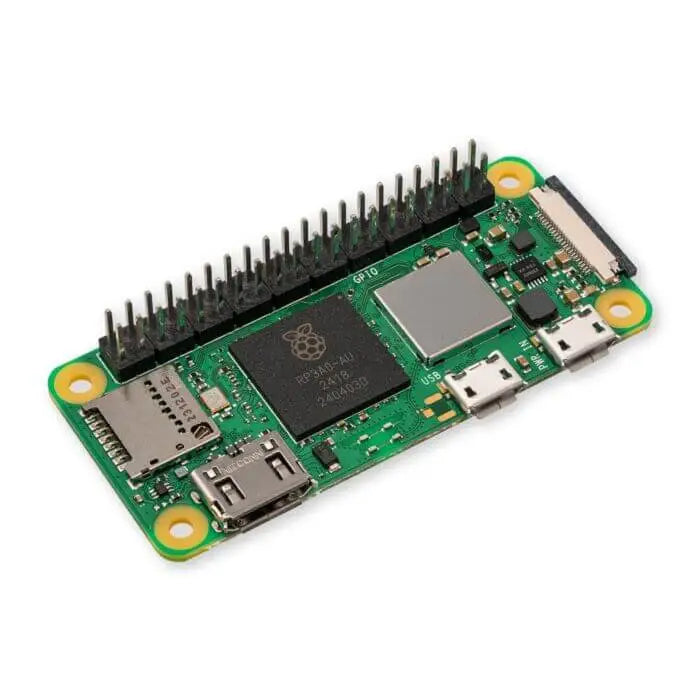

The Raspberry Pi Zero 2 W with pre-soldered male headers delivers quad-core computing power in an ultra-compact form factor, making it perfect for space-constrained projects and prototypes. This versatile single-board computer combines the convenience of pre-soldered GPIO headers with wireless connectivity, enabling rapid development and deployment of innovative solutions in robotics, automation, and educational projects.
Technical Specifications
- Quad-core 64-bit ARM Cortex-A53 processor running at 1GHz
- 512MB LPDDR2 RAM
- 2.4GHz IEEE 802.11b/g/n wireless LAN and Bluetooth 4.2/BLE
- Mini HDMI port for display output (Output Only)
- One micro-USB supports both power and data (labelled USB) and the other is just for power
- CSI camera connector for Raspberry Pi camera modules
- Power supply requirement: 5.1V DC up to 2.5A- we recommend the Official micro-USB power supply
- Graphics capabilities: H.264 encode/decode (1080p30), OpenGL ES 1.1, 2.0
- MicroSD card slot for operating system and storage
- Operating system support: Raspberry Pi OS and compatible Linux distributions
- Dimensions: 65mm × 30mm
Installation and Setup
Getting started with the Raspberry Pi Zero 2 W has never been easier:
- Insert a microSD card loaded with Raspberry Pi OS
- Connect the official 5.1V power supply to the micro USB port
- For display output, connect a monitor using the Mini HDMI to HDMI adapter
- Connect USB peripherals using the Micro USB OTG Host Cable
- Boot up and configure wireless connectivity through the Raspberry Pi OS interface
Compatibility
The Raspberry Pi Zero 2 W is compatible with:
- Official Raspberry Pi Camera modules via the Camera Adapter Cable
- Standard HATs and pHATs designed for 40-pin Raspberry Pi GPIO
- Most USB peripherals via OTG adapter
- Various cases including the Official Raspberry Pi Zero Case
- Standard microSD cards for storage
Additional Resources
- Official Raspberry Pi documentation and tutorials
- Active community forums for project support
