Starlink Gen 3 (Standard 4) Mount Kit - Atco, Demountable, Site Hut, Fence or Wall

A multi purpose Starlink compatible wall mounting kit, suitable for site huts & fences, Atco structures & more

The SpaceTek Atco Wall Mount kit for Starlink Gen 3 (Standard 4) is purpose-built for installation onto composite wall systems such as cool room panels, Atco style demountables, site huts, and mining accommodation buildings including Colorbond fences or Colorbond cladded structures.

It provides a strong, stable mounting solution without needing to penetrate roof structures or locate internal timber or steel framing, which is often missing in insulated panel construction or certain types of demountable strucutres.

This wall mount uses a compression-style fixing system that clamps securely onto panels up to 100mm thick, distributing wind and structural forces evenly across the panel surface. With a full 1 metre mounting pole and adapter, it provides approximately 300mm of elevation from the mounting arm to the terminal, ensuring improved clearance and reliable sky visibility for your Gen 3 terminal.

Kit Inclusions:

• 1 x Gen 3 (V4), Aluminium Pole Adator & Grub Screws -

  • Choice of Standard Duty (cast) or Heavy Duty (machined aluminium from billet) Pole Adaptor.

  • Choose heavy duty where strong wind and/or environmental conditions require additional strength.

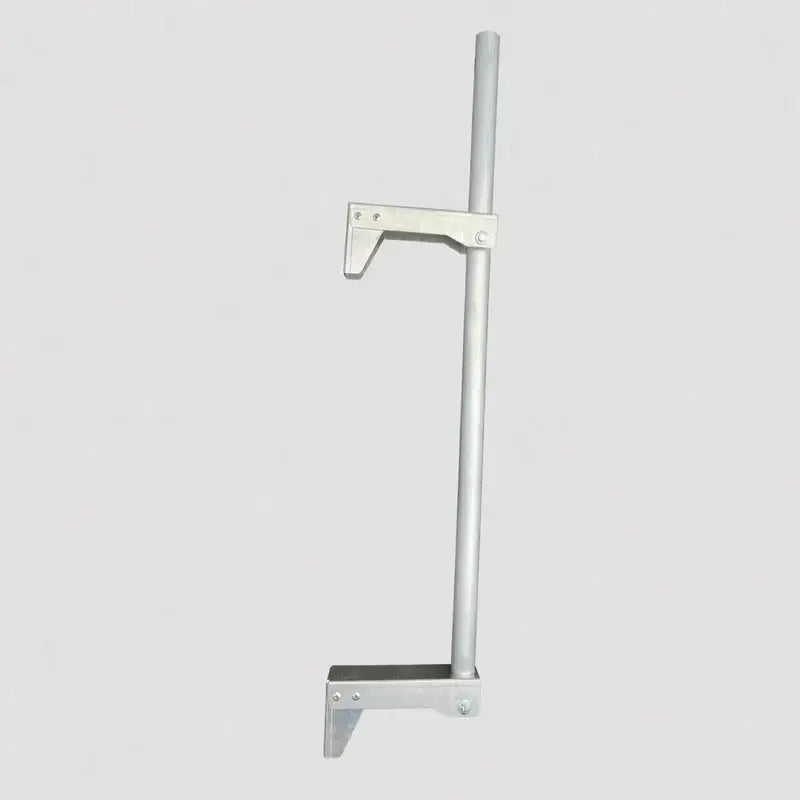

• 2 x Aluminium Wall Mount Brackets

  • Choice of Standard Duty (shorter) or Heavy Duty (longer) wall brackets (see photos).

• 4 x Aluminium Wall Mount Spacers

• 1 x Aluminium Pole Mast 1m in Length

• Generic Fastener Pack (please check suitability for your specific install)

Key Features

✅ Compression Fixing System

Clamps directly onto insulated wall panels using long-thread bolts and large square washers, removing the need for internal framing.

✅ Load Distribution for Safety

Multiple pickup points spread wind forces across a wider area of the panel, improving long-term stability.

✅ No Roof Penetration Required

Installs entirely through the wall panel, reducing risk of leaks or damage to roofing.

✅ 1m Vertical Mounting Rail

Provides roughly 300mm rise from the arm to the Starlink terminal including its leg, giving better clearance above obstacles.

✅ Ideal for Portable Buildings

Perfect for Atco huts, demountables, site offices, mine-site accommodation, and cool room panel structures.

Installation Overview

1. Position the mount vertically on the chosen section of the wall panel.

2. Mark and drill holes through the panel according to the mount’s pickup points.

3. Insert the 120mm bolts through the panel.

4. Fit the large square washers on the opposite side to distribute compression forces.

5. Tighten the bolts evenly to clamp the mount securely to the panel.

6. Attach the Starlink Gen 3 terminal to the top mounting pole with the adaptor.

7. Confirm elevation and alignment before final tightening.
