Description
Starlink Gen 3 (Standard 4) Tin Roof Mount Kit with Heavy Duty 40mm Pole Adapter

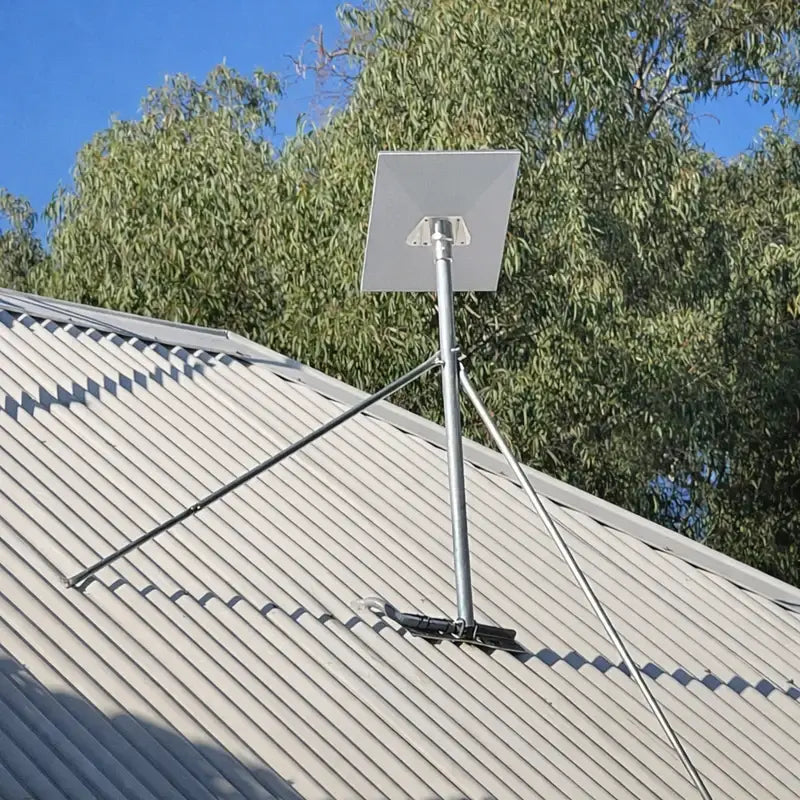

The Spacetek Heavy Duty Tin Roof Mount Kit is designed for permanent installation of the Starlink Gen 3 (aka Standard 4) rectangular terminal on corrugated metal roofing in high wind load and exposed environments. The system uses a reinforced mounting assembly combined with a heavy-duty machined aluminium Gen 3 to 40mm pole adapter, delivering increased rigidity and improved resistance to uplift and vibration.
Kit Inclusions:
- 1 x Gen 3 Heavy Duty Aluminium Pole Adaptor Kit
- 2 x Structural Telescopic Stay Bars (Galvanized Steel)
- 1 x Aluminium Base Plate (270mm x 75mm)
- 1 x Aluminium Pole Mast (choice of length)
- Generic Fastener Pack (please check suitability for your specific install)
💡Note: Our roof mounting kits do not come with a Starlink Dish. This can be purchased from Starlink.com or a major retailer.
Optional: If you require additional structural support for the stay bars, you may consider adding additional cleats to the stay bar mounting points on your roof.
Starlink Gen 3 (V4) terminals incorporate a thermal protection shut-off at approximately 50°C. The elevated pole configuration increases separation from heat-radiating metal roofing, improving airflow around the dish and reducing thermal loading during Australian summer conditions.
Multiple pole height options are available. Extended variants provide additional clearance over roof obstructions and allow space beneath the dish for secondary antennas, 4G failover equipment, point-to-point radios, or terrestrial TV hardware.
Key Features
✅ High Wind Load Design — Reinforced mounting system suited to exposed locations and wind-prone regions.
✅ Gen 3 (V4) Compatibility — Precision-engineered for the Starlink Gen 3 rectangular terminal.
✅ Heavy Duty 40 mm Pipe Adapter — Increased wall thickness and clamping surface for improved mast retention and load handling.
✅ Thermal Clearance Geometry — Elevated mounting height assists airflow and reduces roof-radiated heat contributing to 50 °C shut-off events.
✅ Extended Height Options — Longer poles improve line-of-sight and provide space for auxiliary communications equipment.
