Description

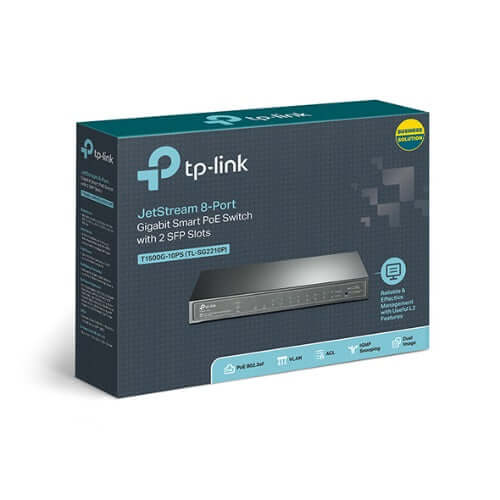

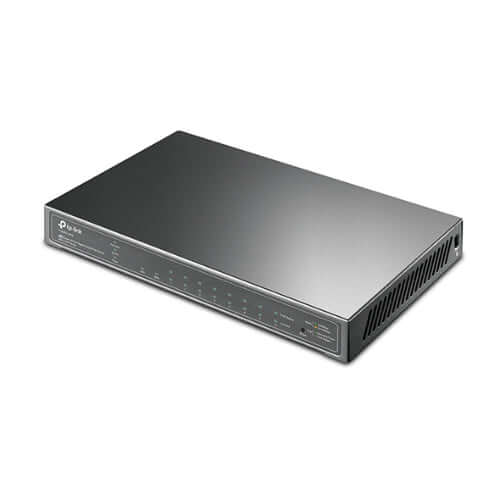

TP-Link T1500G-10PS (TL-SG2210P) JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features
Gigabit Ethernet connections on all ports provide full speed of data transferring
Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
WEB/CLI managed modes, SNMP, RMON bring abundant management features
Dual Firmware Image improves reliability and up-time of your network
ARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
Port8 obtain power from PoE source
(Auto-Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100~240VAC, 50/60Hz
External Power Adapter(Output: 48VDC/1.25A)
Power Consumption Maximum (PoE on): 64.9W
Maximum (PoE off): 9.9W
PoE Ports (RJ45) Standard: 802.3af compliant
PoE Ports: 8 Ports
Power Supply: 53W
Dimensions ( W x D x H ) 209 * 126 * 26mm
Max Power Consumption 9.92W (220V/50Hz with no PD connected)
64.89W (110V/60Hz with 53W PD connected)
Max Heat Dissipation 33.85 BTU/h (with no PD connected)
221.40 BTU/h (with 53W PD connected)
PERFORMANCE
Bandwidth/Backplane 20Gbps
Packet Forwarding Rate 14.9Mpps
MAC Address Table 8K
Jumbo Frame 9KB
