Description
-
Connect Display

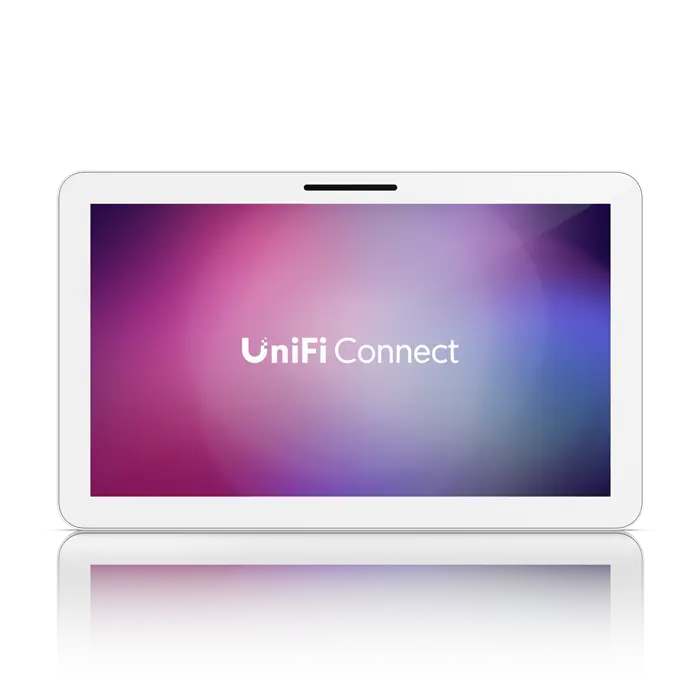

21.5" Full HD PoE++ touchscreen designed for interactive digital signage applications.
Ultra-bright 21.5" touch display
Displays media, web pages, and Android apps
Create dynamic digital signage content with UniFi Connect's layout creator
Included VESA mount adapter
Multiple mounting options*
PoE++ in*Mounts sold separately.
Mechanical
Dimensions
538.3 x 330 x 37 mm (21.2 x 13 x 1.5")
Weight
4.9 kg (10.8 lb)
Enclosure material
Plastic, aluminium
Mounting

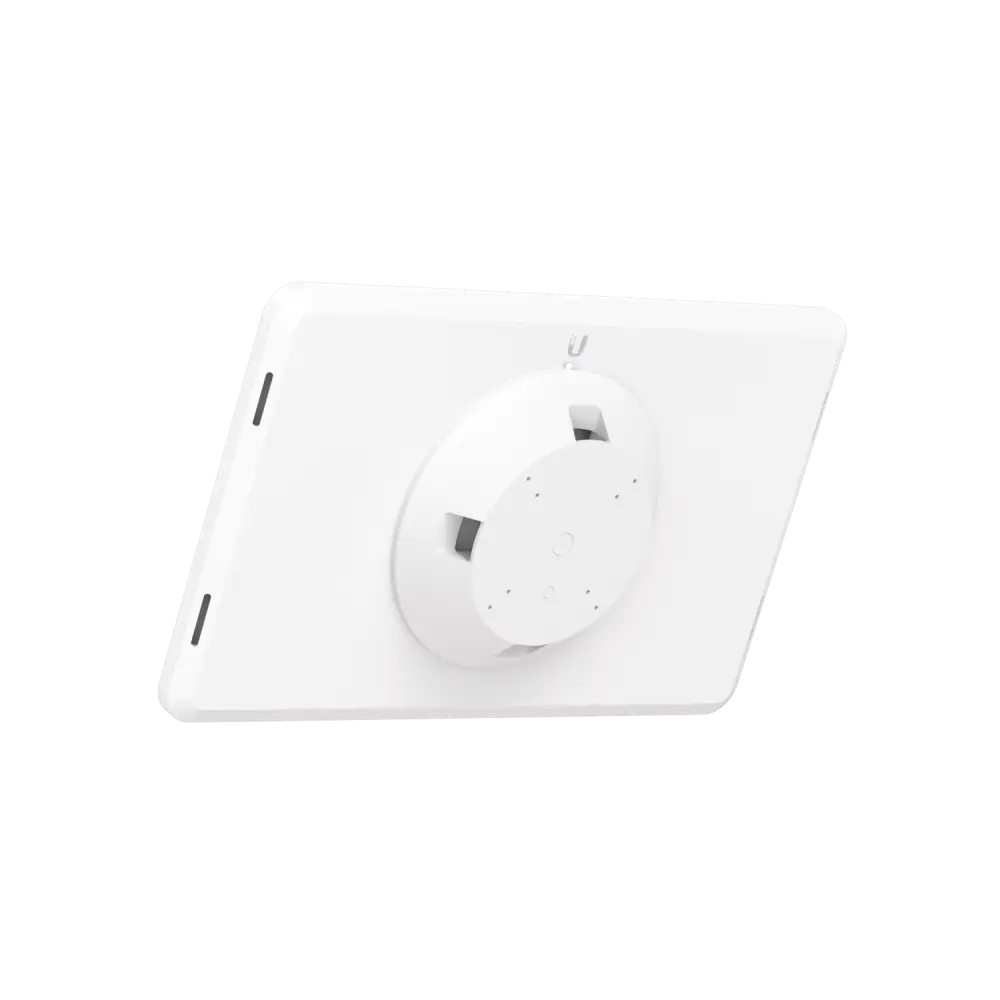

VESA mount adapter (included)
Table stand (sold separately)
Surface mount (sold separately)
Arm mount (sold separately)
Flush mount (sold separately)
Table stand (sold separately)
Surface mount (sold separately)
Arm mount (sold separately)
Flush mount (sold separately)
Hardware
Display size
546 mm (21.5") diagonal
Resolution
1920 x 1080 FHD (16:9)
Display luminance
250 nits (typical)
Touch screen technology
Capacitive multi-touch
Screen orientation
Portrait/landscape
Processor
Octa-core ARM® Cortex®-A53 at 2.2 GHz
Memory
Storage: 32 GB
RAM: 3 GB
RAM: 3 GB
Power method
PoE++
Power supply
UniFi PoE++ switch
Max. power consumption
27W
Connectivity
(1) GbE RJ45 port
(1) USB-C port (Reserved feature for future function update)
Bluetooth® 4.2
(1) USB-C port (Reserved feature for future function update)
Bluetooth® 4.2
Button
Factory reset
Microphone
Yes
Speaker
Yes
Ambient operating temperature
0 to 40° C (32 to 104° F)
Ambient operating humidity
20 to 90% noncondensing
Certifications
CE, FCC, IC
Software
Management application
UniFi Connect web: Version 2.1.14 and later
UniFi Connect iOS™ and Android™: Version 1.0.0 and later
UniFi Connect iOS™ and Android™: Version 1.0.0 and later
