Description

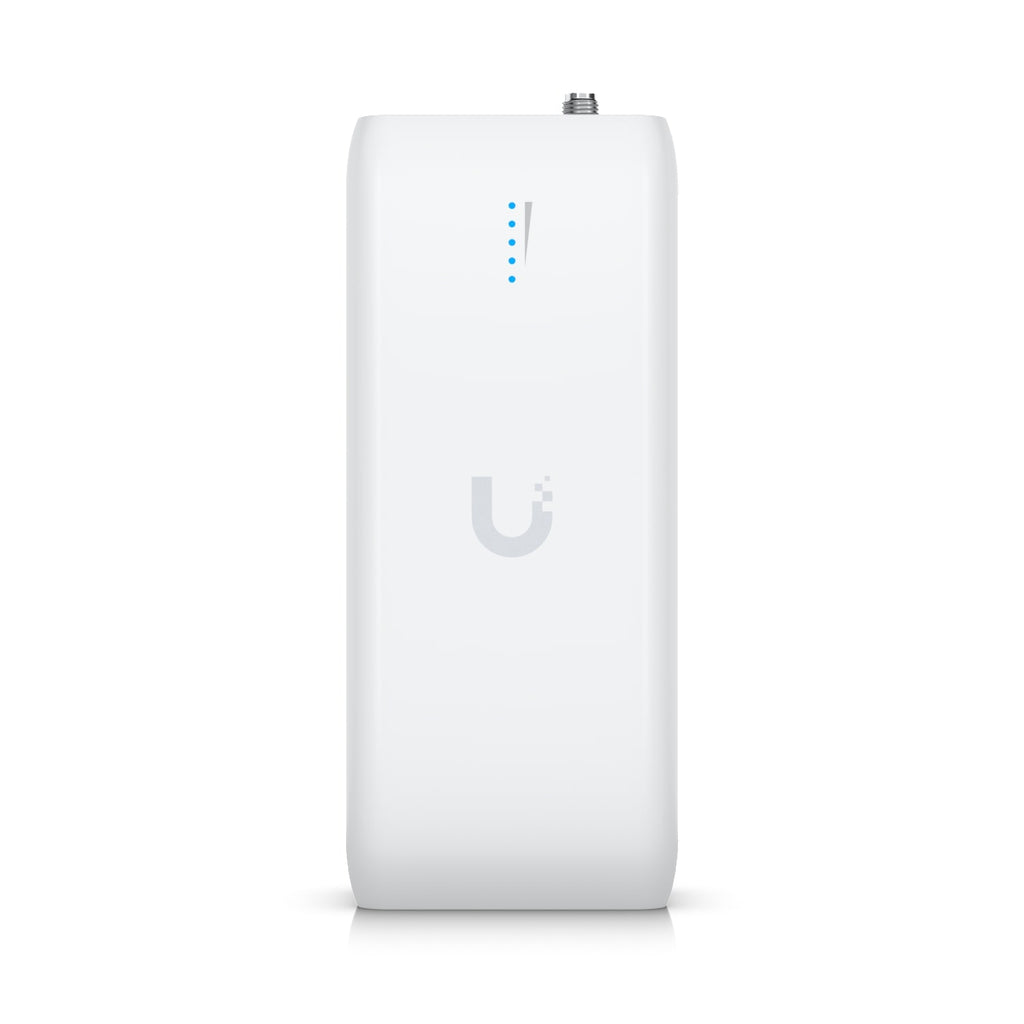

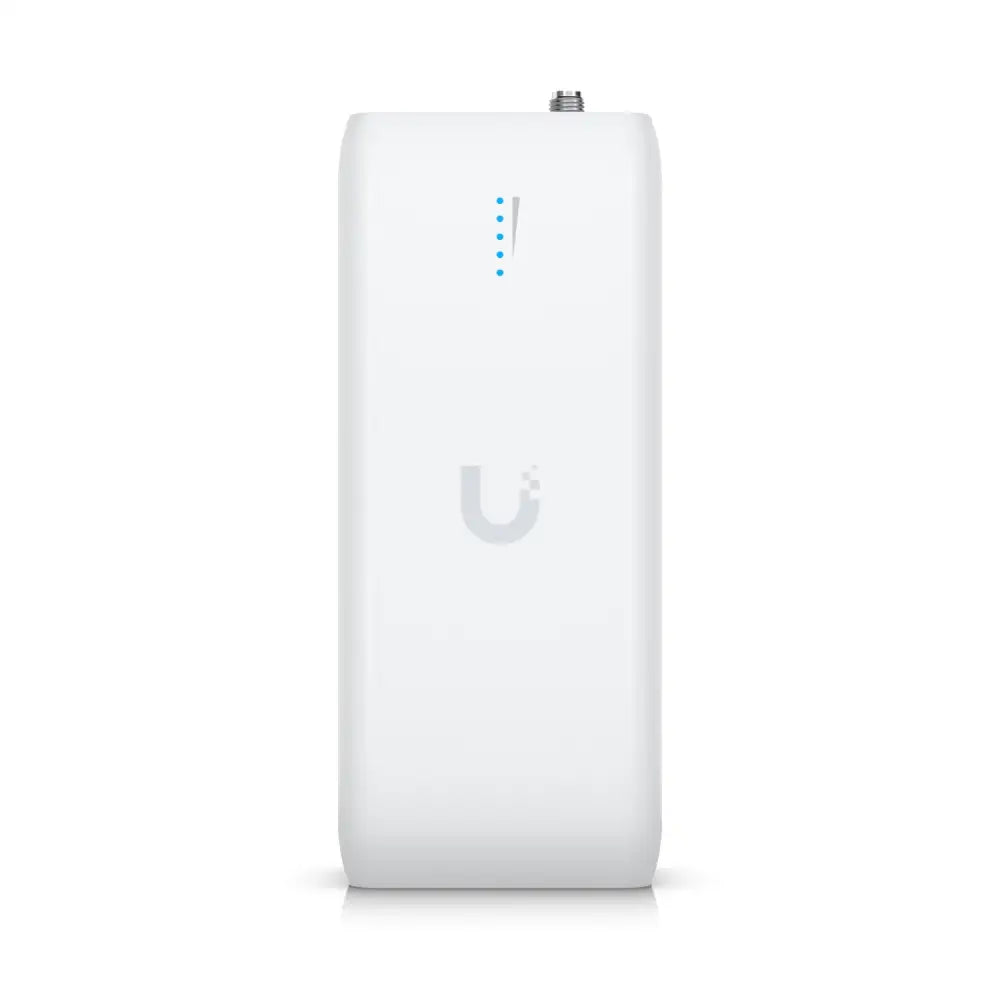

Device Bridge

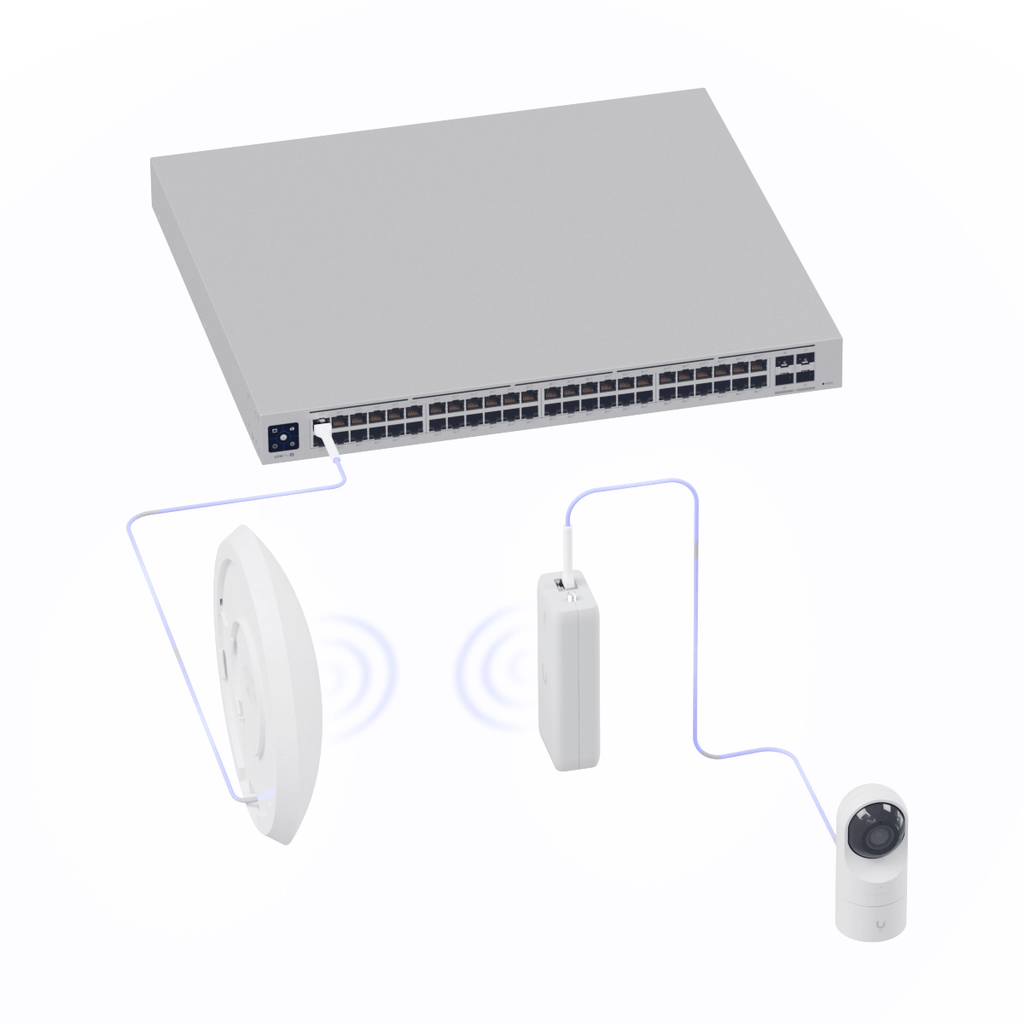

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
300 m (984 ft) Maximum Range
Up to 867 Mbps Throughput
5 GHz Radios
AC Power
Uplink: (1) GbENote. UniFi Consoles and APs must have the latest software updates installed.
Overview
Dimensions
130 x 55 x 34 mm
(5.1 x 2.2 x 1.3")
(5.1 x 2.2 x 1.3")
WiFi Standard
WiFi 5
Spatial Streams
2
Mounting Locations
Wall, table
Power Method
100—240V AC, 0.45A Max., 50/60 Hz
Performance
MIMO
5 GHz: 2 x 2
Max. Data Rate
5 GHz: 866.7 Mbps (BW80)
Antenna Gain
5 GHz
Internal antenna: 5 dBi
External omni antenna: 4 dB
Internal antenna: 5 dBi
External omni antenna: 4 dB
Max. TX Power
5 GHz: 21 dBm
Supported Data Rates
802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA2 AES (Always On)
Hardware
Max. Power Consumption
25W (AC input)
10W (Excluding PoE output)
10W (Excluding PoE output)
Supported Voltage Range
100—240V AC
Networking Interface
(1) GbE RJ45 port
Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna
(1) RP-SMA connector for external omni-antenna
Management
WiFi
Weight
200 g (7.1 oz)
Mount Material
Polycarbonate
Enclosure Material
Polycarbonate
Button
(1) Factory-reset
LEDs
(4) Blue: signal
(1) White/blue: indicator
(1) White/blue: indicator
Channel Bandwidth
20/40/80 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Operating Frequency
US/CA:
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide:
5150 - 5875 MHz
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide:
5150 - 5875 MHz
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
