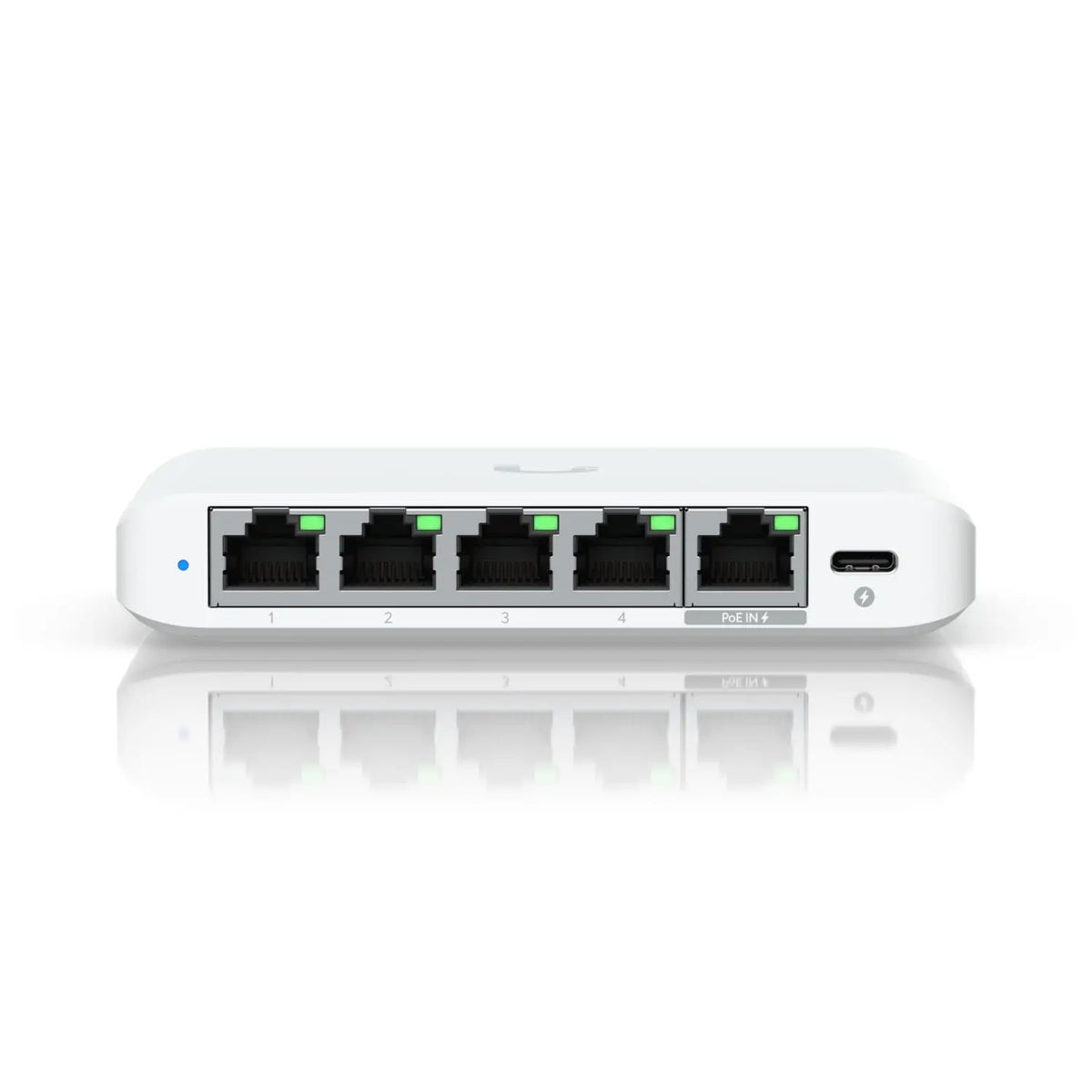

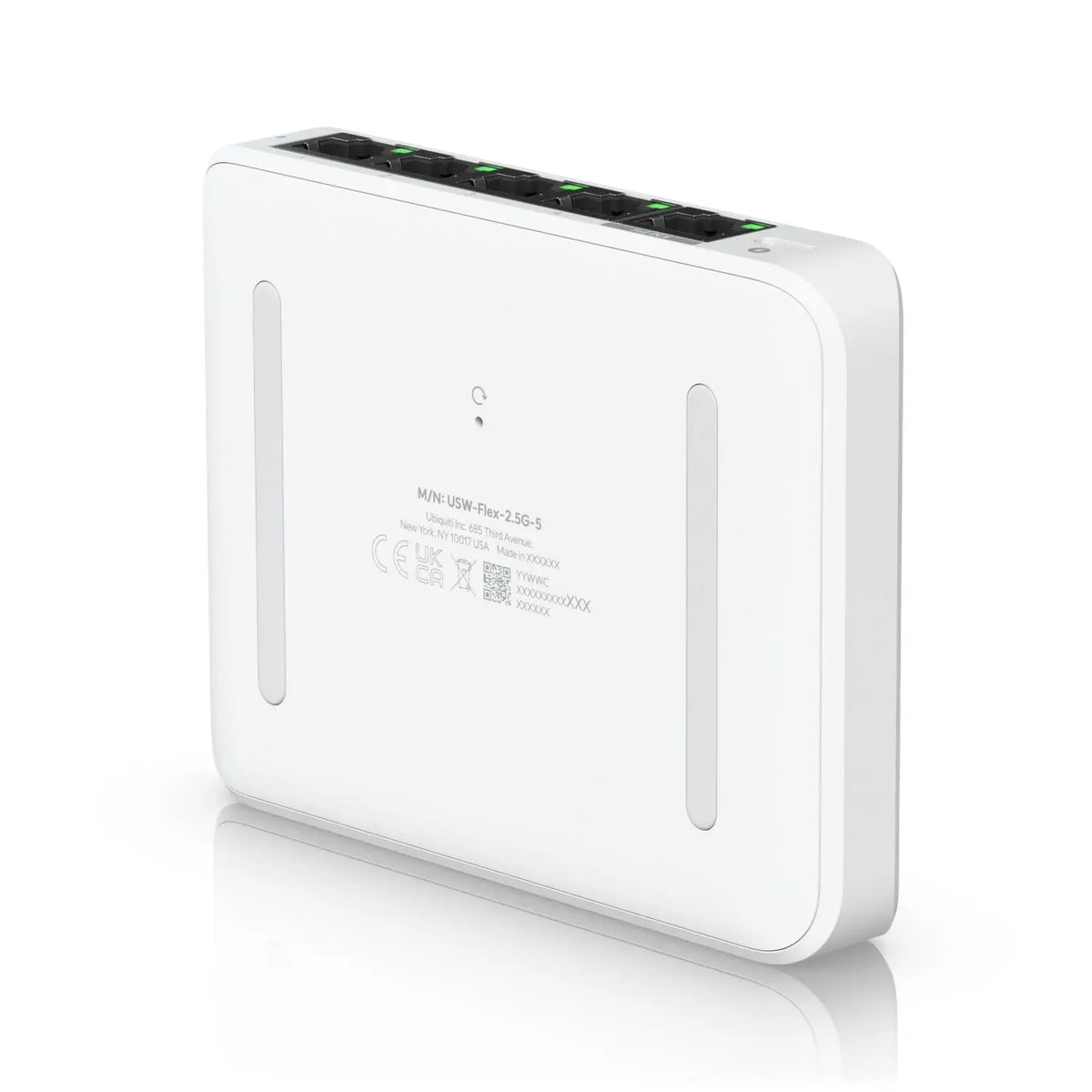

Ubiquiti Flex Mini 2.5G, (4) 2.5 GbE Ports, (1) 2.5 GbE PoE Input Port for Power,

Flex Mini 2.5G

Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.

(5) GbE RJ45 Ports

2.5 Gbps Downlink Speed

2.5 Gbps Uplink Speed

AC power or PoE input

Overview

Dimensions

117.1 x 90 x 21.2 mm
(4.6 x 3.5 x 0.8")

Port Layout

2.5 GbE RJ45: 5
(2.5G/1G/100M/10M)

Form Factor

Compact desktop

Performance

Switching Capacity

25 Gbps

Total Non-Blocking Throughput

12.5 Gbps

Forwarding Rate

19 Mpps

Supported VLANs

256

MAC Address Table Size

4,000

Layer 2 Features

STP & RSTP

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

Loop Protection

Yes

Hardware

Max. Power Consumption

5W (AC/DC input)
6.4W (PoE input)

Power Method

(1) USB Type-C, 5V DC, 1A
(1) PoE

Power Input Method

USB Input
PoE

Power Supply

AC/DC, external, 5W

Supported Voltage Range

4.8–5.2V DC/USB
44V–57V PoE

Management

Ethernet

Weight

206 g (7.3 oz)

Enclosure Material

Polycarbonate

Ambient Operating Temperature

-20 to 45° C (-4 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Software

Application Requirements

UniFi Network: Version 8.6.9 and later
