Description
Pro HD 24

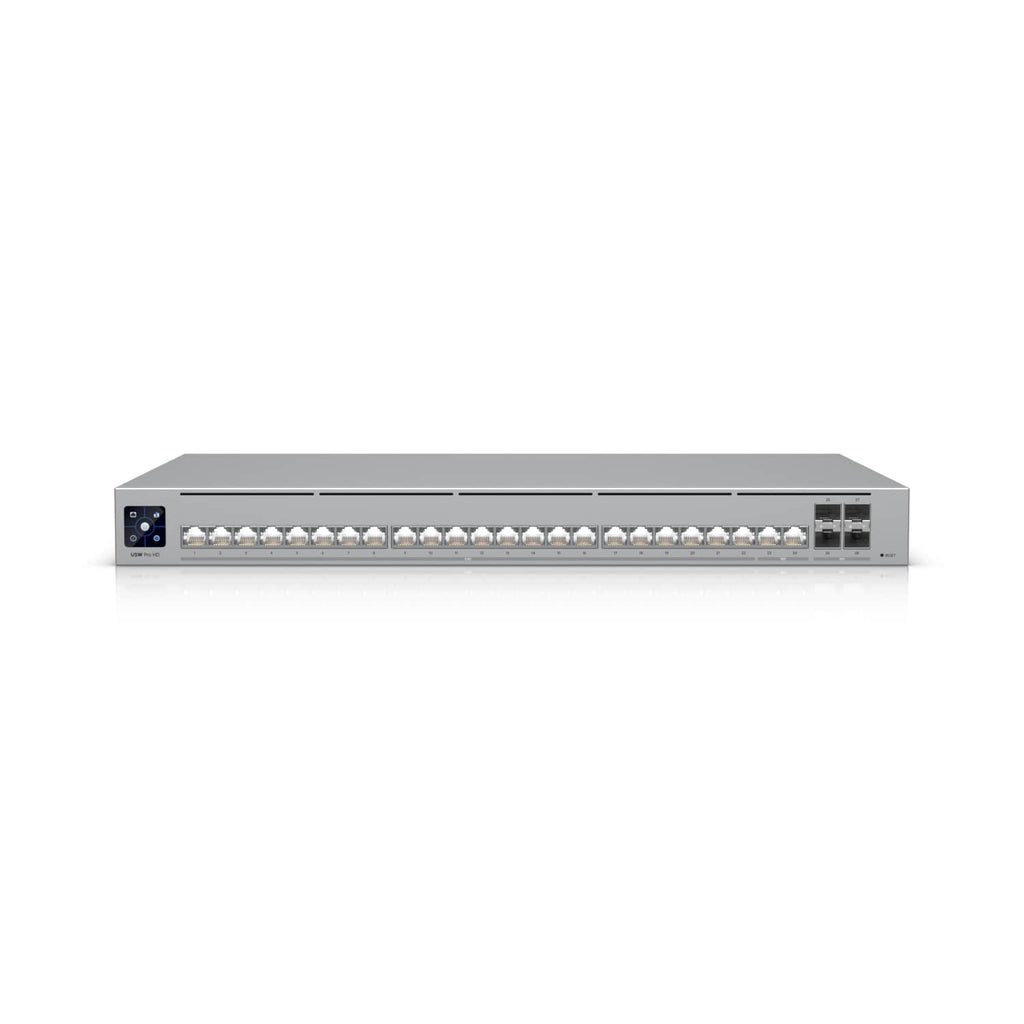

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
24 + 4 SFP+
Up to 10 Gbps Downlink Speed
10 Gbps Uplink Speed
Pro A/V Support
UniFi Power Backup readyOverview
Dimensions
442 x 285 x 44 mm
(17.4 x 11.2 x 1.7")
(17.4 x 11.2 x 1.7")
Port Layout
2.5 GbE RJ45:
22 (2.5G/1G/100M/10M)
10 GbE RJ45:
2 (10G/5G/2.5G/1G/100M)
10G SFP+:
4 (10G/1G)
22 (2.5G/1G/100M/10M)
10 GbE RJ45:
2 (10G/5G/2.5G/1G/100M)
10G SFP+:
4 (10G/1G)
Redundancy
DC Power Backup
* With UniFi RPS
Layer 3
Yes
Form Factor
Rack mount (1U)
Etherlighting™
Yes
Performance
Switching Capacity
230 Gbps
Total Non-Blocking Throughput
115 Gbps
Forwarding Rate
171.12 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries: 12,000
IPv4 Routes: 12,000
IPv4 Routes: 12,000
Packet Buffer Size
2 MB
Layer 3 Features
DHCP Server (Local Networks)
Yes
DHCP Relay
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
Layer 2 Features
LACP Port Aggregation
Yes
STP & RSTP
Yes
QoS (DSCP)
Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
Hardware
Max. Power Consumption
60W

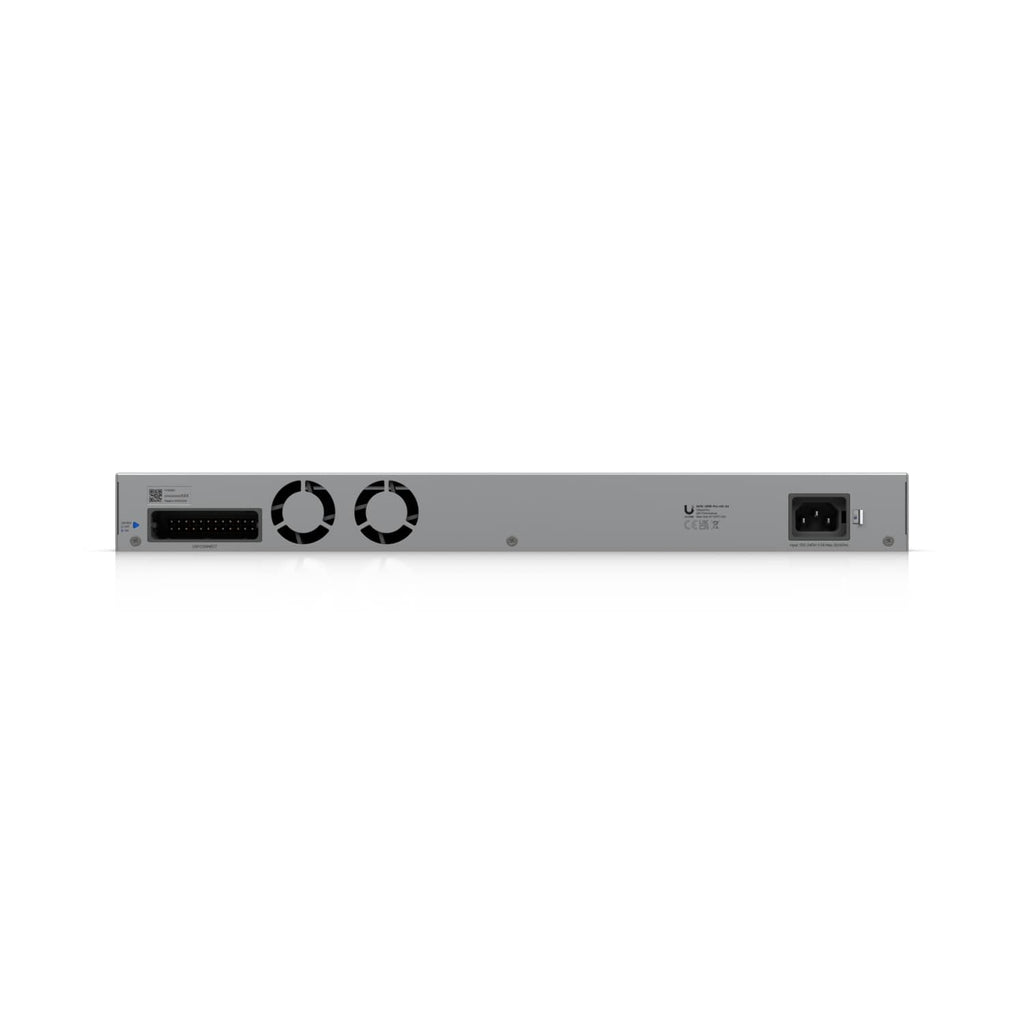

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
AR
Heat Dissipation (Excluding PoE Output)
102.36 BTU/hr
Weight
Without mounting brackets: 4.2 kg (9.2 lb)
With mounting brackets: 4.3 kg (9.4 lb)
With mounting brackets: 4.3 kg (9.4 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7–47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet: Yes
SFP+: Yes
SFP+: Yes
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
Version 9.0.114 and later
