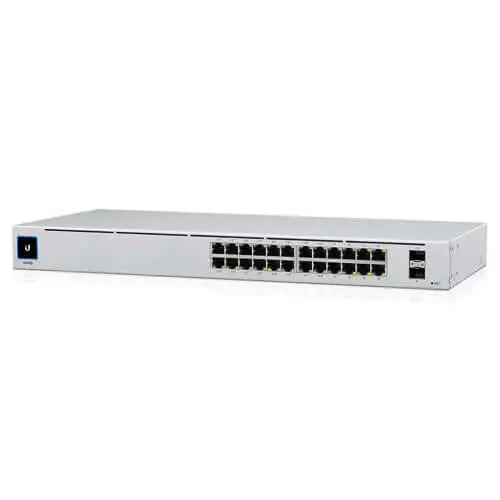

Ubiquiti UniFi 24 Port Managed Gigabit Switch, 16x PoE+ Ports, 8x Gigabit Ethernet Ports, 2xSFP - 95W - Touch Display - Fanless - GEN2
Roll over image to zoom in Click on image to zoom
Ubiquiti UniFi 24 Port Managed Gigabit Switch, 16x PoE+ Ports, 8x Gigabit Ethernet Ports, 2xSFP - 95W - Touch Display - Fanless - GEN2

Ubiquiti UniFi 24 Port Managed Gigabit Switch, 16x PoE+ Ports, 8x Gigabit Ethernet Ports, 2xSFP - 95W - Touch Display - Fanless - GEN2

UBIQUITI
Price:
$935.00

Description

Standard 24 PoE

A 24-port, Layer 2 PoE switch with a fanless cooling system.

24 Ports
1 Gbps Downlink Speed
1 Gbps Uplink Speed
PoE Output: Up to PoE+
95 W PoE Availability

Layer 2 PoE Switch

The USW-24-POE offers 24 Gigabit Ethernet ports, with 16 supporting 802.3af/at PoE+, providing up to 95W total PoE power. This setup is ideal for powering UniFi access points, cameras, and other PoE devices.

* Video for illustration purposes. 48 port version shown.

High Performance Switching Capacity

With a switching capacity of 52 Gbps and a forwarding rate of 39 Mpps, the USW-24-POE ensures smooth data transmission across all ports without bottlenecks.

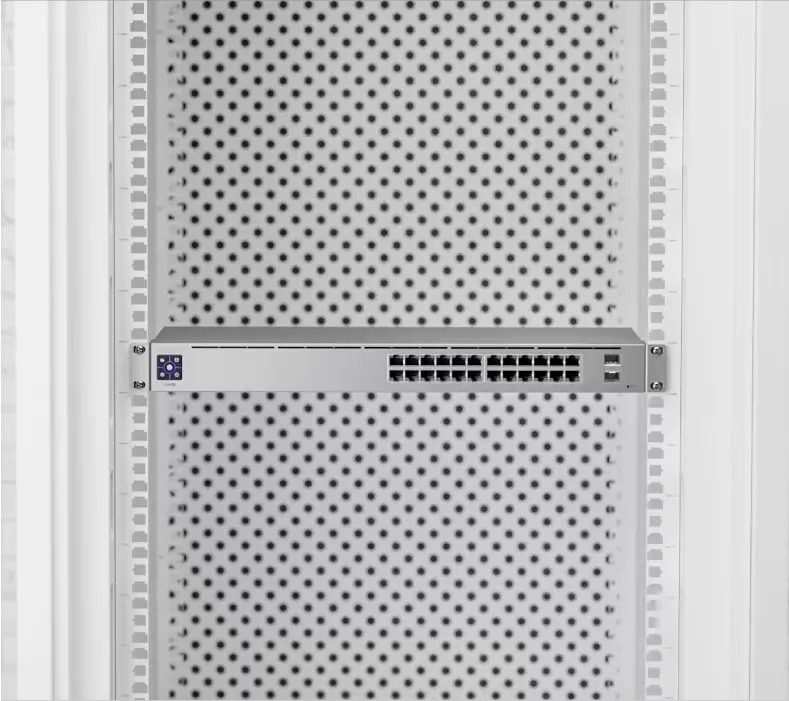

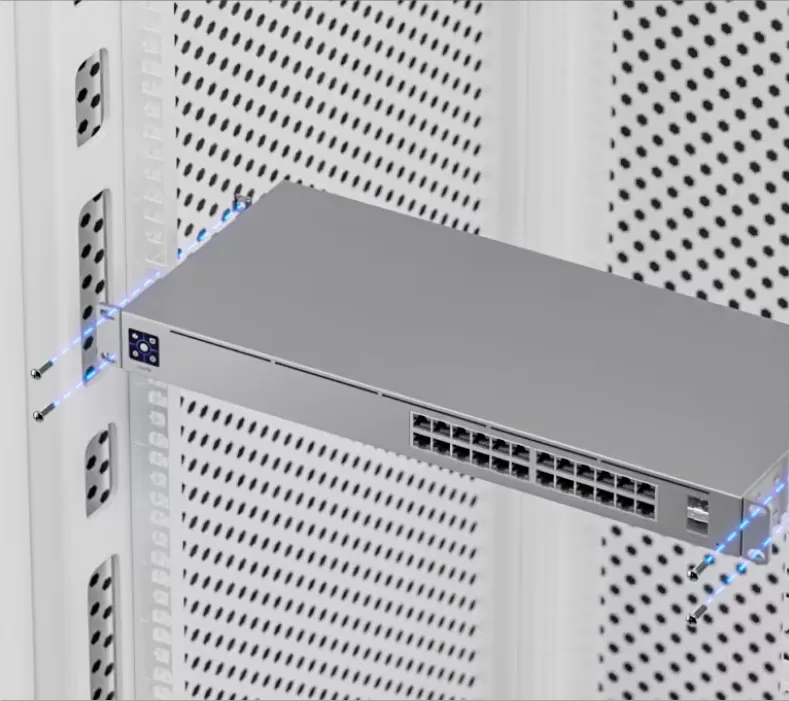

Compact 1U Rackmount Design
Compact 1U Rackmount Design

Measuring 442 x 200 x 44 mm, the USW-24-POE fits into a standard 1U rack space. It features a 1.3" touchscreen for real-time device monitoring and quick configuration access.

Network Management
Network Management

The switch supports VLANs, port aggregation, 802.1X authentication, and IGMP snooping, providing robust network segmentation and security. These features enable efficient traffic management and enhanced network control.

AR Management
AR Management

Easily manage and identify switch ports using the UniFi AR feature in the mobile app. This augmented reality interface provides a visual, intuitive way to monitor and troubleshoot network connections in real time.

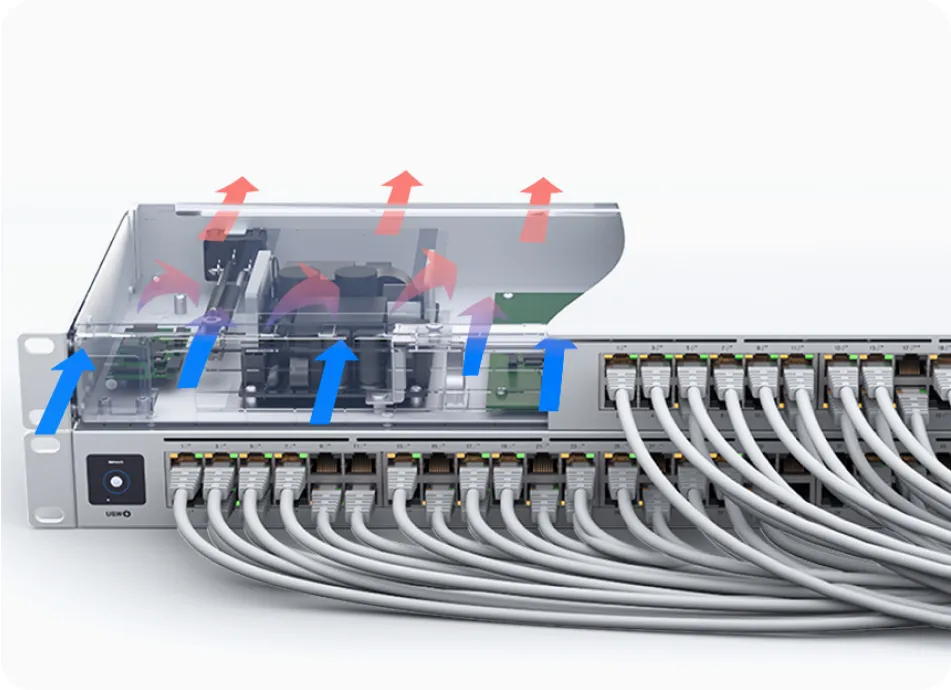

Silent Fanless Cooling
Silent Fanless Cooling

Designed with a passive cooling system, the USW-24-POE operates completely silently, making it ideal for noise-sensitive environments. The durable metal chassis also aids in effective heat dissipation without the need for active fans.

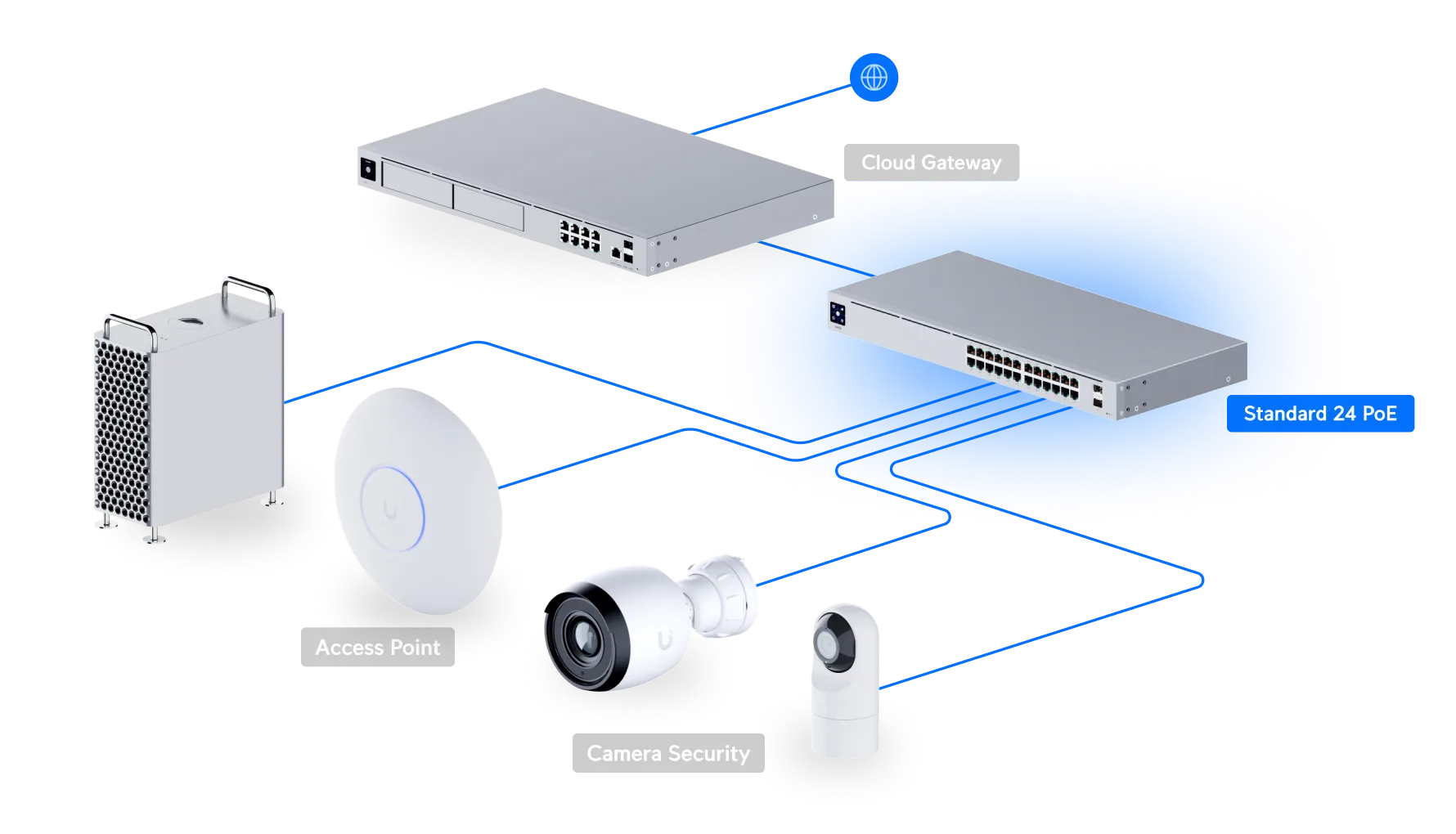

Deployment



Technical Specs
Overview
Dimensions
442 x 200 x 44 mm
(17.4 x 7.9 x 1.7")
Port Layout
1 GbE RJ45: 24 (16 PoE+) (1G/100M/10M)
1G SFP: 2
Max. PoE Output
Up to PoE+
Total PoE Availability
95W
Form Factor
Rack mount (1U)
Performance
Switching Capacity
52 Gbps
Total Non-Blocking Throughput
26 Gbps
Forwarding Rate
39 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Layer 2 Features
LACP Port Aggregation
Yes
STP & RSTP
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
Hardware
PoE Ports
PoE+: 16
Max. PoE Wattage per Port by PSE
PoE: 15.4W
PoE+: 32W
Max. Power Consumption
25W (Excluding PoE output)
120W (Including PoE output)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 120W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Heat Dissipation (Excluding PoE Output)
85.3 BTU/hr
Weight
Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7–47.2")
LCM Display
1.3" touchscreen
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
Yes
