Description
-
Dream Wall

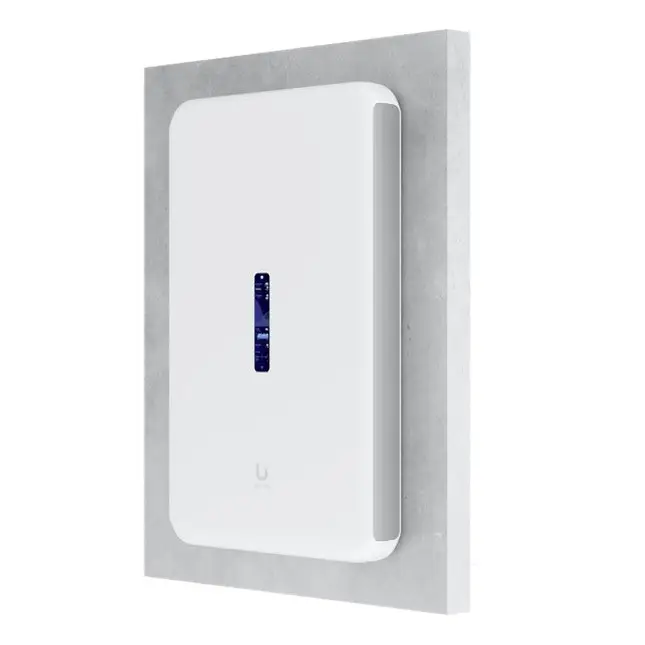

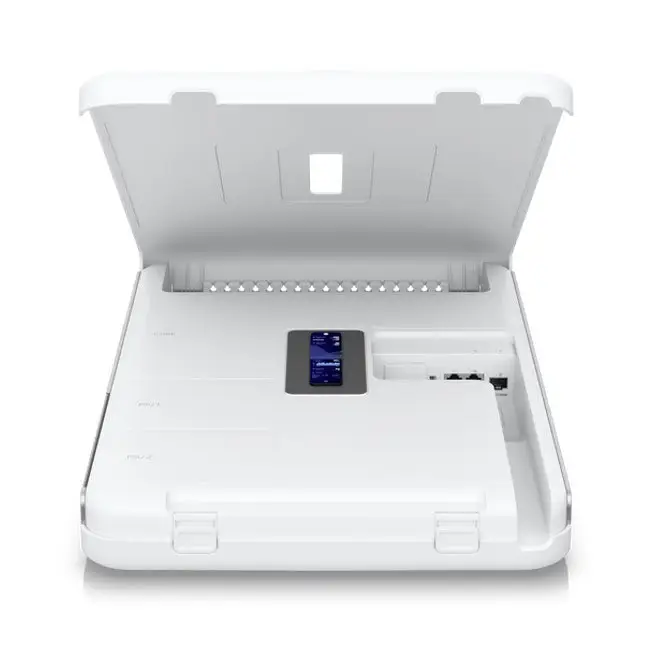

Wall-mounted 10G Cloud Gateway with integrated WiFi 6, high-power PoE switching, and full UniFi application support.
Built-in WiFi 6 AP
Includes full UniFi application suite for device management
3.5+ Gbps routing with IDS/IPS

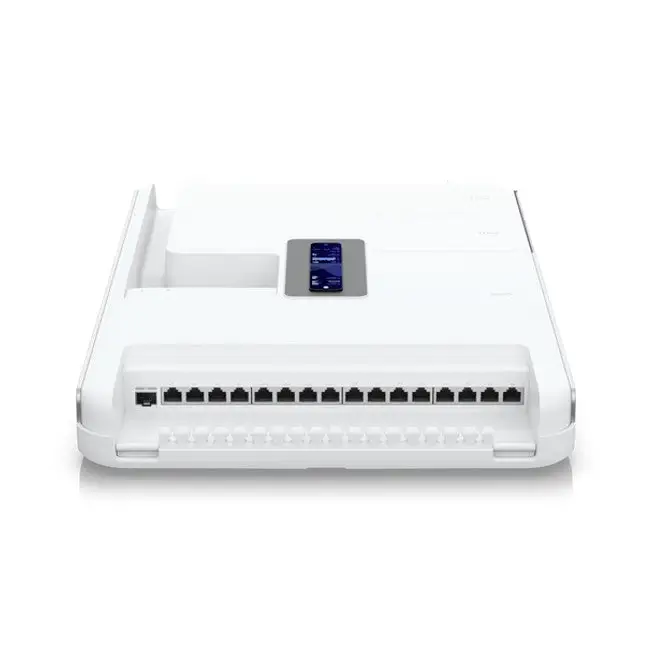

(1) 10G SFP+*, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports

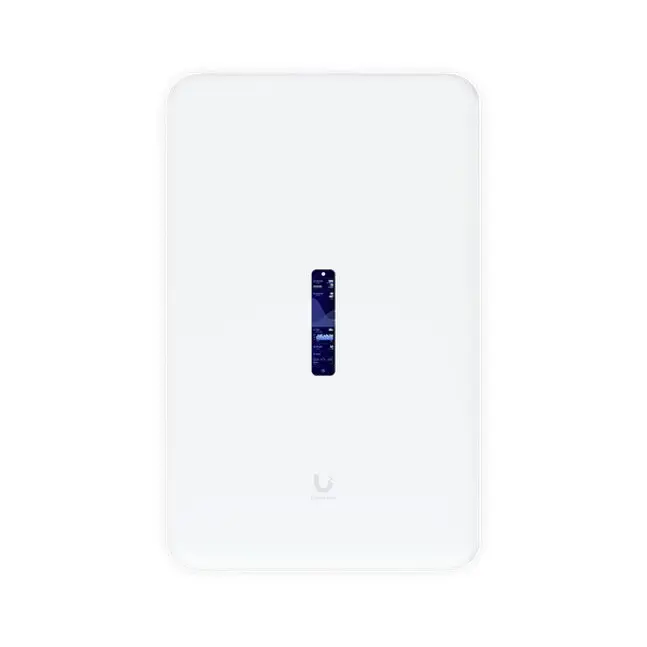

4.7" touchscreen for management
Integrated 128 GB SSD & pre-installed 512 GB microSD card*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Mechanical
Dimensions
549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
Weight
8.6 kg (19 lb)
Enclosure material
Polycarbonate, galvanised steel, aluminium alloy
Mount material
Stainless steel
Hardware
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory
4 GB DDR4
On-board storage
16 GB eMMC
Integrated storage
128 GB SSD
Expansion slot
Micro SD memory card*
*Requires a memory card with at least 128 GB of storage.
Management interface
Ethernet, Bluetooth, WiFi
Networking interface
LAN:
(17) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
(17) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
PoE interface
(4) PoE (Pair A 1, 2+; 3, 6-)
(4) PoE+ (Pair A 1, 2+; 3, 6-)
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
(4) PoE+ (Pair A 1, 2+; 3, 6-)
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power method
Universal AC input 100—240V AC, 7A Max., 50/60Hz
Power supply
(2) Hot-Swappable AC/DC 550W PSU*
*Comes with (1) pre-installed PSU.
Max. power consumption
532W (Including PoE output)
PoE budget
420W
Max. PoE wattage per port
PoE: 15.4W
PoE+: 30W
PoE++: 60W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode
PoE: 44—57V
PoE+/PoE++: 50—57V
PoE+/PoE++: 50—57V
Max. TX power
2.4 GHz: 23 dBm
5 GHz: 26 dBm
5 GHz: 26 dBm
MIMO
2.4 GHz: 2 x 2
5 GHz: 4 x 4
5 GHz: 4 x 4
Throughput rate
2.4 GHz: 300 Mbps
5 GHz: 2.4 Gbps
5 GHz: 2.4 Gbps
Antenna gain
2.4 GHz: 5.9 dBi
5 GHz: 6 dBi
5 GHz: 6 dBi
ESD/EMP protection
Air: ± 8kV, contact: ± 4kV
LCM display
(1) 4.7" touchscreen
Button
Factory reset
Mounting
Wall mount (included)
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
Licence-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customisable DHCP server
IGMP proxy
IPv6 ISP support
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customisable DHCP server
IGMP proxy
IPv6 ISP support
Software
WiFi standards
802.11a/b/g/n/ac/ax
Wireless security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
300+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
