Description

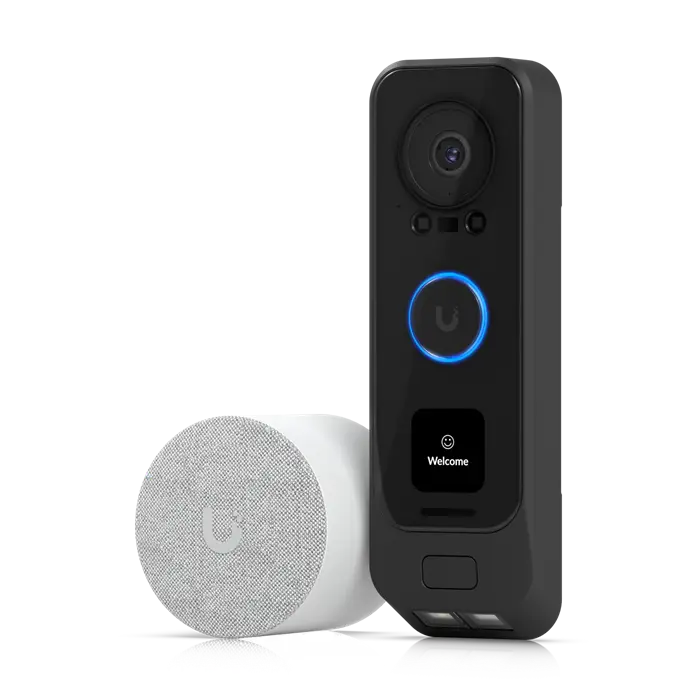

G4 Doorbell Pro PoE Kit
Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
Improved HDR and low-light performance
Programmable welcome display and secondary package-detection camera
AI event detections

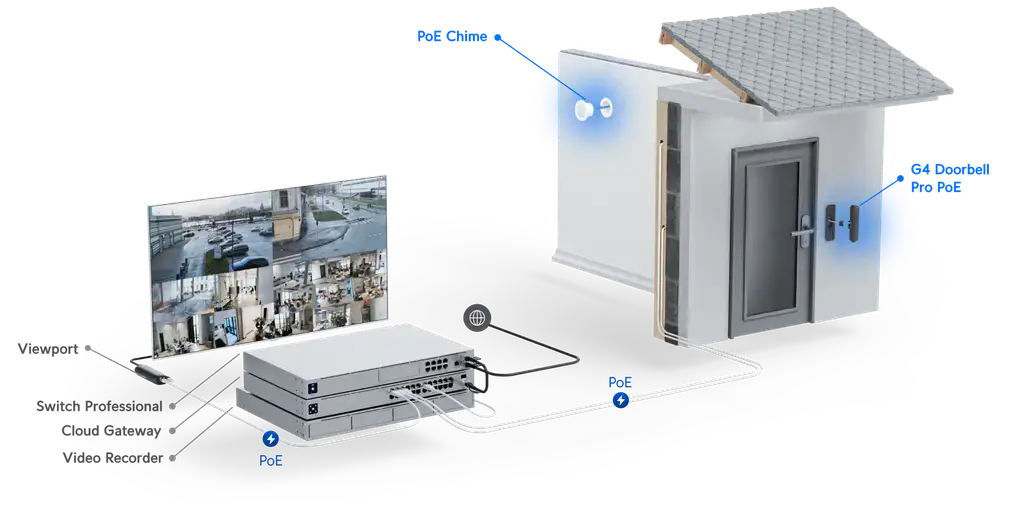

Connect and power using PoE
Integrated 2-way audio
Includes PoE Chime
Weather-resistant (outdoor covered)Mechanical
Dimensions
UVC-G4 Doorbell Pro
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")

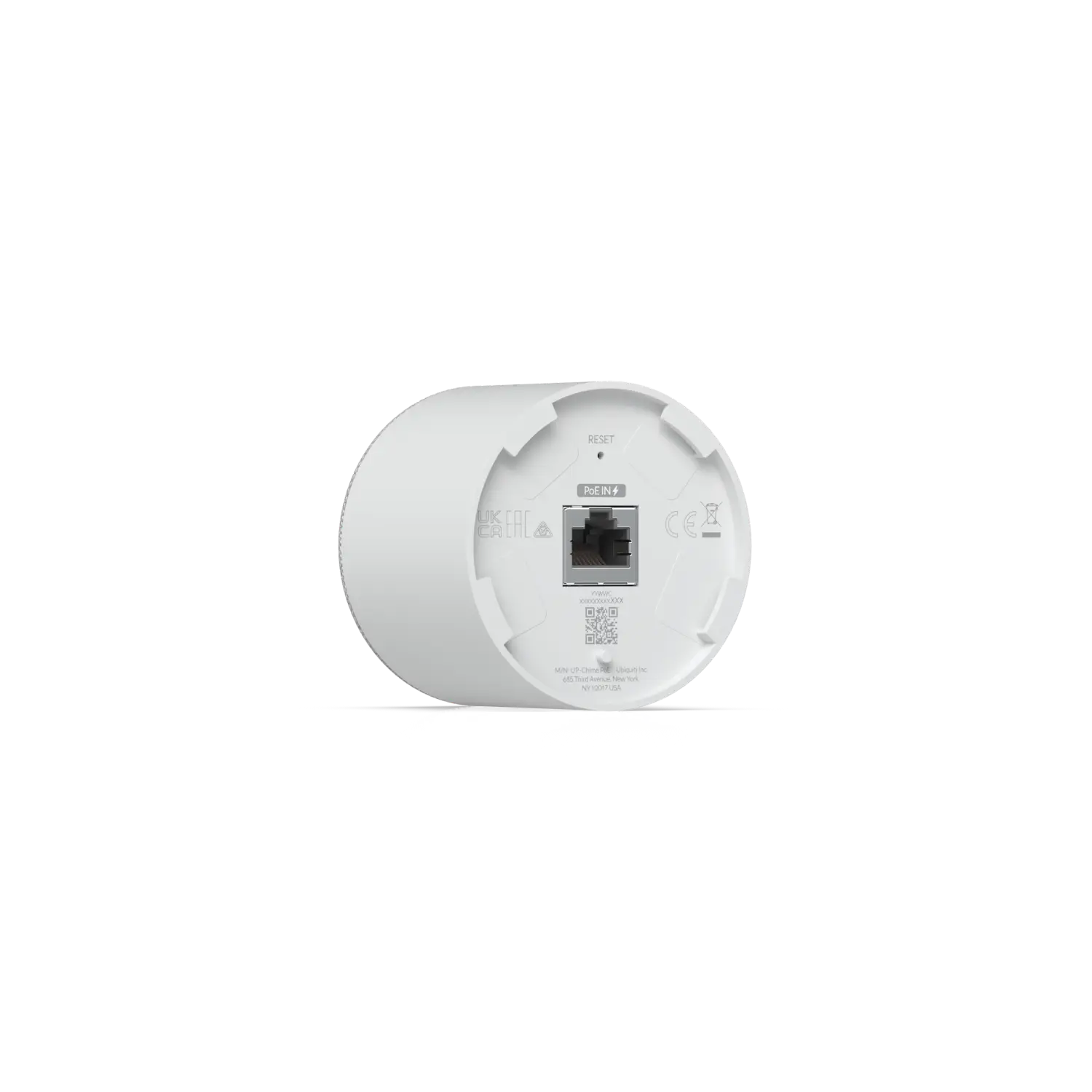

UP-Chime PoE
Device: Ø62 x 54 mm (Ø2.5 x 2.1")
In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")
On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")
UP-Chime PoE
Device: Ø62 x 54 mm (Ø2.5 x 2.1")
In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")
On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
Weight
UVC-G4 Doorbell Pro
Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
On-wall mount: 53 g (1.9 oz)
UP-Chime PoE
Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
On-wall mount: 28 g (1 oz)
Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
On-wall mount: 53 g (1.9 oz)
UP-Chime PoE
Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
On-wall mount: 28 g (1 oz)
Enclosure material
Aluminium alloy, polycarbonate
Mount material
Wall mount: aluminium alloy
Wedge: polycarbonate
On-wall mount: polycarbonate
Chime mount: polycarbonate, zinc alloy
Wedge: polycarbonate
On-wall mount: polycarbonate
Chime mount: polycarbonate, zinc alloy
Weatherproofing
IPX4 (UVC-G4 Doorbell Pro)
Colour
Black
Optics
Sensor
Main camera: 5MP CMOS
Package camera: 8MP CMOS
Package camera: 8MP CMOS
Lens
Fixed focal length
View angle
Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Max. frame rate
30 FPS
System
Processor
Quad-core Arm® Cortex®-A53 based chip
Networking interface
UVC-G4 Doorbell Pro: GbE RJ45 port
UP-Chime PoE: 10/100 MbE port
UP-Chime PoE: 10/100 MbE port
Power method
PoE
Supported voltage range
UVC-G4 Doorbell Pro: 37-57V DC
UP-Chime PoE: 44-57V DC
UP-Chime PoE: 44-57V DC
Max. power consumption
UVC-G4 Doorbell Pro: 7W
UP-Chime PoE: 3.5W
UP-Chime PoE: 3.5W
LED
Link/activity
Buttons
(1) Ring button
(1) Factory reset
(1) Factory reset
Ambient operating temperature
UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F)
UP-Chime PoE: 0 to 40° C (32 to 104° F)
UP-Chime PoE: 0 to 40° C (32 to 104° F)
Ambient operating humidity
UVC-G4 Doorbell Pro: 0 to 90% noncondensing
UP-Chime PoE: 10 to 90% noncondensing
UP-Chime PoE: 10 to 90% noncondensing
Certifications
CE, FCC, IC
Audio
Microphone
Yes (Can be disabled for the Doorbell)
Speaker
Yes
Buzzer
Yes (UP-Chime PoE)
Software
UniFi OS application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
