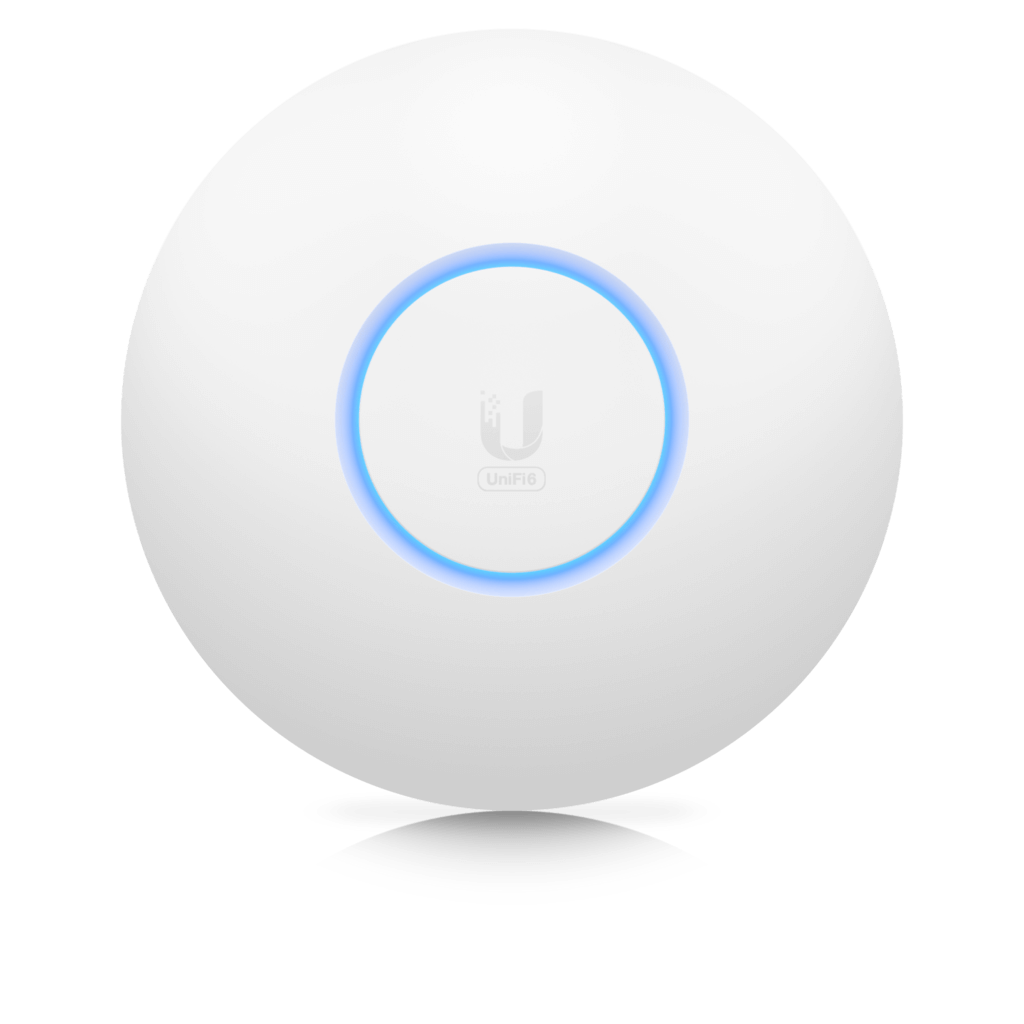

Ubiquiti UniFi Wi-Fi 6 Lite Dual Band Access Point 2x2 High-Efficiency Wi-Fi 6, 2.4GHz @ 300Mbps & 5GHz @ 1.2Gbps No PoE Injector Included Unboxed
Roll over image to zoom in Click on image to zoom
Ubiquiti UniFi Wi-Fi 6 Lite Dual Band Access Point 2x2 High-Efficiency Wi-Fi 6, 2.4GHz @ 300Mbps & 5GHz @ 1.2Gbps No PoE Injector Included Unboxed

Ubiquiti U7 Lite,Compact, Ceiling-mounted WiFi 7 AP, 4 Spatial Streams,2.5 GbE Uplink,115 m² Coverage,200+ Connected Devices,Power via POE

UBIQUITI
Price:
$249.00

Description

  • U7 Lite

    Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

    WiFi 7
    4 spatial streams
    115 m² (1,250 ft²) coverage
    200+ connected devices
    Powered using PoE
    2.5 GbE uplink

    Technical Specs
    Overview
    Dimensions
    Ø171.5 x 33 mm (Ø6.8 x 1.3")
    WiFi Standard
    WiFi 7
    Spatial Streams
    4
    Coverage Area
    115 m² (1,250 ft²)
    Max. Client Count
    200+
    Uplink
    2.5 GbE
    Mounting
    Ceiling, Wall (Lite Mount Included)
    Power Method
    PoE
    Performance
    MIMO
    5 GHz: 2 x 2 (DL/UL MU-MIMO)
    2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
    Max. Data Rate
    5 GHz: 4.3 Gbps (BW240)
    2.4 GHz: 688 Mbps (BW40)
    Antenna Gain
    5 GHz: 5 dBi
    2.4 GHz: 4 dBi
    Max. TX Power
    5 GHz: 24 dBm
    2.4 GHz: 23 dBm
    Max. BSSIDs
    8 per Radio
    Supported Data Rates
    802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
    802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    Features
    Wireless Meshing
    Yes
    Band Steering
    Yes
    802.11v BSS Transition Management
    Yes
    802.11r Fast Roaming
    Yes
    802.11k Radio Resource Management (RRM)
    Yes
    Advanced Radio Management
    Yes
    Passpoint (Hotspot 2.0)
    Yes
    Captive Hotspot Portal
    Custom Branding Landing Page: Yes
    Voucher Authentication: Yes
    Payment-Based Authentication: Yes
    External Portal Server Support: Yes
    Password Authentication: Yes
    Guest Network Isolation: Yes
    Private Pre-Shared Key (PPSK)
    Yes
    WiFi Speed Limiting
    Yes
    Client Device Isolation
    Yes
    WiFi Schedules
    Yes
    RADIUS over TLS (RadSec)
    Yes
    Dynamic RADIUS-assigned VLAN
    Yes
    Hardware
    Max. Power Consumption
    13W
    Supported Voltage Range
    42.5—57V DC
    Networking Interface
    (1) 2.5 GbE RJ45 port
    Weight
    313 g (11 oz)
    Management
    Ethernet
    Enclosure Material
    UV-stabilised polycarbonate
    Mount Material
    UV-stabilised polycarbonate, galvanised steel (SGCC)
    LEDs
    System: White/Blue
    Channel Bandwidth
    HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
    Certifications
    CE, FCC, IC
    NDAA Compliant
    Yes
    Ambient Operating Temperature
    -30 to 40° C (-22 to 104° F)
    Ambient Operating Humidity
    5 to 95% noncondensing
    Software
    Application Requirements

    UniFi Network
    Version 9.0.114 and later
    UniFi OS
    iOS™ Version 10.20.2 and later
    Android™ Version 10.21.7 and later
