Description

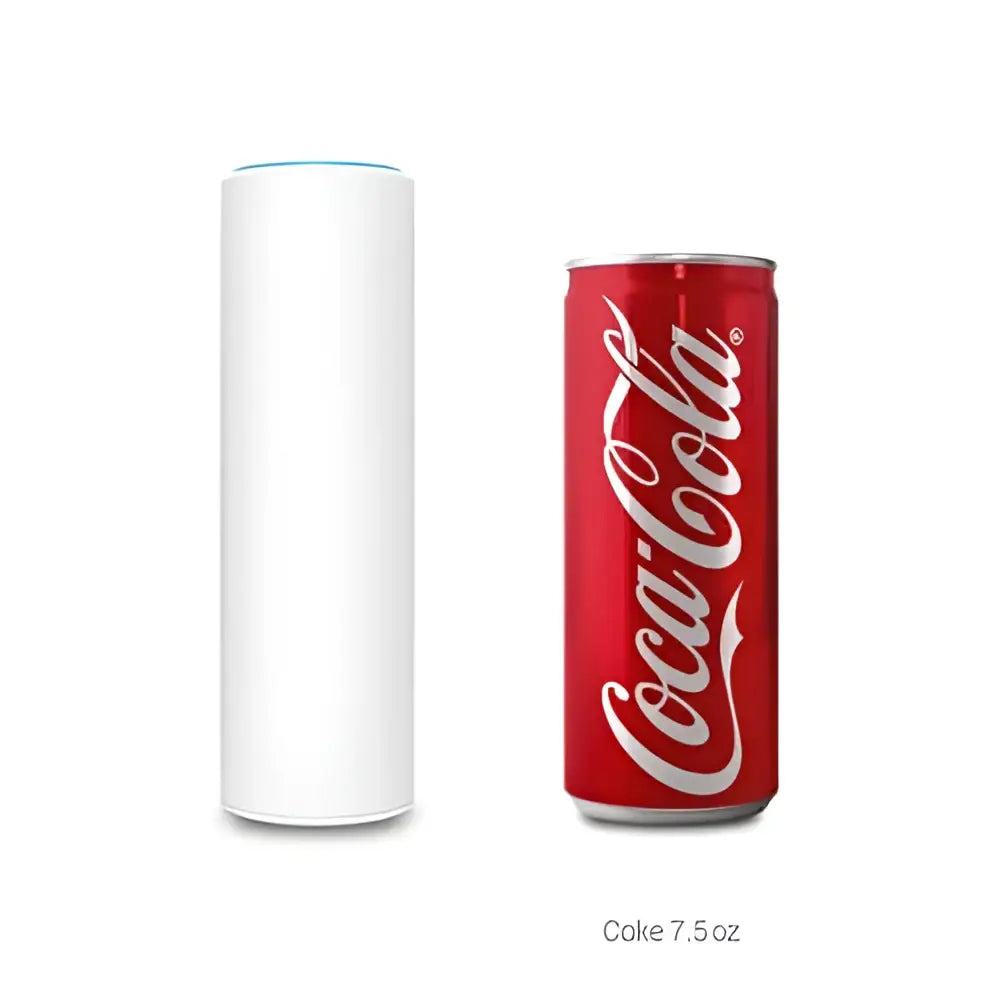

Ø48.5 x 159.5 mm
400 g
Plastic, Aluminium
Plastic
IPX5
Ethernet
Bluetooth
(1) GbE RJ45 port
Factory Reset
White/Blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
802.3af PoE
UniFi PoE Switch

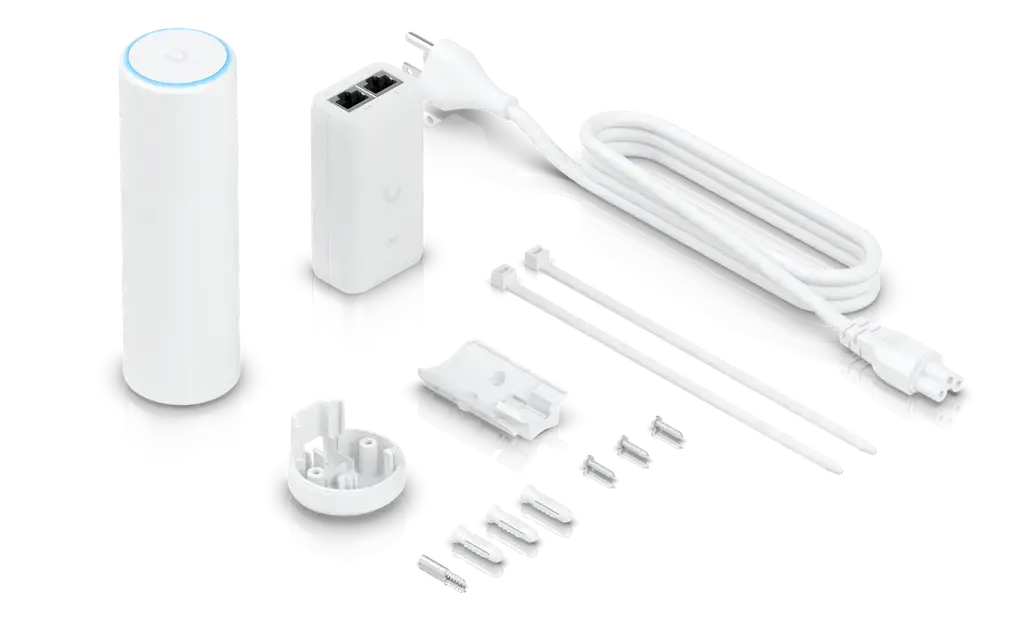

48V, 0.32A PoE adapter (included)
44 to 57VDC
11.4W
2.4 GHz - 22 dBm
5 GHz - 26 dBm
2.4 GHz - 2 x 2 (UL MU-MIMO)
5 GHz - 4 x 4 (DL/UL MU-MIMO)
2.4 GHz - 573.5 Mbps
5 GHz - 4.8 Gbps
2.4 GHz - 3 dBi
5 GHz - 5 dBi
Wall, Desktop, Pole mount (Included)
Ceiling mount (Optional)
-30 to 60° C
5 - 95% Noncondensing
CE, FCC, IC
802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
8 per Radio
802.1Q
Per-User Rate Limiting
Supported
300+
Yes*
*Supported with upcoming firmware versions
6, 9, 12, 18, 24, 36, 48, 54 Mbps
1, 2, 5.5, 11 Mbps
6, 9, 12, 18, 24, 36, 48, 54 Mbps
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
